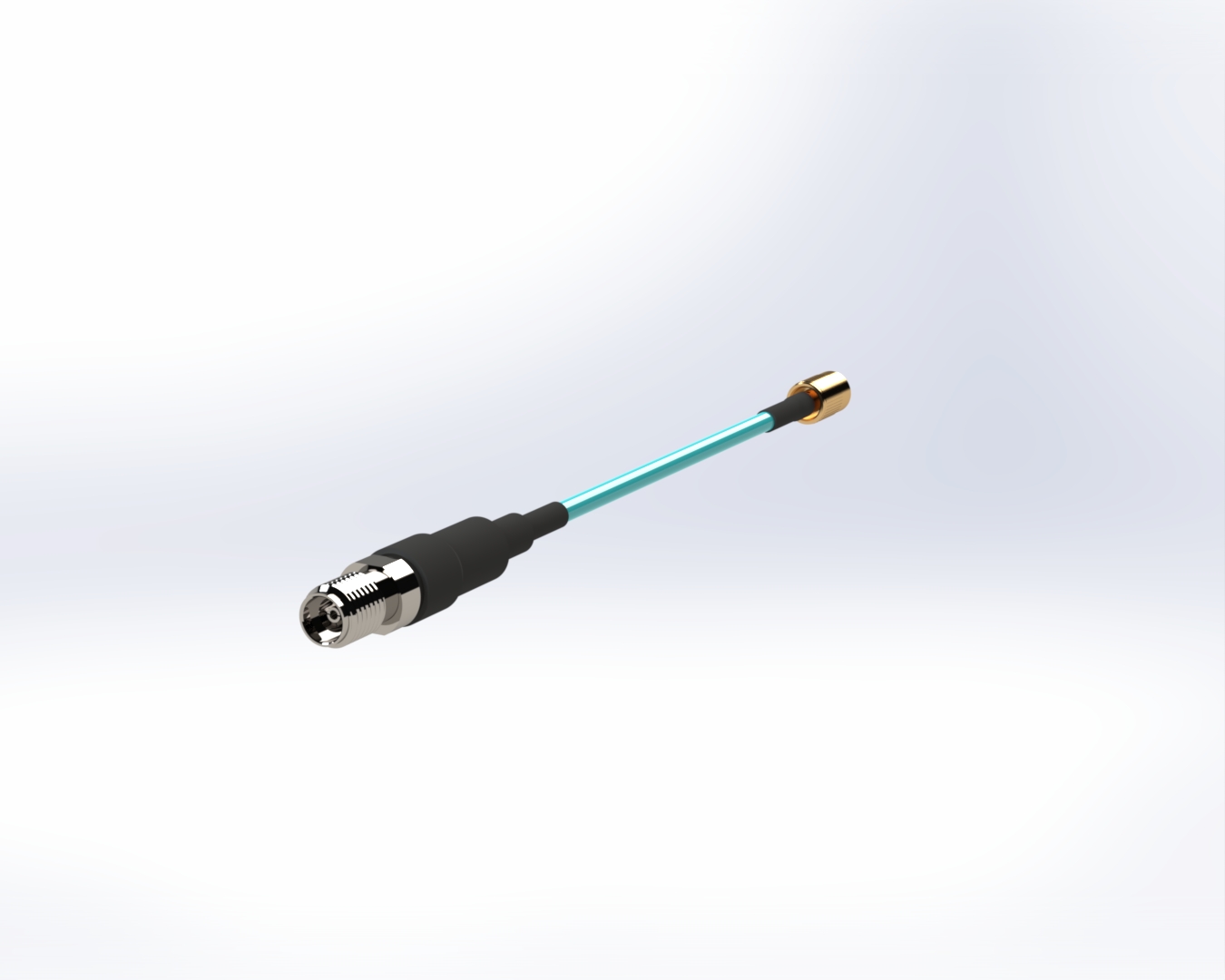

0.78 Assembly, SSMP Female to 3.5mm Female, 31cm, 4pS

CoreHC 0.78 Assembly, SSMP Female to 3.5mm Female, 31cm, 4pS
SKU: TM7SSSTS5FS031C
CoreHC 0.78 Assembly, SSMP Female to 3.5mm Female, 31cm, 4pS
Distributor Quantity Buy
Contact Us
Products specifications
Attribute name Attribute value
Category Cable Assembly, Coaxial Cables (RF)
Packaging Bag
Contact Termination Compression
Number of Ports 2
Housing Finish Gold
RF Connector Specifications
Impedance 50 ohms
Mounting Style Free Hanging (In-Line)
Max Frequency 50 GHz
Center Contact Material BeCu
Body Material N/A
Center Contact Plating Gold
Dielectric Material PTFE
Voltage N/A
Mating Cycles 1000 cycles min
Insertion Loss N/A
Operating Temperature -65°C to +125°C
T & M Specifications
Series 3.5 mm
Connector Style SSMP ST to 3.5 mm
Connector Type N/A
Shield Termination Threaded
Features Field Replicable, Compliant Mount to PCB
RF Products
Gender Female to Female
*
*
*
