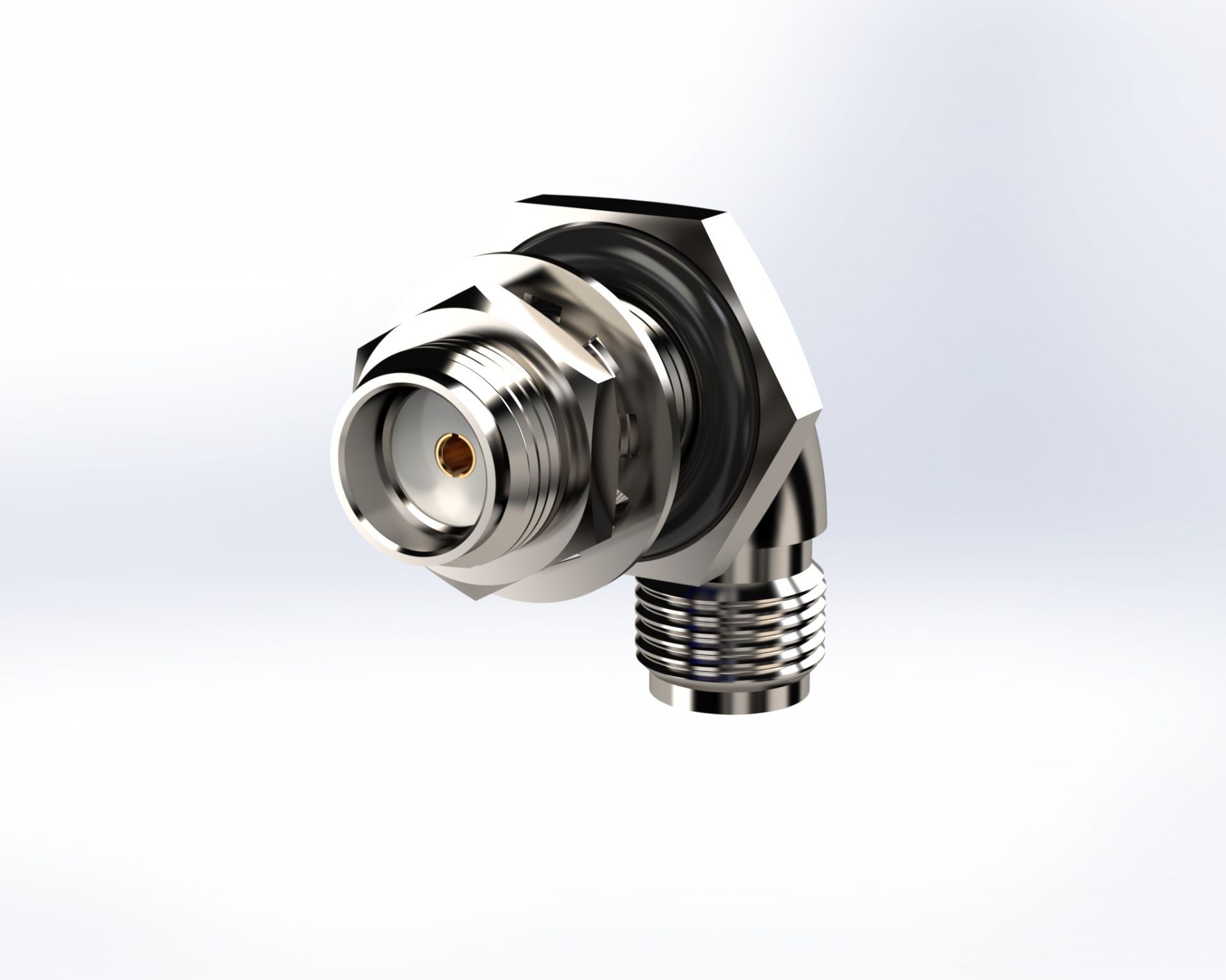

SMA Female to SMA Female Bulkhead, Radius Right Angle

SKU: 5135SF
Distributor Quantity Buy
Contact Us
Products specifications
Attribute name Attribute value
Frequency 18 GHz
Insertion Loss .03 √f(GHz)
Operating Temperature -65°C to +165°C
Impedance 50 ohms
Gender Female
Body Orientation Right Angle
RF Series SMA
RF Connector Specifications
Center Contact Plating Gold
Body Material 304 SST
Mating Cycles 500 Cycles
Voltage 335 Vrms max @ sea level
RF Adapter Specifications
Hermetic No
Body Plating Passivate
*
*
*
