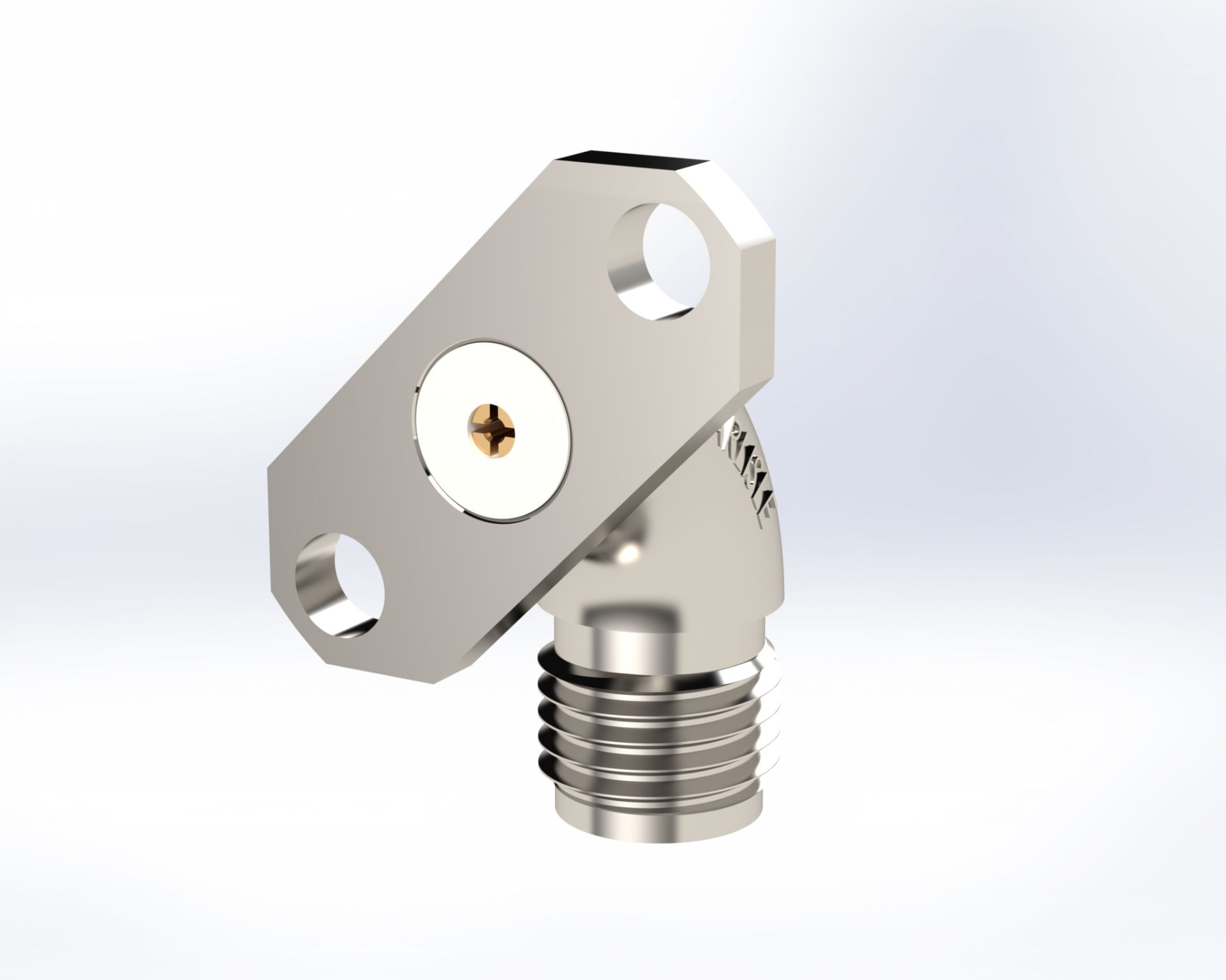

SMA Female Radius Right Angle, 45 Degree (Right), 2-HOLE, Field Replaceable

The SMA Female Jack from Amphenol CDI is engineered for reliability and precision in high-frequency signal transmission. Ideal for aerospace, defense, and telecommunications, this connector ensures consistent performance in demanding environments.
Distributor Quantity Buy
SKU: 5660-5CCSF
Products specifications
Attribute name Attribute value
Contact Termination Field Rep.
Housing Finish Passivate
RF Connector Specifications
Connector Series SMA
Body Style Swept Right Angle
Impedance 50 ohms
Mounting Style 2 Hole PNL.
Detent N/A
Gender Female
Hermetic No
Body Plating Passivate
Termination Field Rep.
Cable Termination N/A
Interface Type N/A
Center Contact Plating Gold
Dielectric Material PTFE Teflon
Center Contact Material BeCu
Operating Temperature -65°C to +150°C
Voltage 335 Vrms max @ sea level
Mating Cycles 500 cycles min
Insertion Loss .08 √f(GHz)
Max Frequency 18 GHz
Body Material 304L SST
*
*
*
