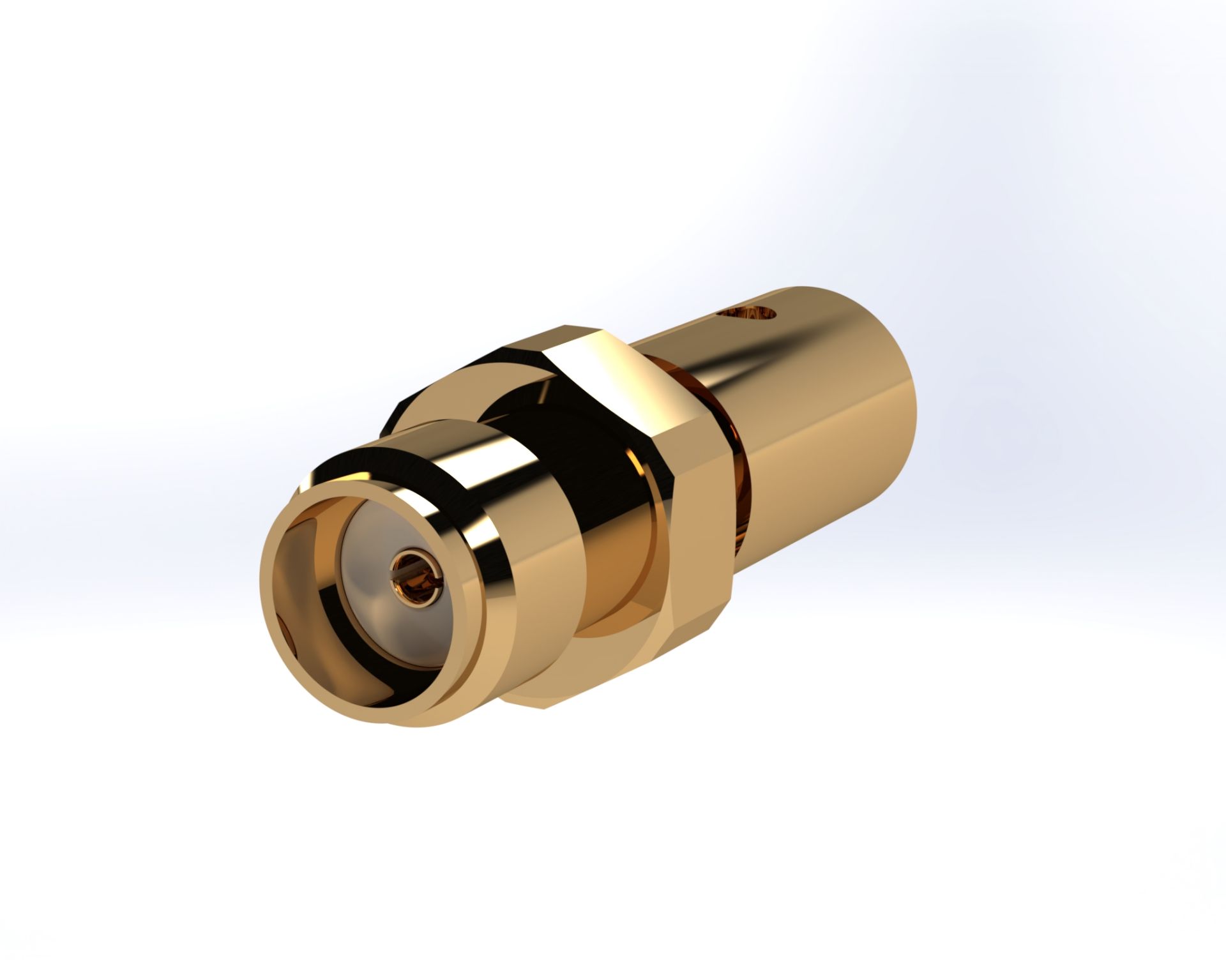

SMA Female Straight Crimp for RG Flex Cable

The SMA Female Straight Crimp for RG Flex Cable from Amphenol CDI is engineered for reliability and precision in high-frequency signal transmission. Ideal for aerospace, defense, and telecommunications, this connector ensures consistent performance in demanding environments.

SKU: 5720-1

Distributor	Quantity	Buy

Specifications
Contact Us

Products specifications

Attribute name	Attribute value
Contact Termination	COAX
Housing Finish	Gold
RF Connector Specifications
Connector Series	SMA
Body Style	Straight
Impedance	50 ohms
Mounting Style	N/A
Detent	N/A
Gender	Female
Hermetic	No
Body Plating	Gold
Termination	Field Rep.
Cable Termination	RG FLEX
Interface Type	N/A
Center Contact Plating	Gold
Dielectric Material	PTFE
Center Contact Material	BeCu
Operating Temperature	-65°C to +165°C
Voltage	250 Vrms max @ sea level
Mating Cycles	500 cycles min
Insertion Loss	.06 √f(GHz)
Max Frequency	Per Cable Per MIL-C-17
Body Material	303 SST
