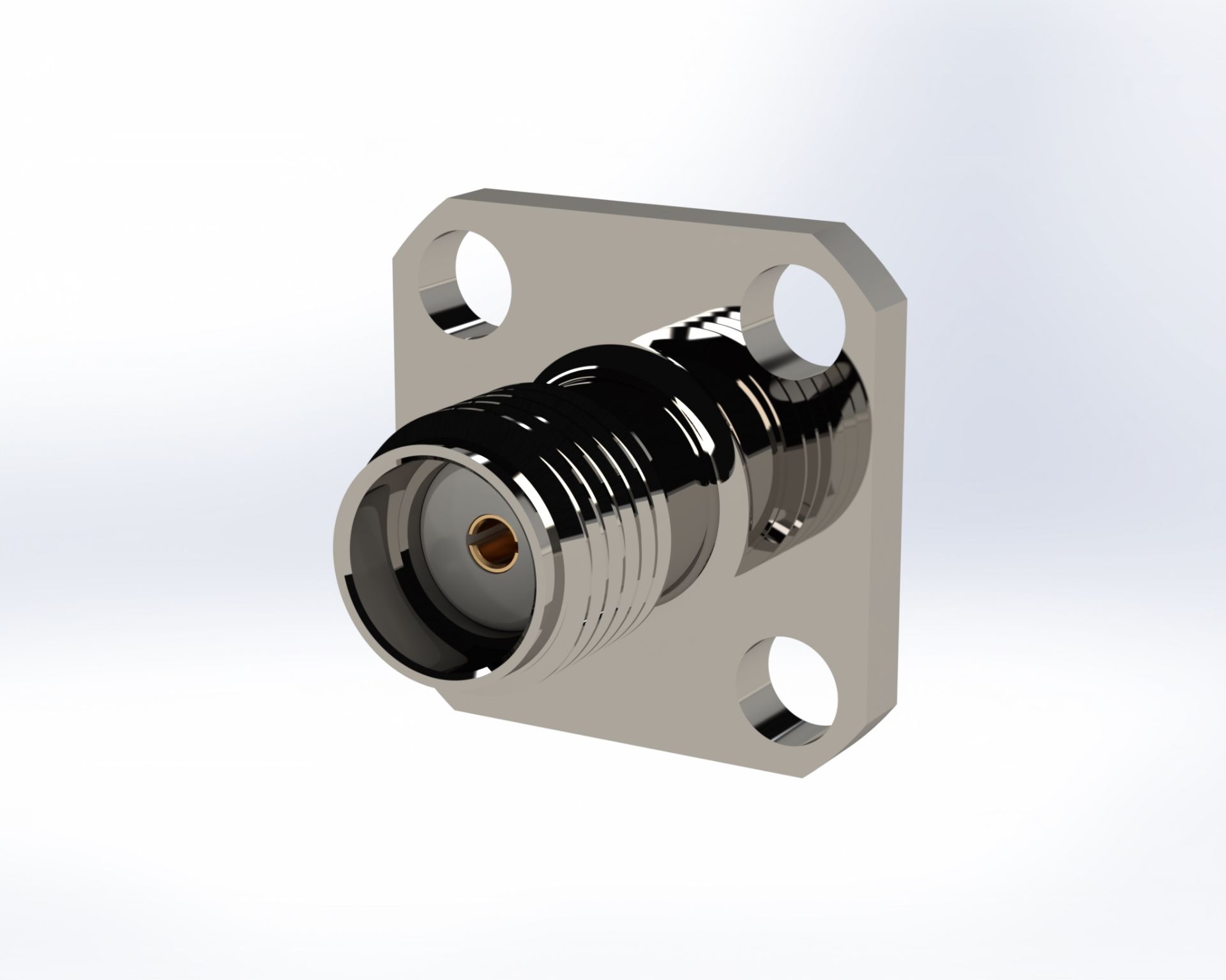

SMA Female Straight 4-Hole, Field Replaceable, Air Section Design

The SMA Female Straight 4-Hole, Field Replaceable, Air Section Design. from Amphenol CDI is engineered for reliability and precision in high-frequency signal transmission. Ideal for aerospace, defense, and telecommunications, this connector ensures consistent performance in demanding environments.
SKU: 5972-2CC
The SMA Female Straight 4-Hole, Field Replaceable, Air Section Design. from Amphenol CDI is engineered for reliability and precision in high-frequency signal transmission. Ideal for aerospace, defense, and telecommunications, this connector ensures consistent performance in demanding environments.
Distributor Quantity Buy
Contact Us
Products specifications
Attribute name Attribute value
Contact Termination Terminal
Housing Finish Gold
RF Connector Specifications
Connector Series SMA
Body Style Straight
Impedance 50 ohms
Mounting Style 4 Hole PNL.
Detent N/A
Gender Female
Hermetic No
Body Plating Gold
Termination COAX
Cable Termination N/A
Interface Type Straight
Center Contact Plating Gold
Dielectric Material PTFE
Center Contact Material BeCu
Operating Temperature -65°C to +125°C
Voltage 335 Vrms max @ sea level
Mating Cycles 500 cycles min
Insertion Loss .50 dB max @ 18 GHz
Max Frequency 18 GHz
Body Material 303 SST
*
*
*
