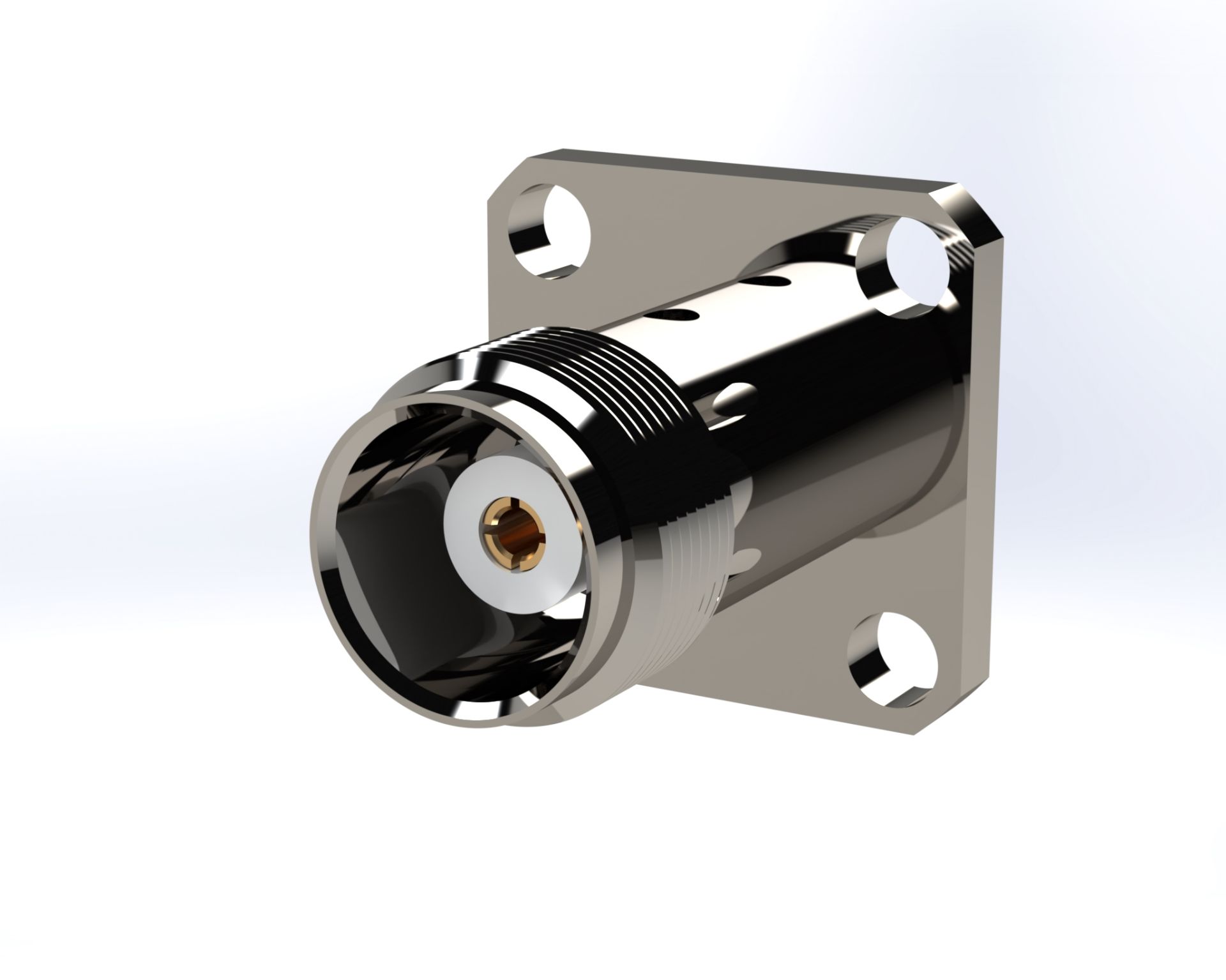

TNC Female Straight 4-Hole, Field Replaceable (.018)

The TNC Female Straight 4-Hole, Field Replaceable (.018) from Amphenol CDI is engineered for reliability and precision in high-frequency signal transmission. Ideal for aerospace, defense, and telecommunications, this connector ensures consistent performance in demanding environments.
SKU: 9080-6CCSF
The TNC Female Straight 4-Hole, Field Replaceable (.018) from Amphenol CDI is engineered for reliability and precision in high-frequency signal transmission. Ideal for aerospace, defense, and telecommunications, this connector ensures consistent performance in demanding environments.
Distributor Quantity Buy
Contact Us
Products specifications
Attribute name Attribute value
Contact Termination Field Rep.
Housing Finish Passivate
RF Connector Specifications
Connector Series TNC
Body Style Straight
Impedance 50 ohms
Mounting Style 4 Hole PNL.
Detent N/A
Gender Female
Hermetic No
Body Plating Gold
Termination Field Rep.
Cable Termination N/A
Interface Type N/A
Center Contact Plating Gold
Dielectric Material PTFE Teflon
Center Contact Material BeCu
Operating Temperature -65°C to +125°C
Voltage 500 Vrms max @ sea level
Mating Cycles 500 cycles min
Insertion Loss .25 dB max @ 18 GHz
Max Frequency 18 GHz
Body Material 303 SST
*
*
*
