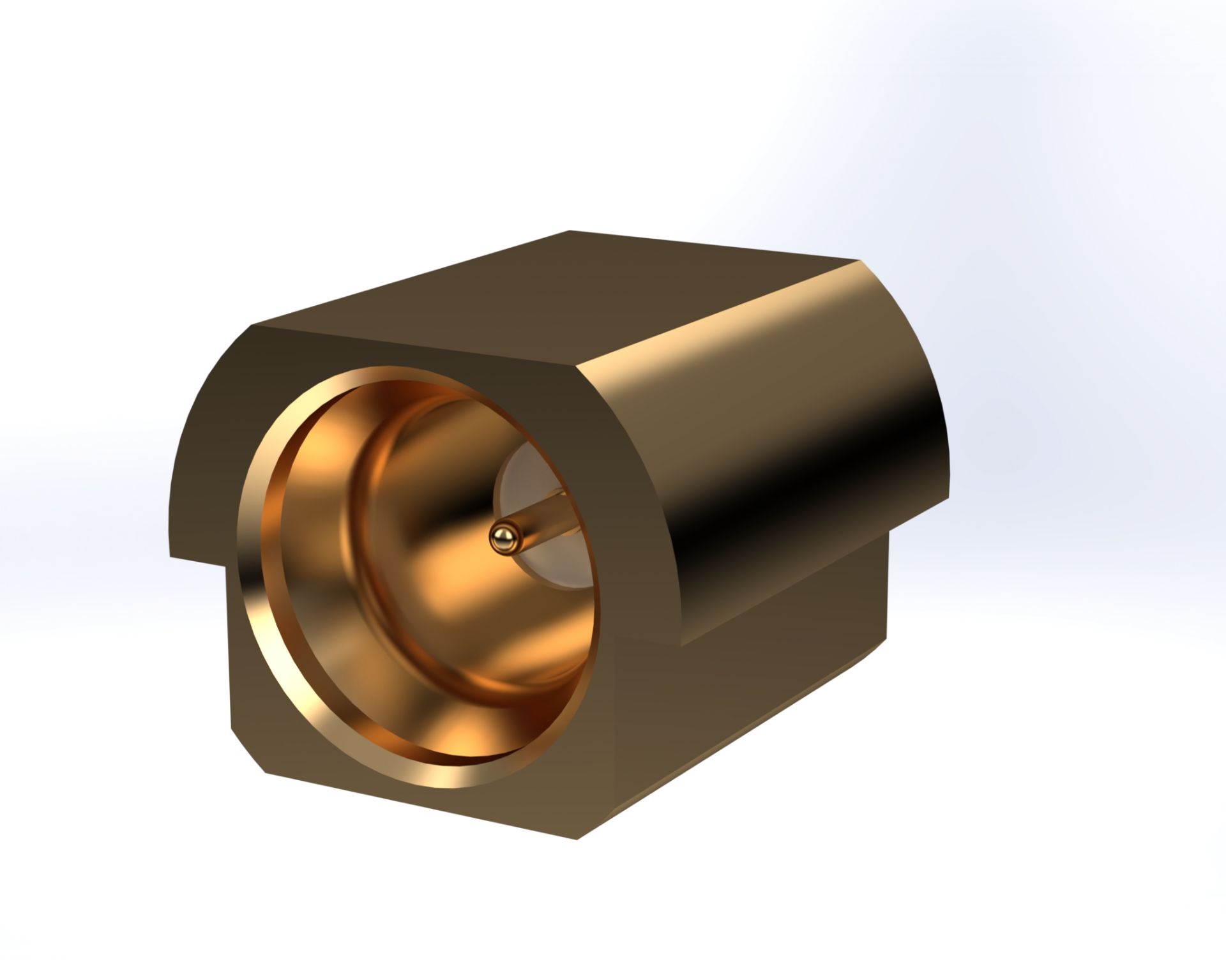

SMPM Male Straight PCB Edge, Straight Termination, Smooth Bore

The SMPM Male Straight PCB Edge, Straight Termination, Smooth Bore from Amphenol CDI is engineered for reliability and precision in high-frequency signal transmission. Ideal for aerospace, defense, and telecommunications, this connector ensures consistent performance in demanding environments.

SKU: P319-2CC

Distributor	Quantity	Buy

Specifications
Contact Us

Products specifications

Attribute name	Attribute value
Impedance	50 ohms
Dielectric Material	PTFE
Operating Temperature	-65°C to +165°C
Insertion Loss	.10 dB max @ 6 GHz
Frequency	40 GHz
Contact Termination	PCB
Housing Finish	Gold
Gender	Male
Body Orientation	Straight
RF Series	SMPM
RF Connector Specifications
Mounting Style	Edge
Detent	Smooth Bore
Hermetic	No
Body Plating	Gold
Interface Type	Straight
Center Contact Plating	Gold
Center Contact Material	BeCu
Voltage	335 Vrms max @ sea level, 150 Vrms @70,000ft
Mating Cycles	500 Cycles
Body Material	Brass or BeCu
