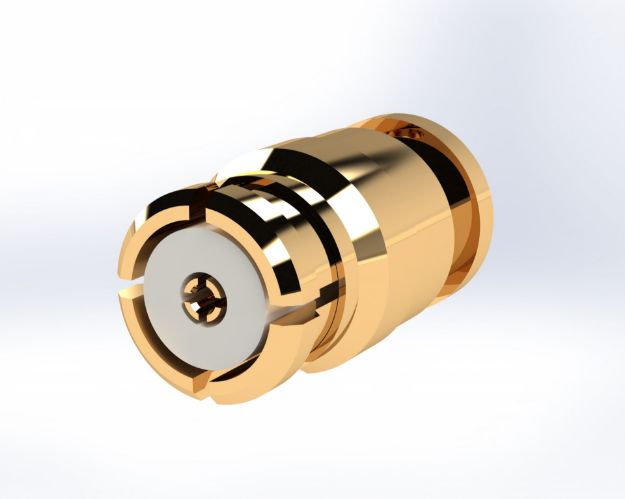

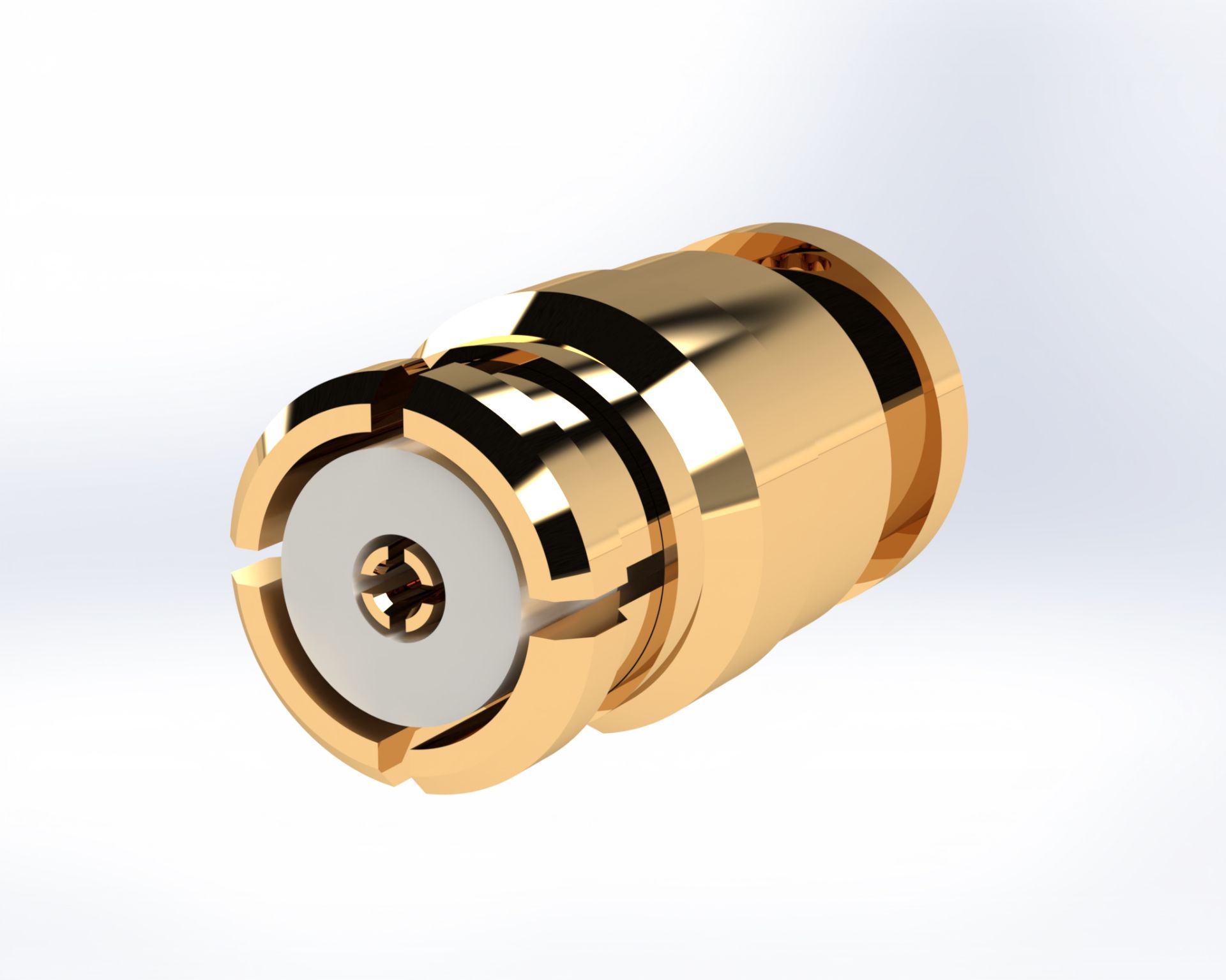

SMP Female Straight for .085 Semi Rigid

The SMP Female Straight for .085 Semi Rigid from Amphenol CDI is engineered for reliability and precision in high-frequency signal transmission. Ideal for aerospace, defense, and telecommunications, this connector ensures consistent performance in demanding environments.
SKU: P651-2CC
The SMP Female Straight for .085 Semi Rigid from Amphenol CDI is engineered for reliability and precision in high-frequency signal transmission. Ideal for aerospace, defense, and telecommunications, this connector ensures consistent performance in demanding environments.
Distributor Quantity Buy
Contact Us
Products specifications
Attribute name Attribute value
Impedance 50 ohms
Dielectric Material PTFE
Operating Temperature -65°C to +165°C
Insertion Loss .05 √f(GHz)
Frequency 40 GHz
Contact Termination COAX
Housing Finish Gold
Gender Female
Body Orientation Straight
RF Series SMP
RF Connector Specifications
Hermetic No
Body Plating Gold
Termination COAX
Cable Termination .085 S/R
Center Contact Plating Gold
Center Contact Material BeCu
Voltage 500 Vrms max @ sea level, 125 Vrms @70,000ft
Mating Cycles 100 cycles min
Body Material BeCu
*
*
*
Products specifications
Attribute name Attribute value
Impedance 50 ohms
Dielectric Material PTFE
Operating Temperature -65°C to +165°C
Insertion Loss .05 √f(GHz)
Frequency 40 GHz
Contact Termination COAX
Housing Finish Gold
Gender Female
Body Orientation Straight
RF Series SMP
RF Connector Specifications
Hermetic No
Body Plating Gold
Termination COAX
Cable Termination .085 S/R
Center Contact Plating Gold
Center Contact Material BeCu
Voltage 500 Vrms max @ sea level, 125 Vrms @70,000ft
Mating Cycles 100 cycles min
Body Material BeCu
