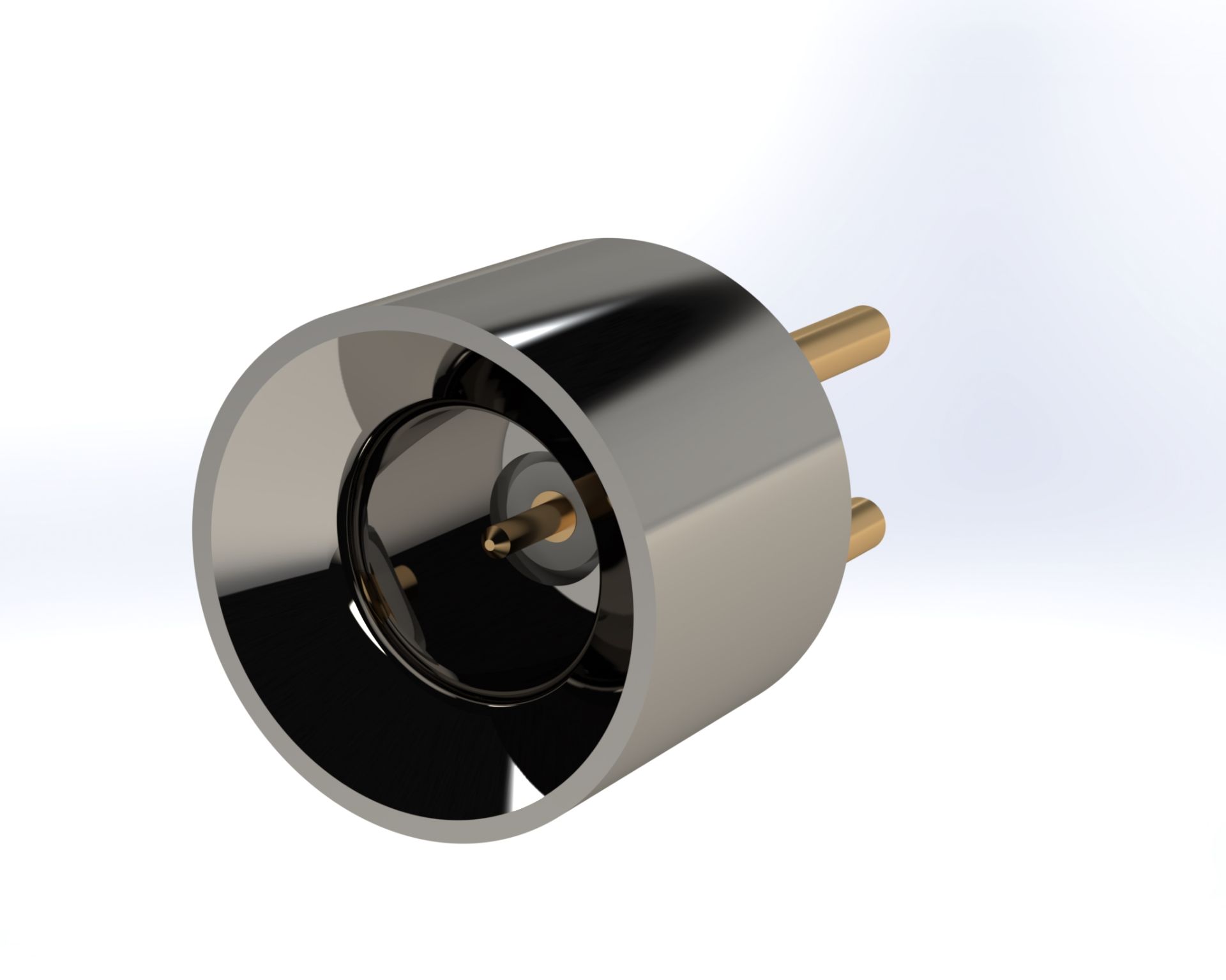

SMP Male Straight to PCB Mount

The P654-12CC from Amphenol CDI is engineered for reliability and precision in high-frequency signal transmission. Ideal for aerospace, defense, and telecommunications, this connector ensures consistent performance in demanding environments.

SKU: P654-12CC

Distributor	Quantity	Buy

Specifications
Contact Us

Products specifications

Attribute name	Attribute value
Contact Termination	N/A
Housing Finish	N/A
RF Connector Specifications
Connector Series	SMP
Body Style	N/A
Impedance	N/A
Mounting Style	N/A
Detent	N/A
Gender	N/A
Hermetic	No
Body Plating	Gold
Termination	N/A
Cable Termination	N/A
Interface Type	N/A
Center Contact Plating	Gold
Dielectric Material	PTFE
Center Contact Material	BeCu
Operating Temperature	-65°C to +165°C
Voltage	335 Vrms max @ sea level
Mating Cycles	N/A
Insertion Loss	.10 dB max @ 12 GHz
Max Frequency	N/A
Body Material	303 SST
