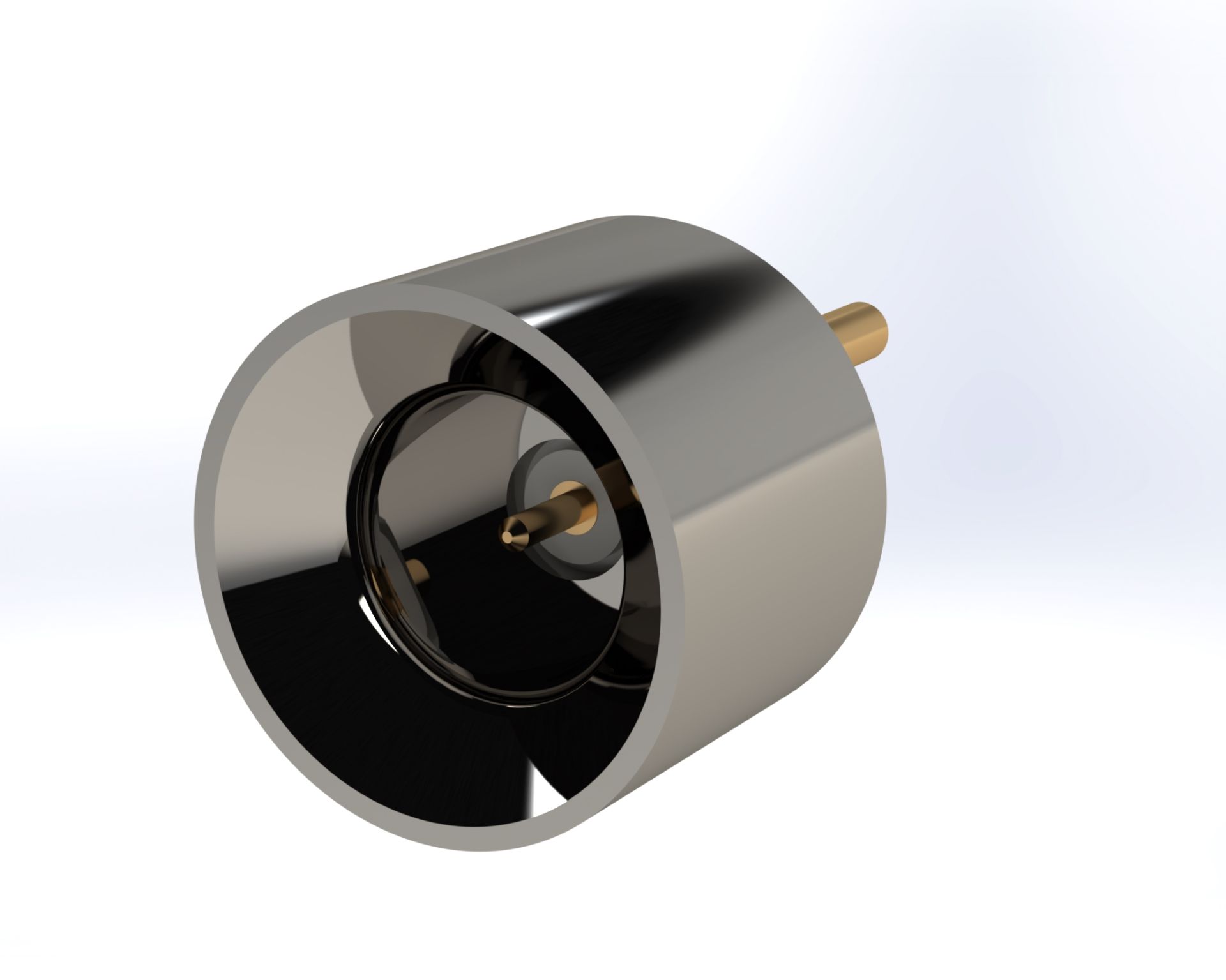

SMP Male Straight PCB Straight Thru Termination, Round Body

The SMP Male Straight PCB Straight Thru Termination, Round Body from Amphenol CDI is engineered for reliability and precision in high-frequency signal transmission. Ideal for aerospace, defense, and telecommunications, this connector ensures consistent performance in demanding environments.

SKU: P654-8CC

Distributor	Quantity	Buy

Specifications
Contact Us

Products specifications

Attribute name	Attribute value
Contact Termination	PCB
Housing Finish	Gold
RF Connector Specifications
Connector Series	SMP
Body Style	Straight
Impedance	50 ohms
Mounting Style	N/A
Detent	Catchers Mitt
Gender	Male
Hermetic	No
Body Plating	Passivate
Termination	COAX
Cable Termination	N/A
Interface Type	Straight
Center Contact Plating	Gold
Dielectric Material	PTFE
Center Contact Material	BeCu
Operating Temperature	-65°C to +165°C
Voltage	335 Vrms max @ sea level
Mating Cycles	N/A
Insertion Loss	.10 dB max @ 12 GHz
Max Frequency	N/A
Body Material	303 SST
