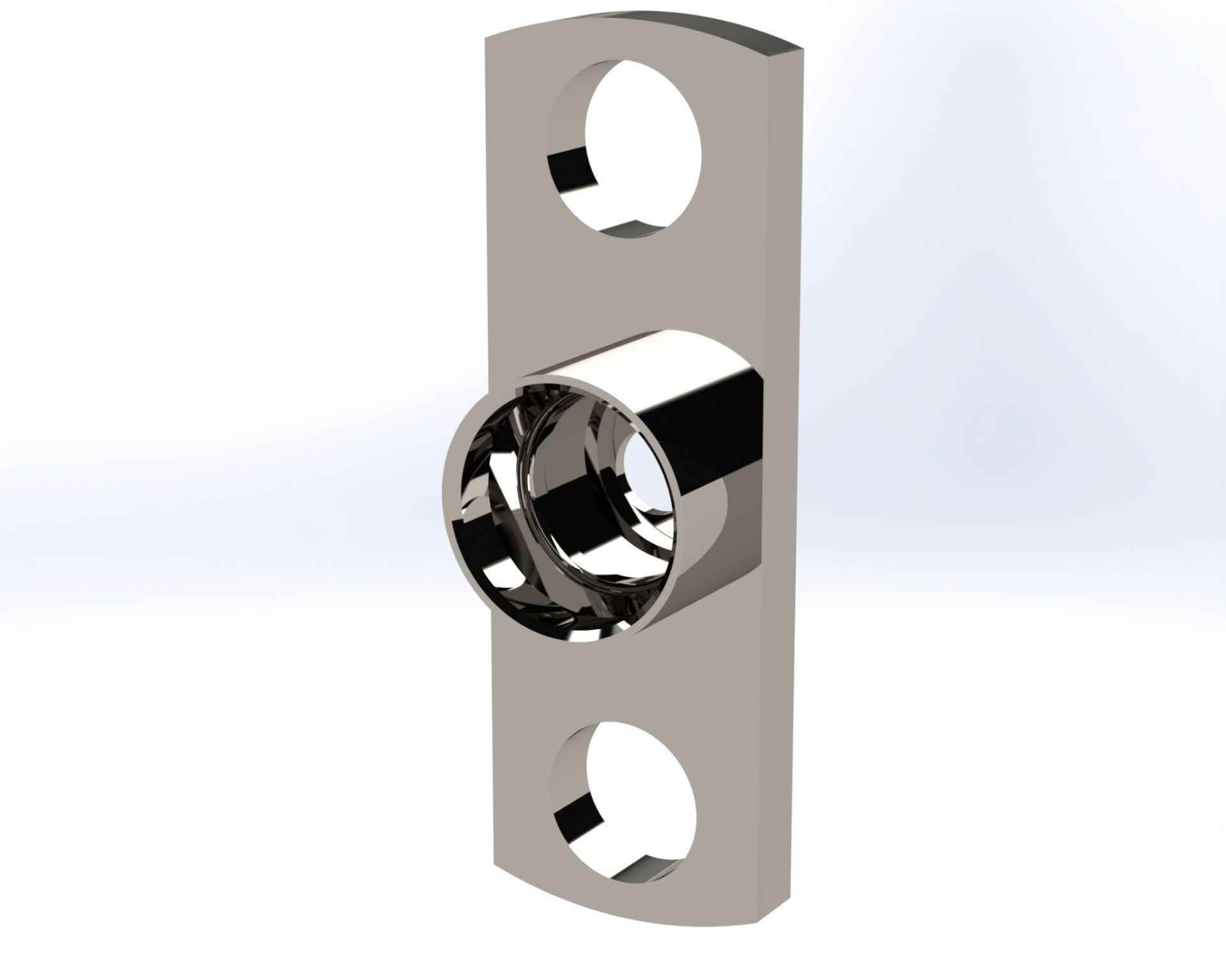

SMP Male Shroud, 2-Hole, Full Detent

The SMP Male Shroud, 2-Hole, Full Detent from Amphenol CDI is engineered for reliability and precision in high-frequency signal transmission. Ideal for aerospace, defense, and telecommunications, this connector ensures consistent performance in demanding environments.
SKU: P670-4SF
The SMP Male Shroud, 2-Hole, Full Detent from Amphenol CDI is engineered for reliability and precision in high-frequency signal transmission. Ideal for aerospace, defense, and telecommunications, this connector ensures consistent performance in demanding environments.
Distributor Quantity Buy
Contact Us
Products specifications
Attribute name Attribute value
Impedance 50 ohms
Operating Temperature -65°C to +165°C
Housing Finish Passivate
Gender Male
Body Orientation Straight
RF Series SMP
RF Connector Specifications
Mounting Style 2 Hole PNL.
Detent Full
Hermetic No
Body Plating Gold
Termination COAX
Interface Type Shroud
Mating Cycles 100 cycles min
Body Material 303 SST
*
*
*
Products specifications
Attribute name Attribute value
Impedance 50 ohms
Operating Temperature -65°C to +165°C
Housing Finish Passivate
Gender Male
Body Orientation Straight
RF Series SMP
RF Connector Specifications
Mounting Style 2 Hole PNL.
Detent Full
Hermetic No
Body Plating Gold
Termination COAX
Interface Type Shroud
Mating Cycles 100 cycles min
Body Material 303 SST
