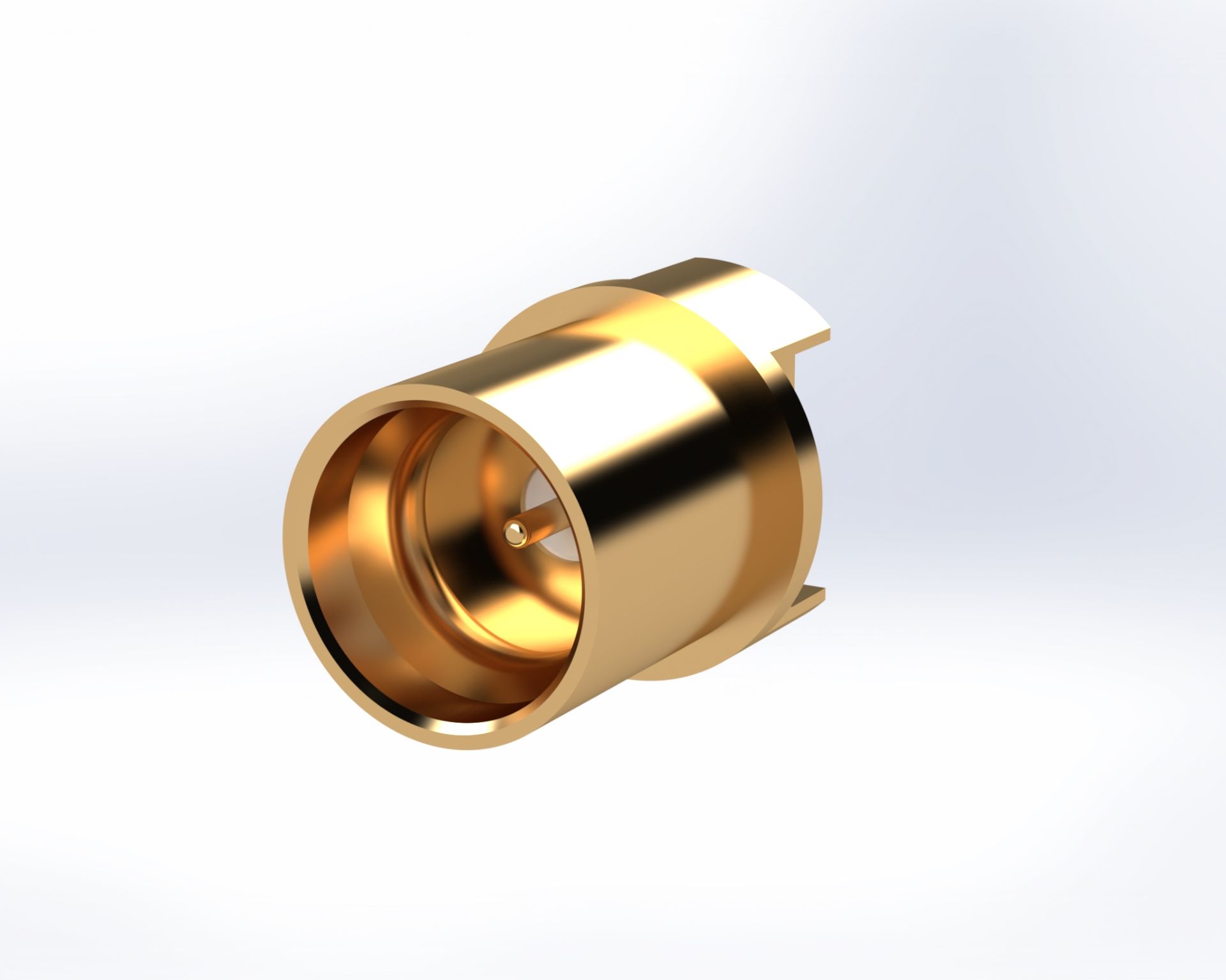

SMP Male Straight PCB Edge Mount, Full Detent

The SMP Male Straight PCB Edge Mount, Full Detent from Amphenol CDI is engineered for reliability and precision in high-frequency signal transmission. Ideal for aerospace, defense, and telecommunications, this connector ensures consistent performance in demanding environments.

SKU: P698-1CC

Distributor	Quantity	Buy

Specifications
Contact Us

Products specifications

Attribute name	Attribute value
Contact Termination	PCB
Housing Finish	Gold
RF Connector Specifications
Connector Series	SMP
Body Style	Straight
Impedance	50 ohms
Mounting Style	Edge
Detent	Full
Gender	Male
Hermetic	No
Body Plating	Gold
Termination	PCB
Cable Termination	N/A
Interface Type	Straight
Center Contact Plating	Gold
Dielectric Material	PTFE
Center Contact Material	BeCu
Operating Temperature	-65°C to +165°C
Voltage	600 Vrms max @ sea level 150 Vrms max @ 70,000 ft.
Mating Cycles	100 cycles min
Insertion Loss	.01 √f (GHZ)
Max Frequency	40 GHz
Body Material	BeCu
