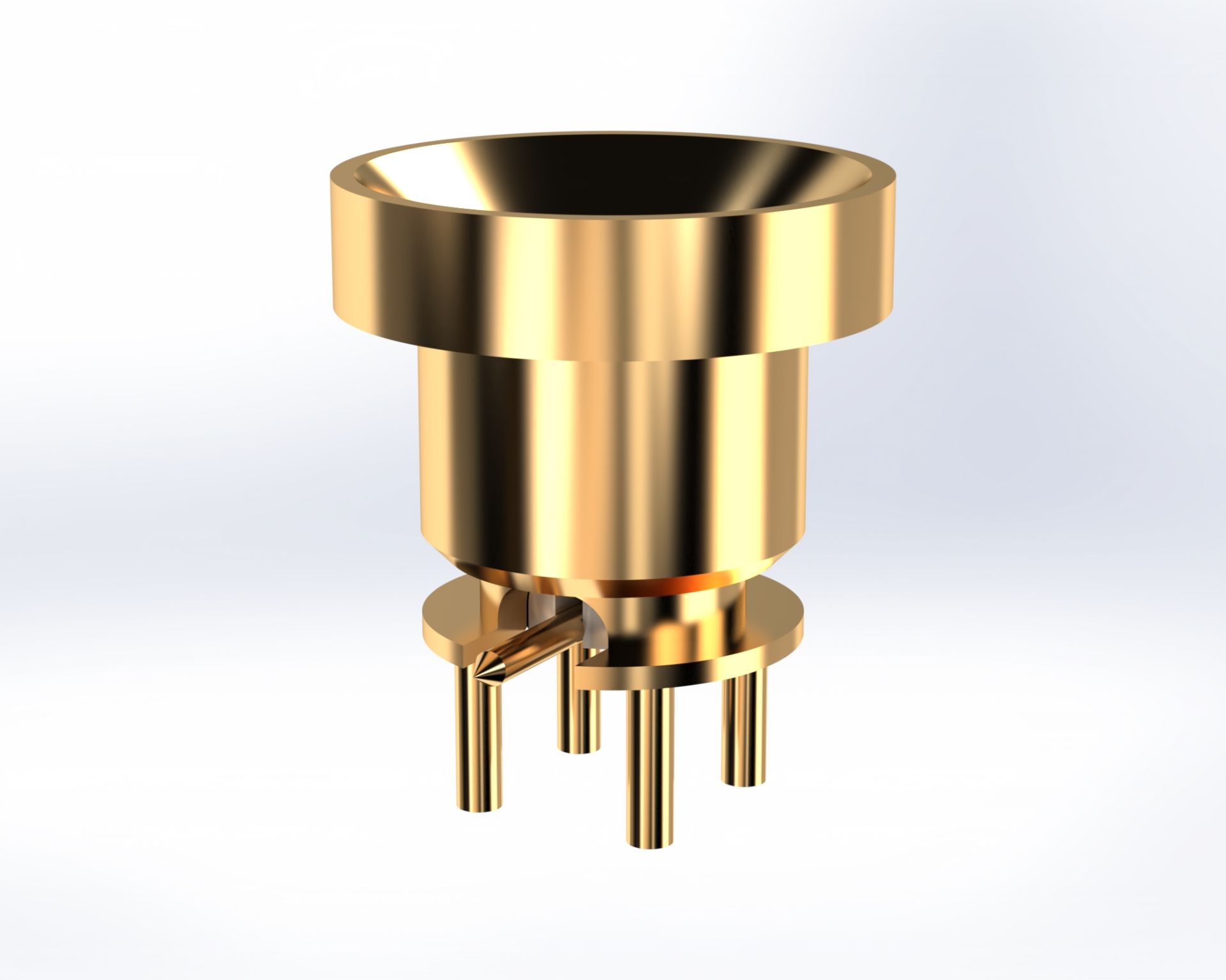

SMP Male Straight PCB Surface Mount, Catchers Mitt

The SMP Male Straight PCB Surface Mount, Catchers Mitt from Amphenol CDI is engineered for reliability and precision in high-frequency signal transmission. Ideal for aerospace, defense, and telecommunications, this connector ensures consistent performance in demanding environments.

SKU: P797-4CC

Distributor	Quantity	Buy

Specifications
Contact Us

Products specifications

Attribute name	Attribute value
Contact Termination	COAX
Housing Finish	Passivate
RF Connector Specifications
Connector Series	SMA
Body Style	Straight
Impedance	50 ohms
Mounting Style	Straight
Detent	N/A
Gender	Male
Hermetic	No
Body Plating	N/A
Termination	N/A
Cable Termination	N/A
Interface Type	N/A
Center Contact Plating	Gold
Dielectric Material	PTFE
Center Contact Material	BeCu
Operating Temperature	-65°C to +165°C
Voltage	335 Vrms max @ sea level
Mating Cycles	500 cycles min
Insertion Loss	.03 √f(GHz)
Max Frequency	18 GHz
Body Material	303 SST / 304 SST
