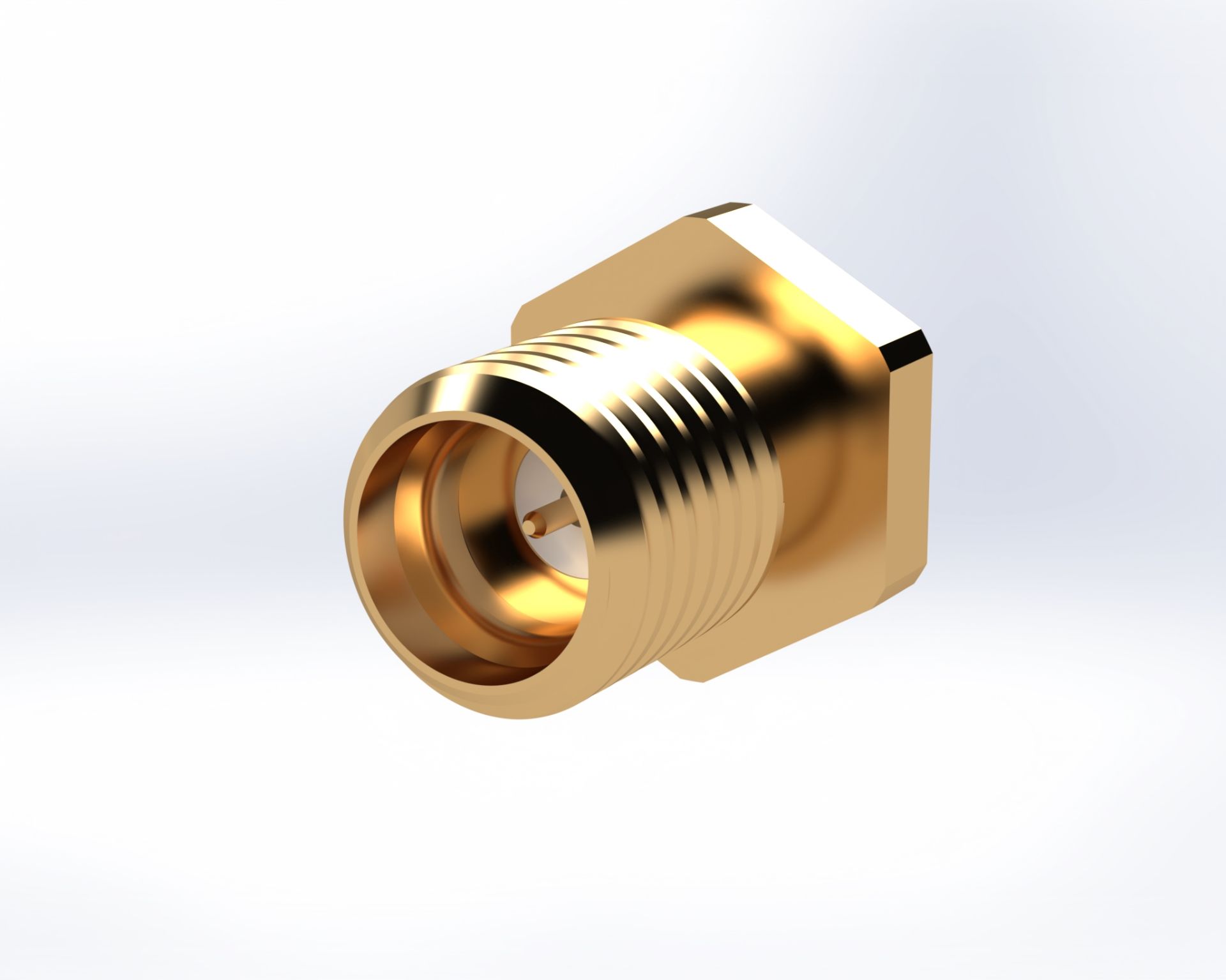

Straight SMP Male Limited Detent to SMP Male Bulkhead Catchers Mitt

SKU: P912-2CCSF
Distributor Quantity Buy
Contact Us
Products specifications
Attribute name Attribute value
RF Connector Specifications
Max Frequency 18 GHz
Center Contact Plating Gold
Body Material 303 SST
Mating Cycles Dependent on Detent
Insertion Loss .06 √f(GHz)
Operating Temperature -65°C to +165°C
Voltage 335 Vrms max @ sea level
RF Adapter Specifications
Ohm 50 ohms
Body Style Straight
Interface 1 Type SMP
Interface 1 Gender Male
Interface 2 Type SMP
Interface 2 Gender Male
Mount Bulkhead
Detent Full Detent
Hermetic No
Body Plating Passivate
*
*
*
Products specifications
Attribute name Attribute value
RF Connector Specifications
Max Frequency 18 GHz
Center Contact Plating Gold
Body Material 303 SST
Mating Cycles Dependent on Detent
Insertion Loss .06 √f(GHz)
Operating Temperature -65°C to +165°C
Voltage 335 Vrms max @ sea level
RF Adapter Specifications
Ohm 50 ohms
Body Style Straight
Interface 1 Type SMP
Interface 1 Gender Male
Interface 2 Type SMP
Interface 2 Gender Male
Mount Bulkhead
Detent Full Detent
Hermetic No
Body Plating Passivate
