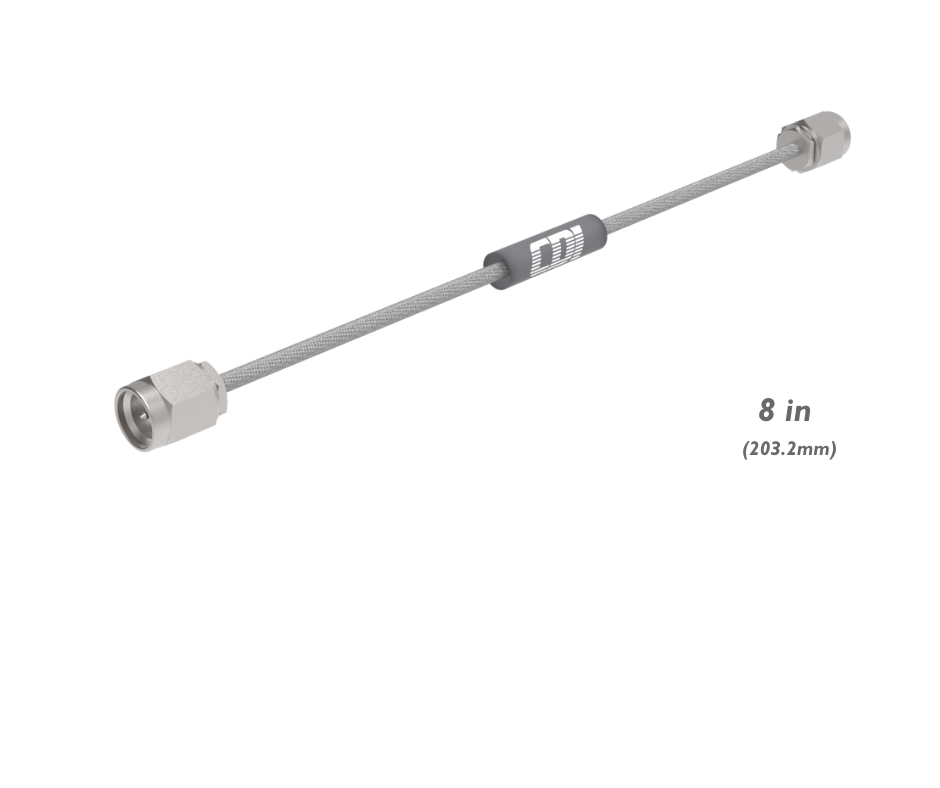

SEMI FLEX(R) SMA(M), 600, SMA(M), 8"

SKU: 136366005208
Distributor Quantity Buy
Contact Us
Products specifications
Attribute name Attribute value
Packaging Bag
Contact Termination Solder
Number of Ports 2
Housing Finish Passivated SST
Impedance 50 ohms
Operating Temperature -50°C to + 105°C
Frequency 18 GHz
Gender Male
Body Orientation Straight
RF Series SMA
Dielectric Material PTFE
Insertion Loss 0.98
RF Connector Specifications
Mounting Style Free Hanging (In-Line)
Center Contact Material BeCu
Body Material SST
Center Contact Plating Gold
Mating Cycles 500 Cycles
T & M Specifications
Series SMA
Shield Termination Solder
Fastening Type Threaded
*
*
*
Products specifications
Attribute name Attribute value
Packaging Bag
Contact Termination Solder
Number of Ports 2
Housing Finish Passivated SST
Impedance 50 ohms
Operating Temperature -50°C to + 105°C
Frequency 18 GHz
Gender Male
Body Orientation Straight
RF Series SMA
Dielectric Material PTFE
Insertion Loss 0.98
RF Connector Specifications
Mounting Style Free Hanging (In-Line)
Center Contact Material BeCu
Body Material SST
Center Contact Plating Gold
Mating Cycles 500 Cycles
T & M Specifications
Series SMA
Shield Termination Solder
Fastening Type Threaded
