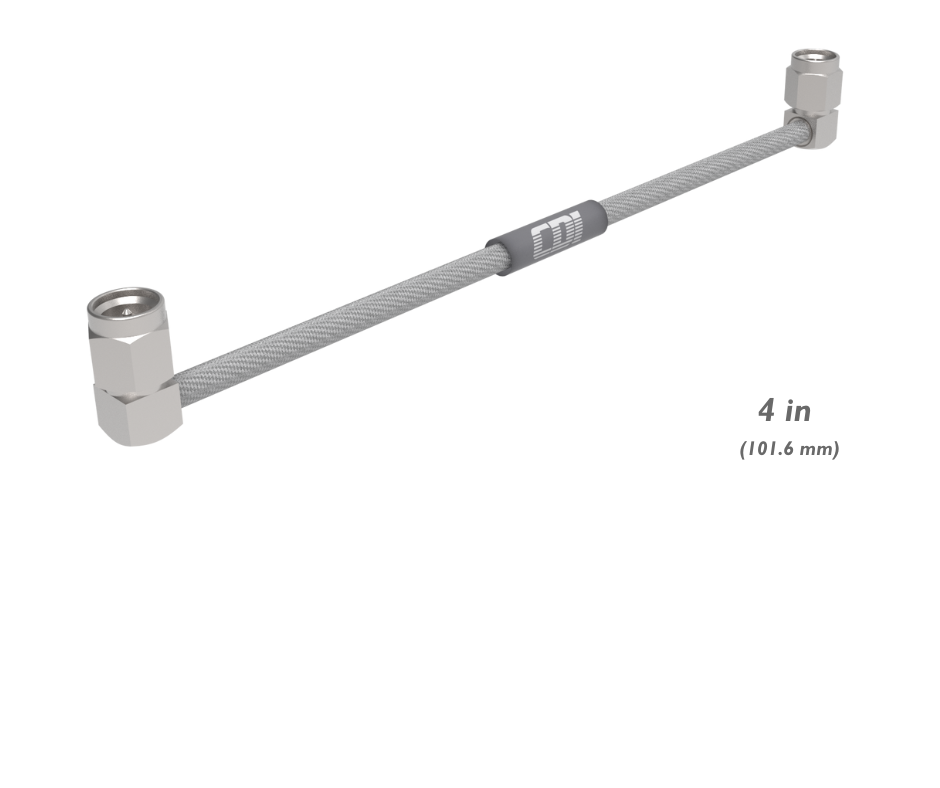

SEMI FLEX(R) SMA(M) R/A, 600, SMA(M) R/A, 4"

SKU: 137376003204
Distributor Quantity Buy
Contact Us
Products specifications
Attribute name Attribute value
Packaging Bag
Contact Termination Solder
Number of Ports 2
Housing Finish Passivated SST
Impedance 50 ohms
Operating Temperature -50°C to + 105°C
Frequency 18 GHz
Gender Male
Body Orientation Straight
Body Orientation 2 Right Angle
RF Series SMA
Dielectric Material PTFE
Insertion Loss 0.68
RF Connector Specifications
Mounting Style Free Hanging (In-Line)
Center Contact Material BeCu
Body Material SST
Center Contact Plating Gold
Mating Cycles 500 Cycles
T & M Specifications
Series SMA
Shield Termination Solder
Fastening Type Threaded
*
*
*
Products specifications
Attribute name Attribute value
Packaging Bag
Contact Termination Solder
Number of Ports 2
Housing Finish Passivated SST
Impedance 50 ohms
Operating Temperature -50°C to + 105°C
Frequency 18 GHz
Gender Male
Body Orientation Straight
Body Orientation 2 Right Angle
RF Series SMA
Dielectric Material PTFE
Insertion Loss 0.68
RF Connector Specifications
Mounting Style Free Hanging (In-Line)
Center Contact Material BeCu
Body Material SST
Center Contact Plating Gold
Mating Cycles 500 Cycles
T & M Specifications
Series SMA
Shield Termination Solder
Fastening Type Threaded
