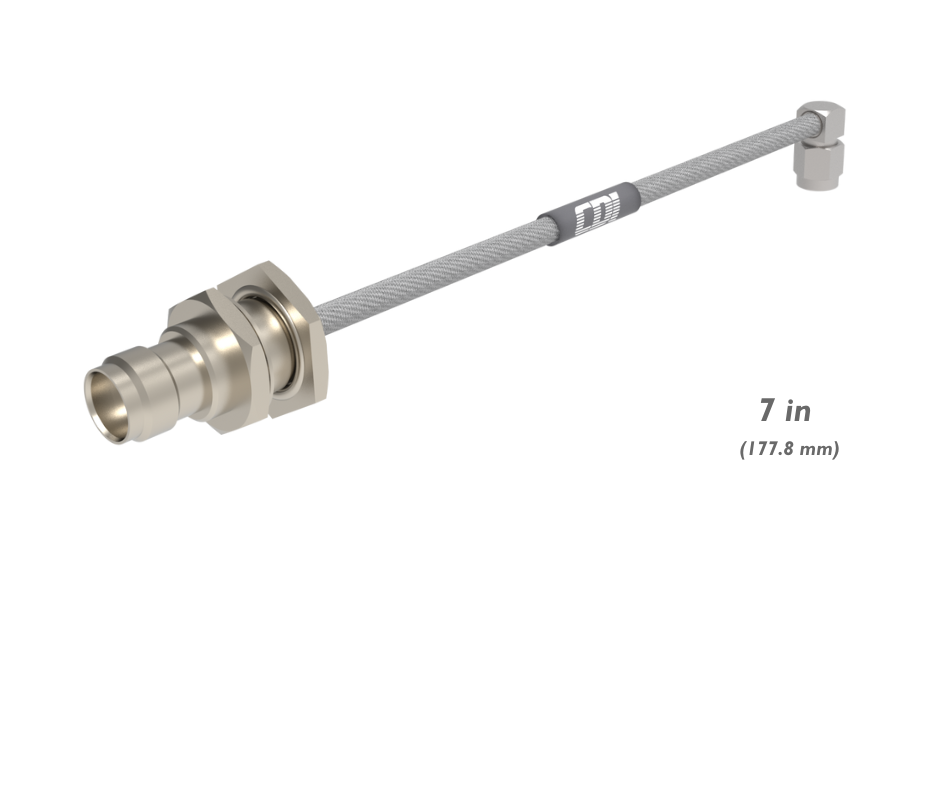

SEMI FLEX(R) TNC(F) BHD TO SMA(M) R/A ON 601, 7"

SKU: 134376013207
Distributor Quantity Buy
Contact Us
Products specifications
Attribute name Attribute value
Packaging Bag
Contact Termination Solder
Number of Ports 2
Housing Finish Passivated SST
Impedance 50 ohms
Frequency 18 GHz
Operating Temperature -50°C to + 105°C
Gender Female
Gender 2 Male
Body Orientation Straight
Body Orientation 2 Right Angle
RF Series TNC
RF Series 2 SMA
Dielectric Material PTFE
Insertion Loss 0.98
RF Connector Specifications
Mounting Style Bulkhead
Center Contact Plating Gold
Mating Cycles 500 Cycles
Center Contact Material BeCu
Body Material SST
Connector Series TNC
T & M Specifications
Series TNC - SMA
Shield Termination Solder
Fastening Type Threaded
*
*
*
