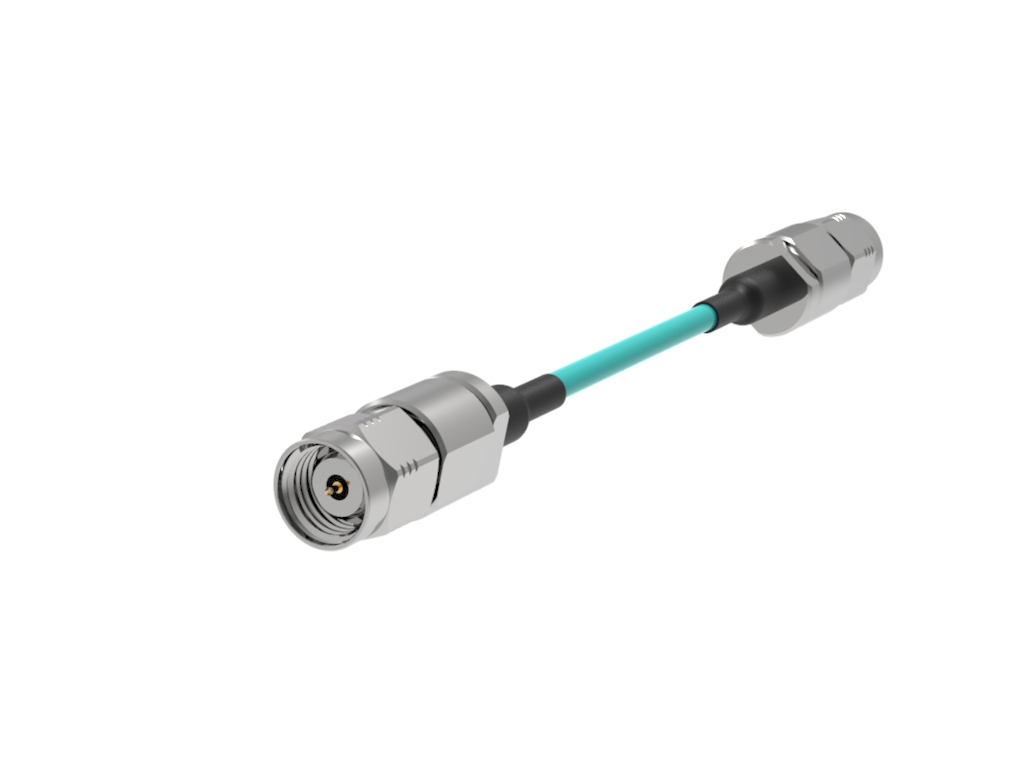

2.4mm Male to 2.4mm Male RF Assembly at 31 cm

SKU: TM7SM4MS4MS0031C

0.079" cable diameter, Straight mount 2.4mm Male Connector to Straight Mount 2.4mm Male Connector, 31 cm in length,

Distributor	Quantity	Buy

Products specifications

Attribute name	Attribute value
Category	Cable Assembly, Coaxial Cables (RF)
Packaging	Bag - Single
Contact Termination	Compression
Housing Finish	Gold
Number of Ports	2
RF Connector Specifications
Impedance	50 ohms
Gender	Male to Male
Mounting Style	Free Hanging (In-Line)
Max Frequency	50 GHz
Center Contact Material	BeCu
Body Material	N/A
Center Contact Plating	Gold
Dielectric Material	PTFE
Voltage	N/A
Mating Cycles	1000 cycles min
Insertion Loss	N/A
Operating Temperature	-65°C to +125°C
T & M Specifications
Connector Type	N/A
Shield Termination	Threaded
Fastening Type	Threaded
Features	Field Replicable, Compliant Mount to PCB
Connector Style	2.4 mm to 2.4 mm
Series	2.4 mm
