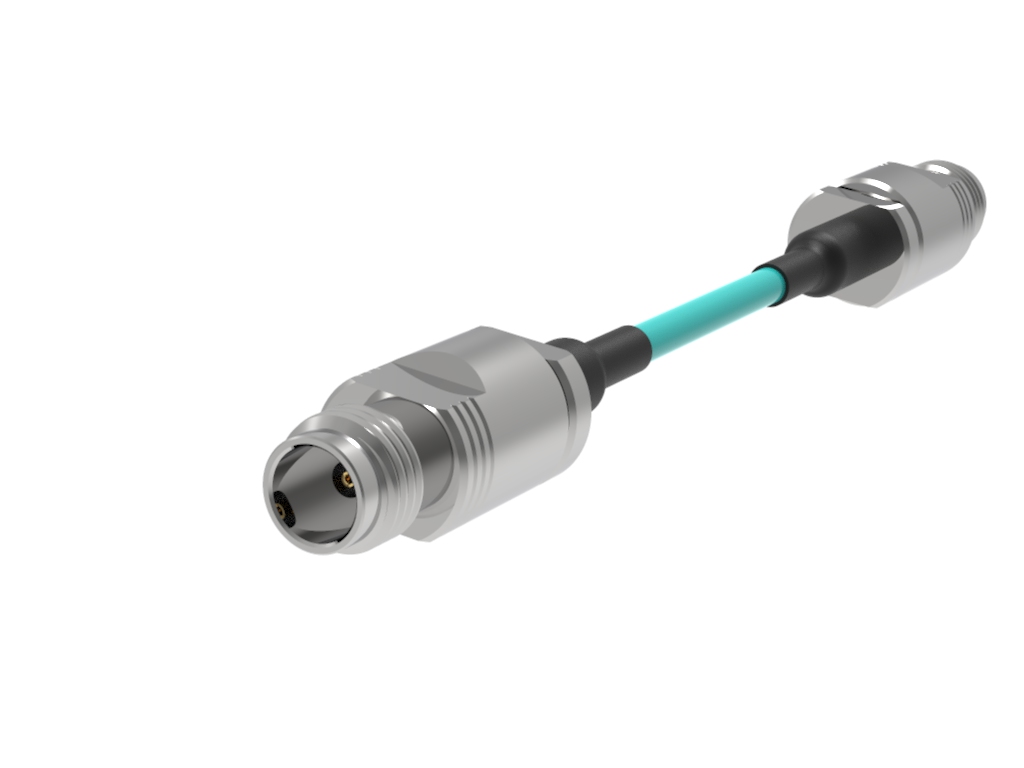

2.92mm Female to 2.92mm Female RF Assembly at 61 cm

0.079" cable diameter, Straight mount 2.92mm Female Connector to Straight Mount 2.92mm Female Connector, 61 cm in length,
SKU: TM7SM9FS9FS0061C
0.079" cable diameter, Straight mount 2.92mm Female Connector to Straight Mount 2.92mm Female Connector, 61 cm in length,
Distributor Quantity Buy
Contact Us
Products specifications
Attribute name Attribute value
Category Cable Assembly, Coaxial Cables (RF)
Packaging Bag - Single
Contact Termination Compression
Number of Ports 2
Housing Finish Passivated SST
RF Connector Specifications
Gender Female to Female
Impedance 50 ohms
Mounting Style Free Hanging (In-Line)
Max Frequency 40 GHz
Center Contact Material BeCu
Body Material SST
Center Contact Plating Gold
Dielectric Material PTFE
Voltage N/A
Mating Cycles 1000 cycles min
Insertion Loss N/A
Operating Temperature -65°C to +125°C
T & M Specifications
Series 2.92 mm
Connector Style 2.92 mm to 2.92 mm
Connector Type N/A
Shield Termination Threaded
Fastening Type Threaded
Features N/A
*
*
*
