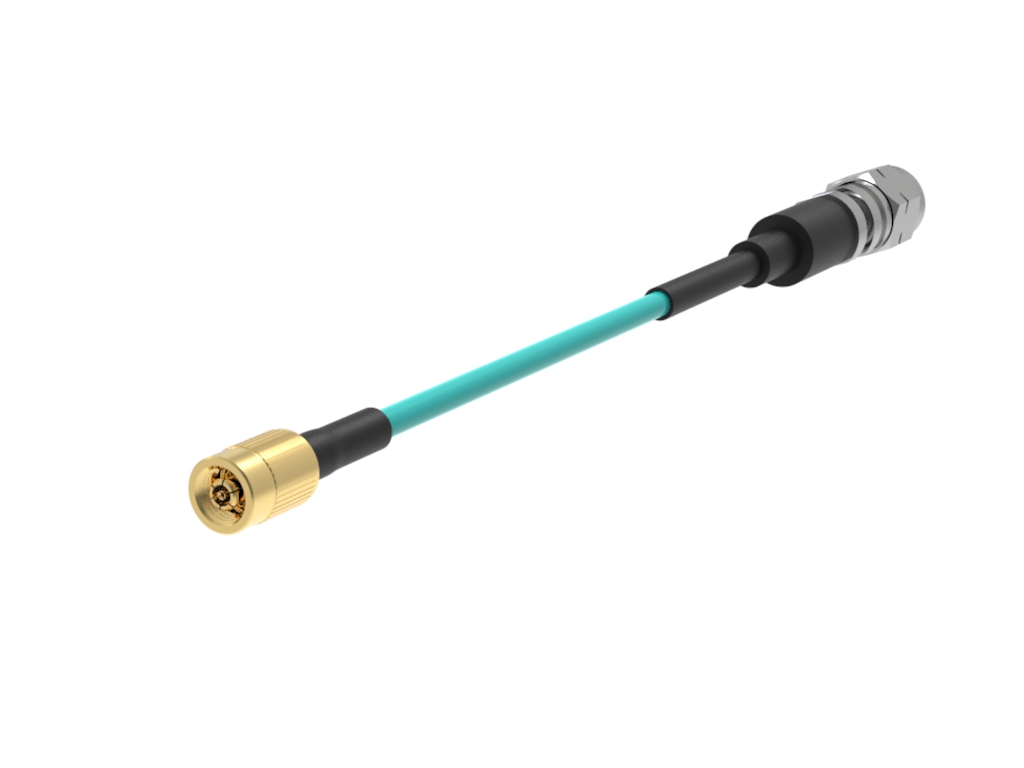

SMPM SecureThread™ to 2.92mm Male RF Assembly at 31 cm

SKU: TM7SMSTS9MS0031C

0.079" cable diameter, Straight mount SMPM SecureThread™ Connector to Straight Mount 2.92mm Male Connector, 31 cm in length

Distributor	Quantity	Buy

Products specifications

Attribute name	Attribute value
Category	Cable Assembly, Coaxial Cables (RF)
Packaging	Bag - Single
Contact Termination	Compression
Number of Ports	2
Housing Finish	Passivated SST, Gold
RF Connector Specifications
Gender	Male to Female
Impedance	50 ohms
Mounting Style	Free Hanging (In-Line)
Max Frequency	40 GHz
Center Contact Material	BeCu
Body Material	N/A
Center Contact Plating	Gold
Dielectric Material	PTFE
Voltage	N/A
Mating Cycles	250 cycles min
Insertion Loss	N/A
Operating Temperature	-65°C to +125°C
T & M Specifications
Series	Secure Thread
Connector Style	SSMP ST to 2.92 mm
Connector Type	N/A
Shield Termination	Threaded
Fastening Type	Threaded
Features	N/A
