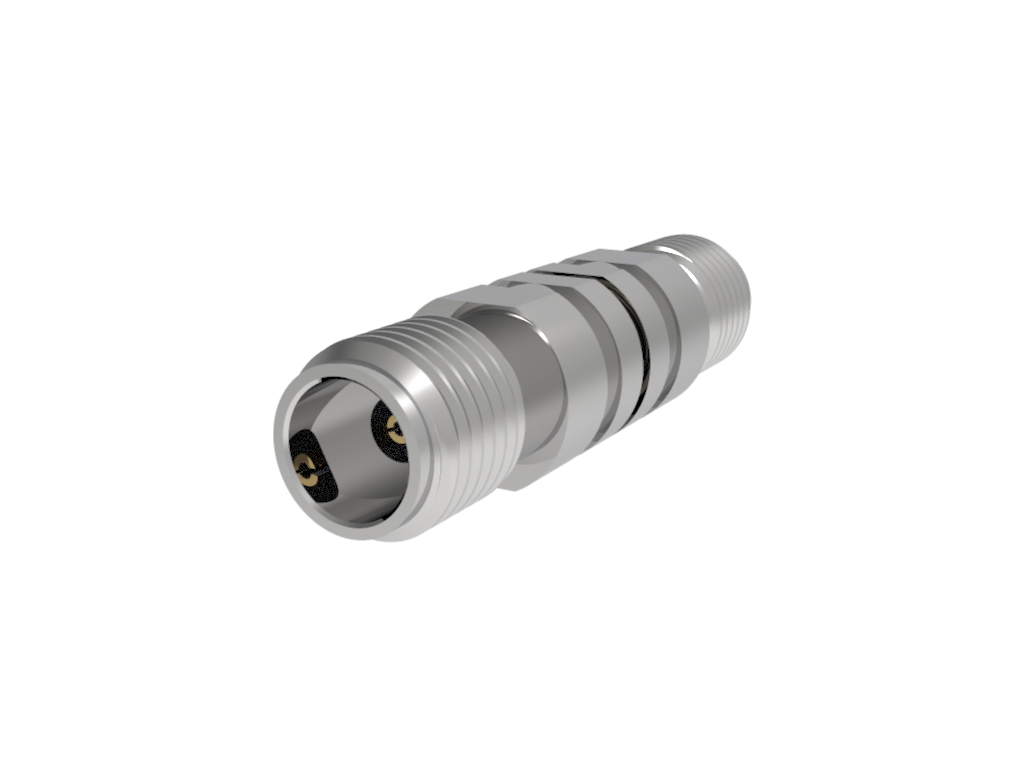

Coaxial Adapter 2.4mm Female(Jack) to 3.5mm Female(Jack)

SKU: TMA-4FS-5FS-00

Adapter Coaxial Connector 3.5mm Jack, Female Socket To 3.5mm Jack, Female Socket, 50 Ohms

Distributor	Quantity	Buy

Products specifications

Attribute name	Attribute value
Category	Coaxial Connector (RF) Adapters
Packaging	Bag - Single
Contact Termination	Compression
Housing Finish	Passivated SST
Number of Ports	2
RF Connector Specifications
Gender	Female to Female
Impedance	50 ohms
Mounting Style	Free Hanging (In-Line)
Max Frequency	50 GHz
Center Contact Material	BeCu
Body Material	SST
Center Contact Plating	Gold
Dielectric Material	PTFE
Operating Temperature	-55°C to + 85°C
Voltage	500 Vrms max @ sea level
Mating Cycles	500 cycles min
Insertion Loss	0.2 dB
T & M Specifications
Series	Between Series
Connector Style	2.4 mm to 2.4 mm
Shield Termination	Threaded
Fastening Type	Threaded
