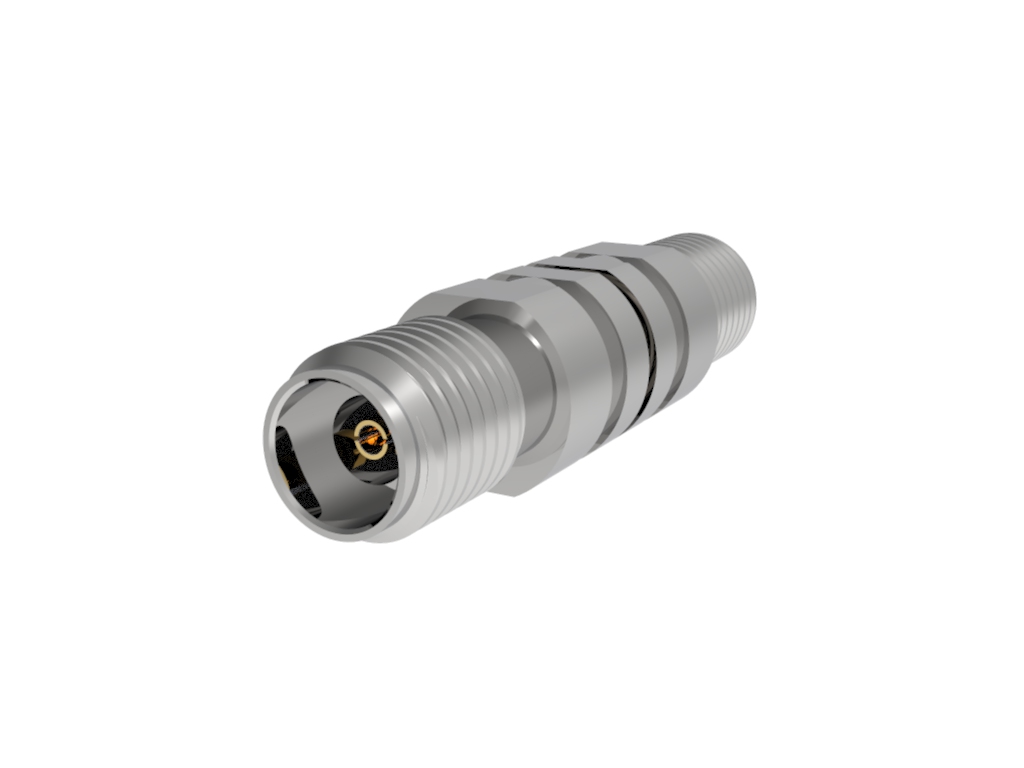

Coaxial Adapter 2.92mm Female (Jack) to 2.92mm Female (Jack)

SKU: TMA-9FS-9FS-00

Adapter Coaxial Connector 2.92mm Jack, Female Socket To 2.92mm Jack, Female Socket, 50 Ohms

Distributor	Quantity	Buy

Products specifications

Attribute name	Attribute value
Category	Coaxial Connector (RF) Adapters
Packaging	Bag - Single
Contact Termination	Compression
Housing Finish	Passivated SST
Number of Ports	2
RF Connector Specifications
Gender	Female to Female
Impedance	50 ohms
Mounting Style	Free Hanging (In-Line)
Max Frequency	40 GHz
Center Contact Material	BeCu
Body Material	SST
Center Contact Plating	Gold
Dielectric Material	PTFE
Operating Temperature	-55°C to + 85°C
Voltage	500 Vrms max @ sea level
Mating Cycles	500 cycles min
Insertion Loss	0.2 dB
T & M Specifications
Series	In-Series
Connector Style	2.92 mm to 2.92 mm
Shield Termination	Threaded
Fastening Type	Threaded
