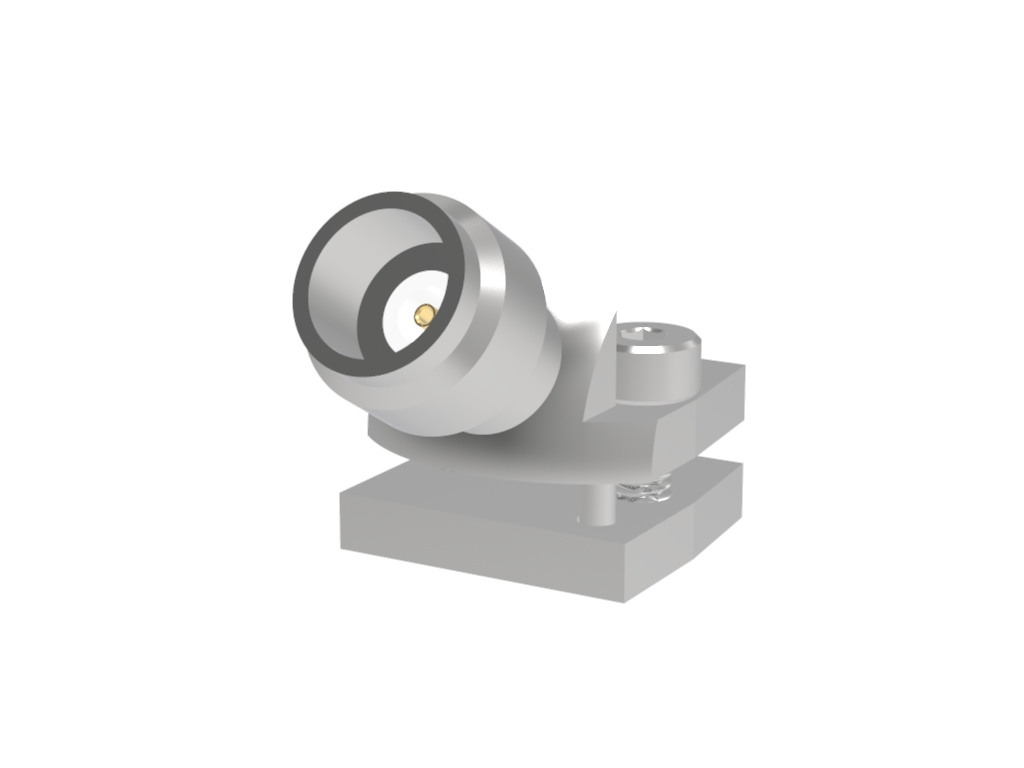

1.85mm PCB Female Angled Solderless

1.85mm Female, Jack, Solderless PCB Compression Mount Connector, 2 Hole, 30°
SKU: TMB-A8F2-3L1
1.85mm Female, Jack, Solderless PCB Compression Mount Connector, 2 Hole, 30°
Distributor Quantity Buy
Contact Us
Products specifications
Attribute name Attribute value
Packaging Tray
Contact Termination Compression
Impedance 50 ohms
Frequency 67 GHz
Housing Finish Gold
Dielectric Material PTFE
Operating Temperature -40°C to +85°C
Insertion Loss 0.2 dB
Number of Ports 1
Gender Female
RF Series 1.85 mm
RF Connector Specifications
Mounting Style Surface
Center Contact Material BeCu
Body Material BeCu
Center Contact Plating Gold
Voltage 500 Vrms max @ sea level
Mating Cycles 500 Cycles
T & M Specifications
Shield Termination Threaded
Fastening Type Threaded
Connector Type Jack, Female Socket
Features Field Replicable, Compliant Mount to PCB
*
*
*
