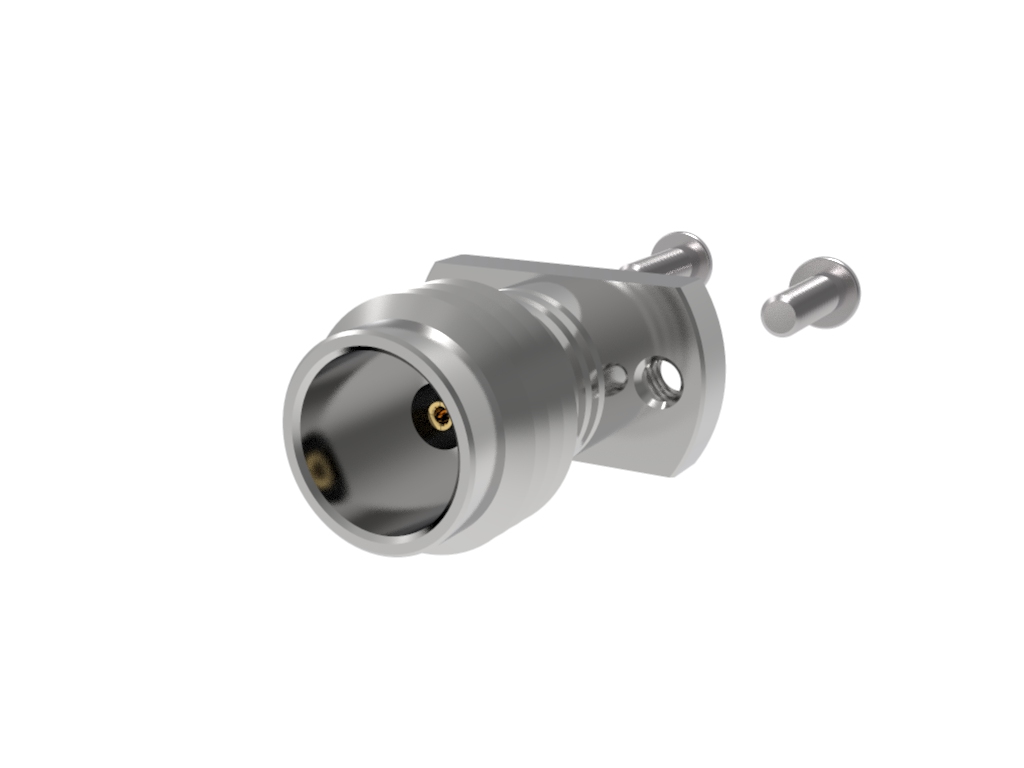

1.85mm Female Solderless PCB Compression Mount Connector, 2 Hole

SKU: TMB-V8F2-3L1

1.85mm Female, Jack, Vertical Mount, Solderless PCB Compression Mount Connector, 2 hole

Distributor	Quantity	Buy

Products specifications

Attribute name	Attribute value
Operating Temperature	-55°C to + 85°C
Packaging	Tray
Contact Termination	Compression
Impedance	50 ohms
Frequency	67 GHz
Number of Ports	1
Housing Finish	Passivated SST
Dielectric Material	PTFE
Insertion Loss	0.2 dB
Gender	Female
RF Series	1.85 mm
RF Connector Specifications
Mounting Style	Surface
Center Contact Material	BeCu
Body Material	SST
Center Contact Plating	Gold
Voltage	500 Vrms max @ sea level
Mating Cycles	500 Cycles
T & M Specifications
Connector Type	Jack, Female Socket
Shield Termination	Threaded
Fastening Type	Threaded
Features	Field Replicable, Compliant Mount to PCB
