CoreHC™ Cable Assemblies

Engineered for high‑density, performance‑driven applications, CoreHC™ ganged interconnect cable assemblies in vertical launch configurations deliver a compact, high‑performance solution for space‑constrained designs. This solderless coaxial system simplifies direct PCB attachment, reducing integration complexity while enabling smaller board footprints with a 2.5 mm signal‑to‑signal pitch. With performance up to 67 GHz, CoreHC™ ensures excellent signal integrity while the vertical launch design supports efficient board‑level routing—making it an ideal choice for RF, test, and advanced digital systems requiring reliable, repeatable performance.



Grid List
Filters
per page

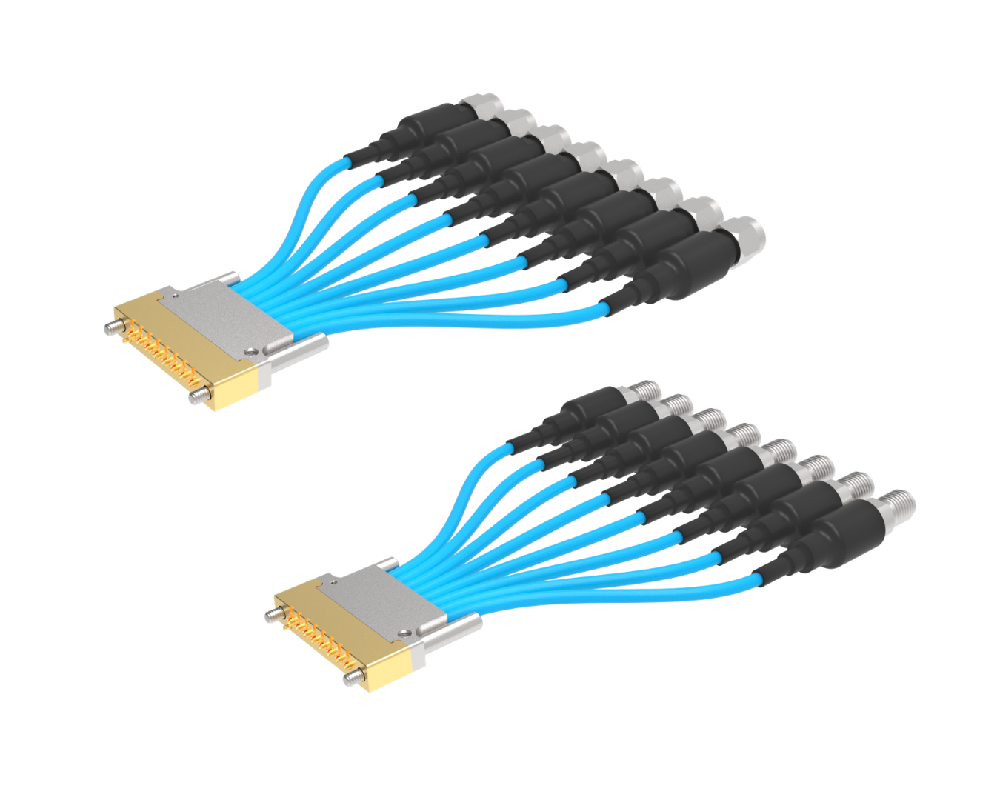

CoreHC 079 Assy, 1xRow HC2 8CH to 2.92mm(F), 016cm

CoreHC 079 Assy, 1xRow HC2 8CH to 2.92mm(F), 016cm

SKU: TM7SSSH28R9FS016C
8 Channel, Vertical Launch, Solderless CoreHC to 2.92mm Female, 16cm Length, +/-2ps phase matched
CoreHC 079 Assy, 1xRow HC2 8CH to 2.92mm(F), 031cm, TM7SSSH28R9FS031C

CoreHC 079 Assy, 1xRow HC2 8CH to 2.92mm(F), 031cm

SKU: TM7SSSH28R9FS031C
8 Channel, Vertical Launch, Solderless CoreHC to 2.92mm Female, 31cm Length, +/-2ps phase matched
CoreHC 079 Assy, 1xRow HC2 8CH to 2.92mm(M), 016cm

CoreHC 079 Assy, 1xRow HC2 8CH to 2.92mm(M), 016cm

SKU: TM7SSSH28R9MS016C
8 Channel, Vertical Launch, Solderless CoreHC to 2.92mm Male, 16cm Length, +/-2ps phase matched
CoreHC 079 Assy, 1xRow HC2 8CH to 2.92mm(M), 031cm

CoreHC 079 Assy, 1xRow HC2 8CH to 2.92mm(M), 031cm

SKU: TM7SSSH28R9MS031C
8 Channel, Vertical Launch, Solderless CoreHC to 2.92mm Male, 31cm Length, +/-2ps phase matched
FeaturesBenefits
  • Up to 67 GHz performance
  • Supports 56 / 112G PAM 4
  • 2.5mm pitch ganged coaxial (signal to signal)
  • Solderless direct PCB attachment
  • Quick connect/disconnect
  • 1000 mating cycle durability
  • Reusable, field-replaceable
  • Low insertion loss
  • Faster prototpying & test set up (no soldering required)
  • Reduced PCB space and BOM cost
  • Improved signal integrity at high data rates
  • Flexible integration across multiple layouts
  • Easy maintenance and reconfirguration
  • Reliable performance in demanding environments
  • Supports next-gen high-speed RF & digital systems



Resources

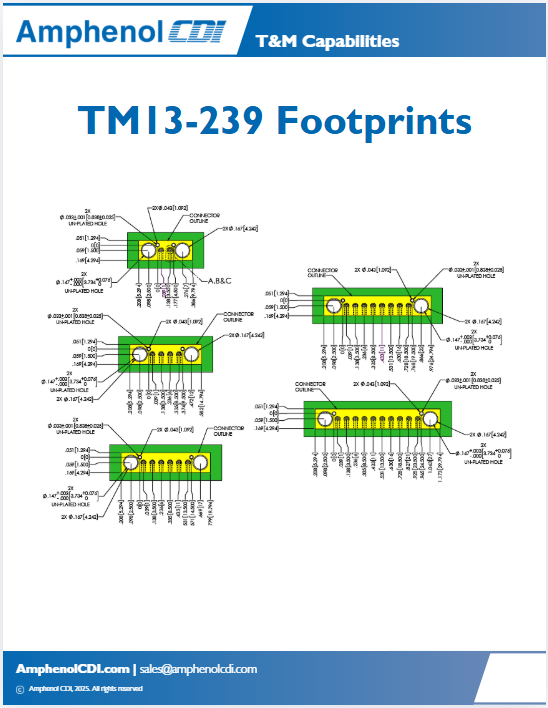

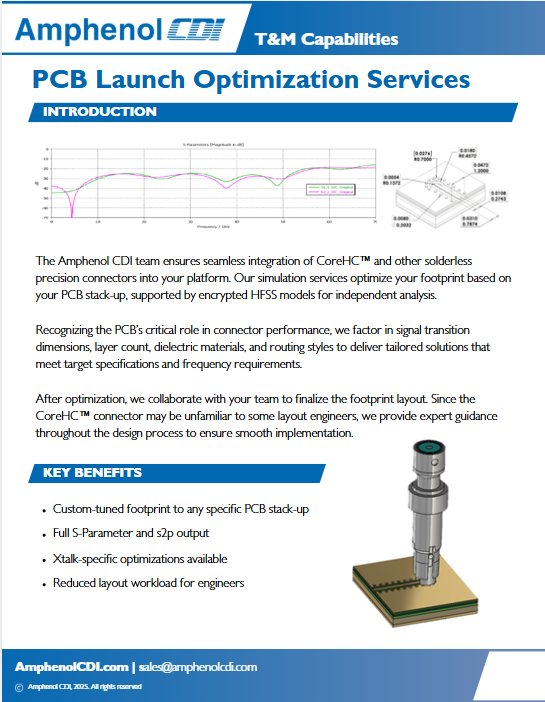

CoreHC™ Information SheetPCB Optimization ServicesFootprints
