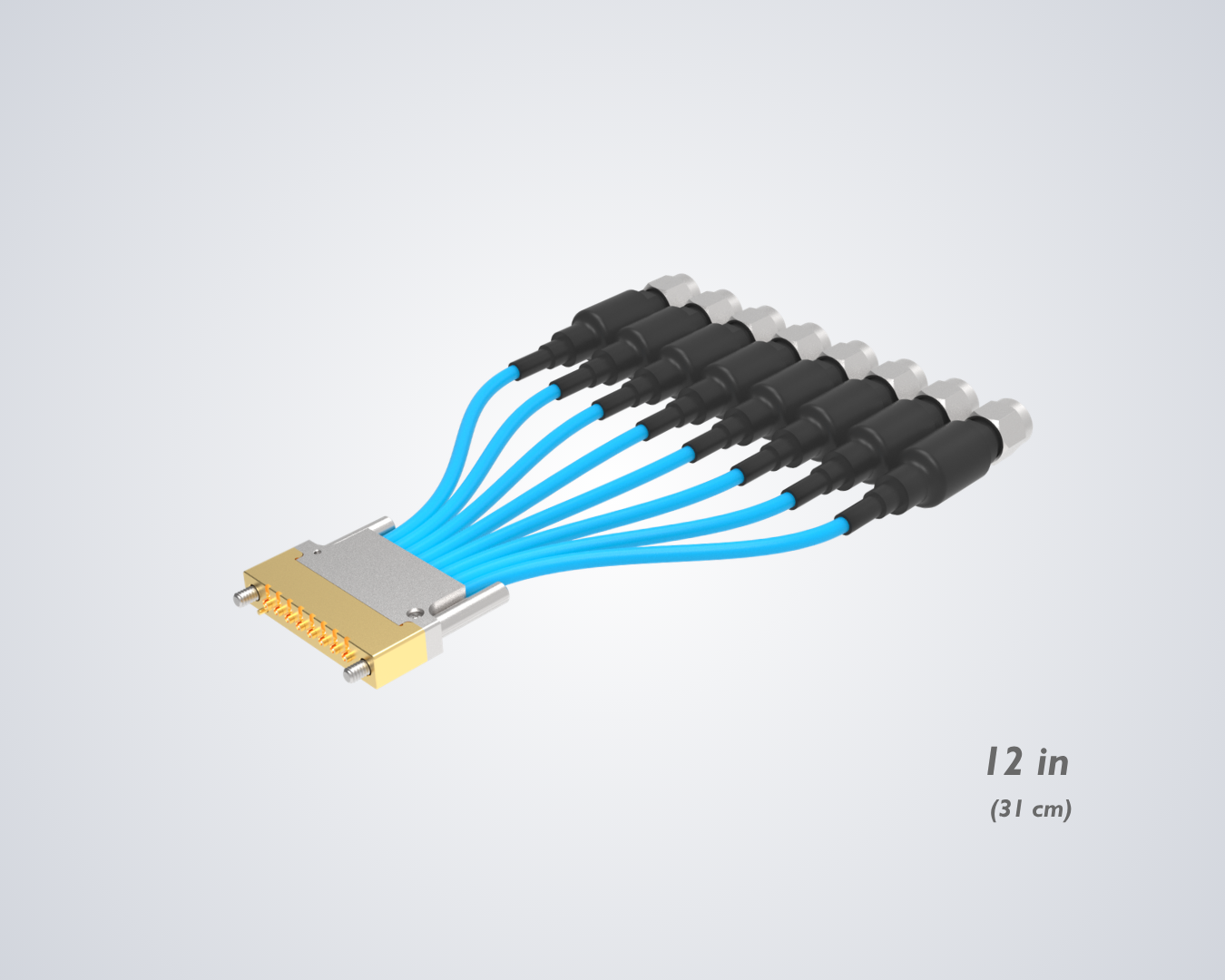

8 Channel CoreHC HC2 Ganged Interconnect to 2.92mm Male Jumper at 31 cm

SKU: TM7SSSH28R9MS031C

8 Channel, Vertical Launch, Solderless CoreHC to 2.92mm Male, 31cm Length, +/-2ps phase matched

Distributor	Quantity	Buy

Products specifications

Attribute name	Attribute value
Packaging	Bag
Contact Termination	Compression
Impedance	50 ohms
Frequency	40 GHz
Number of Ports	8
Housing Finish	Gold
Dielectric Material	PTFE
Operating Temperature	-65°C to +125°C
Gender	Male
RF Series	CoreHC
RF Series 2	2.92 mm
RF Connector Specifications
Mounting Style	Free Hanging (In-Line)
Center Contact Material	BeCu
Center Contact Plating	Gold
Mating Cycles	1000 cycles min
T & M Specifications
Series	CoreHC
Shield Termination	Threaded
Fastening Type	Threaded
Features	Field Replicable, Compliant Mount to PCB
