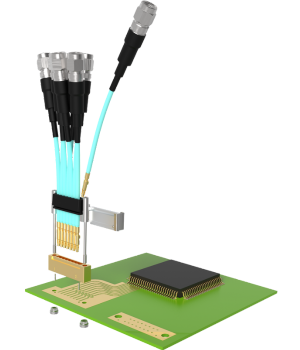

Vertical Launch

CoreHC Edge Mount

Features and Benefits:

  • Low-Loss 0.079”Ø Cable incorporated
  • 2.5 mm Pitch Signal–to-signal
  • Microstrip(CPW) and Stripline Footprint Compatible
  • No additional board-mount leave behind, just the artwork on the board.
  • Sub-assembly design allows for single or multiple channel field refurbishment



Datasheets

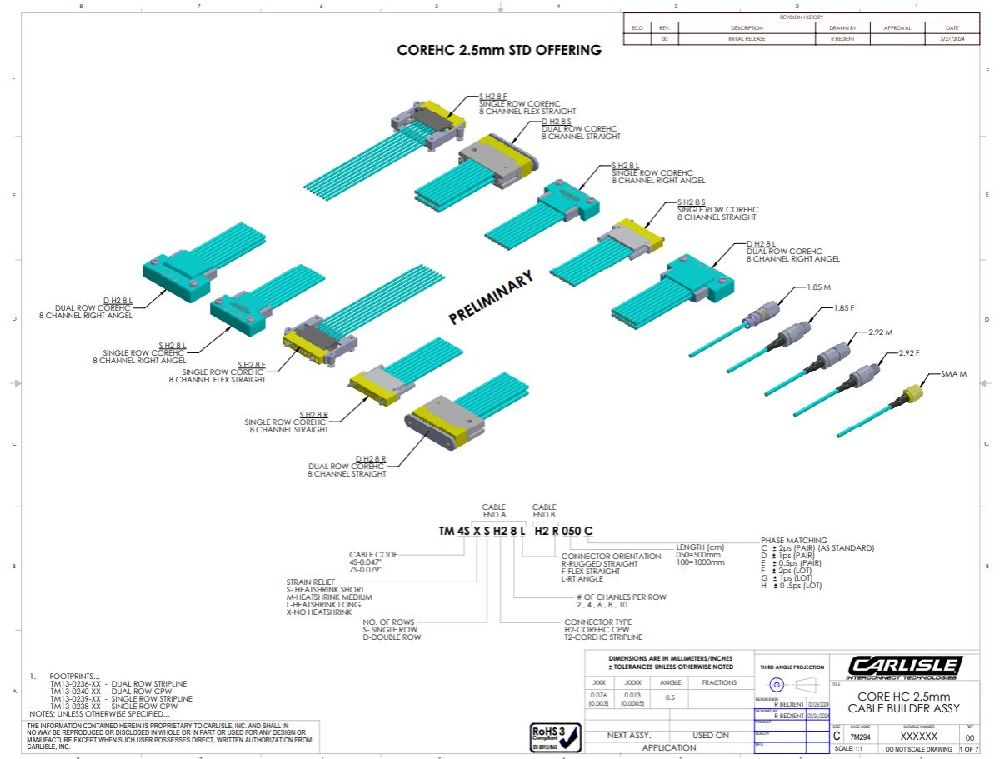

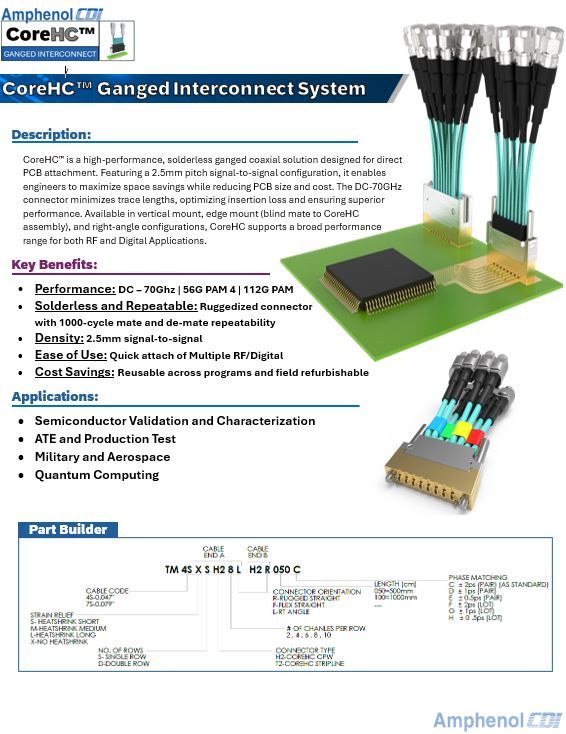

CoreHC™ DatasheetCoreHC™ Cable Builder

HFSS/CST Models

HFSS Encrypted ModelHFSS CST ModelOptimization Services DatasheetOptimization Services Checklist

PCB Footprint

Microstrip(CPW) Single Row FootprintMicrostrip(CPW) Dual Row FootprintStripline Single Row FootprintStripline Dual Row Footprint

Microstrip (CPW) Single row DXFMicrostrip(CPW) Dual Row DXFStripline Single Row DXFStripline Dual Row DXF
Grid List
Filters
per page
0.78 Assembly, SSMP Female to 3.5mm Female, 31cm, 4pS

0.78 Assembly, SSMP Female to 3.5mm Female, 31cm, 4pS

SKU: TM7SSSTS5FS031C
CoreHC 0.78 Assembly, SSMP Female to 3.5mm Female, 31cm, 4pS
8 channel Vertical Launch CoreHC Solderless Ganged Interconnect to 1.85mm Male, 16cm Long

8 channel Vertical Launch CoreHC Solderless Ganged Interconnect to 1.85mm Male. 16cm long

SKU: TM7SSH28S8MS016C
8 Channel, Vertical Launch, Solderless CoreHC to 1.85mm Male, 16cm Length, +/-2ps phase matched
8 channel Vertical Launch CoreHC Solderless Ganged Interconnect to 1.85mm Male, TM7SSH28S8MS031C

8 channel Vertical Launch CoreHC Solderless Ganged Interconnect to 1.85mm Male. 31cm long

SKU: TM7SSH28S8MS031C
8 Channel, Vertical Launch, Solderless CoreHC to 1.85mm Male, 31cm Length, +/-2ps phase matched
8 channel Vertical Launch CoreHC Solderless Ganged Interconnect to 2.4mm Male, TM7SSH28S4MS016C

8 channel Vertical Launch CoreHC Solderless Ganged Interconnect to 2.4mm Male. 16cm long

SKU: TM7SSH28S4MS016C
8 Channel, Vertical Launch, Solderless CoreHC to 2.4mm Male, 16cm Length, +/-2ps phase matched
8 channel Vertical Launch CoreHC Solderless Ganged Interconnect to 2.4mm Male, TM7SSH28S4MS031C

8 channel Vertical Launch CoreHC Solderless Ganged Interconnect to 2.4mm Male. 31cm long

SKU: TM7SSH28S4MS031C
8 Channel, Vertical Launch, Solderless CoreHC to 2.4mm Male, 31cm Length, +/-2ps phase matched
8 channel Vertical Launch CoreHC Solderless Ganged Interconnect to 2.92mm Male, TM7SSH28S9MS016C

8 channel Vertical Launch CoreHC Solderless Ganged Interconnect to 2.92mm Male. 16cm long

SKU: TM7SSH28S9MS016C
8 Channel, Vertical Launch, Solderless CoreHC to 2.92mm Male, 16cm Length, +/-2ps phase matched
8 channel Vertical Launch CoreHC Solderless Ganged Interconnect to 2.92mm Male, TM7SSH28S9MS031C

8 channel Vertical Launch CoreHC Solderless Ganged Interconnect to 2.92mm Male. 31cm long

SKU: TM7SSH28S9MS031C
8 Channel, Vertical Launch, Solderless CoreHC to 2.92mm Male, 31cm Length, +/-2ps phase matched
8 channel Vertical Launch CoreHC Solderless Ganged Interconnect to 3.5mm Male, 16cm Long

8 channel Vertical Launch CoreHC Solderless Ganged Interconnect to 3.5mm Male. 16cm long

SKU: TM7SSH28S5MS016C
8 Channel, Vertical Launch, Solderless CoreHC to 3.5mm Male, 16cm Length, +/-2ps phase matched
8 channel Vertical Launch CoreHC Solderless Ganged Interconnect to 3.5mm Male, TM7SSH28S5MS031C

8 channel Vertical Launch CoreHC Solderless Ganged Interconnect to 3.5mm Male. 31cm long

SKU: TM7SSH28S5MS031C
8 Channel, Vertical Launch, Solderless CoreHC to 3.5mm Male, 31cm Length, +/-2ps phase matched
