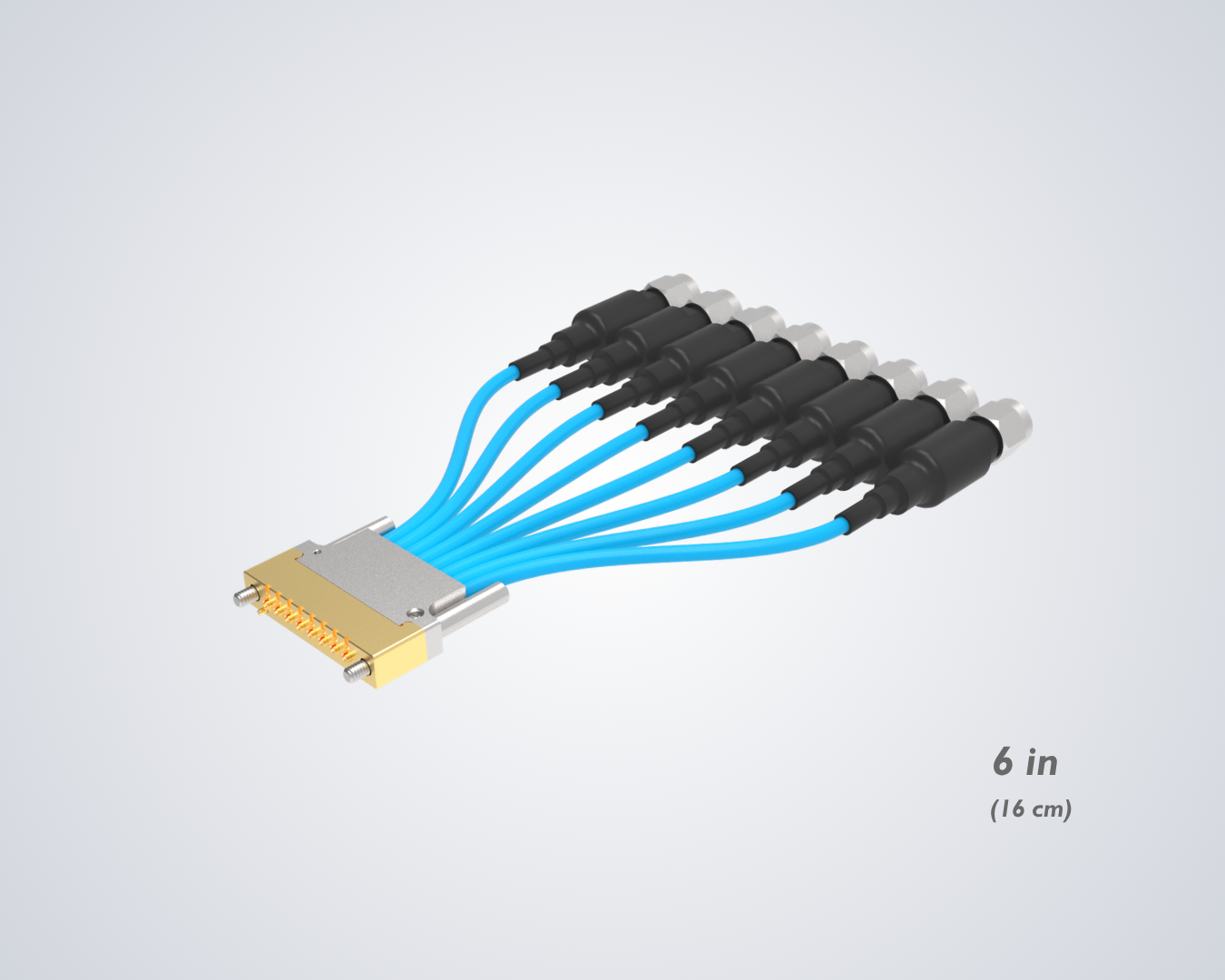

8 Channel CoreHC HC2 Ganged Interconnect to 2.92mm Male Jumper at 16 cm

8 Channel, Vertical Launch, Solderless CoreHC to 2.92mm Male, 16cm Length, +/-2ps phase matched
SKU: TM7SSSH28R9MS016C
8 Channel, Vertical Launch, Solderless CoreHC to 2.92mm Male, 16cm Length, +/-2ps phase matched
Distributor Quantity Buy
Contact Us
Products specifications
Attribute name Attribute value
Packaging Bag
Contact Termination Compression
Impedance 50 ohms
Frequency 40 GHz
Number of Ports 8
Housing Finish Gold
Dielectric Material PTFE
Operating Temperature -65°C to +125°C
Gender Male
RF Series CoreHC
RF Series 2 2.92 mm
RF Connector Specifications
Mounting Style Free Hanging (In-Line)
Center Contact Material BeCu
Center Contact Plating Gold
Mating Cycles 1000 cycles min
T & M Specifications
Series CoreHC
Shield Termination Threaded
Fastening Type Threaded
Features Field Replicable, Compliant Mount to PCB
*
*
*
Products specifications
Attribute name Attribute value
Packaging Bag
Contact Termination Compression
Impedance 50 ohms
Frequency 40 GHz
Number of Ports 8
Housing Finish Gold
Dielectric Material PTFE
Operating Temperature -65°C to +125°C
Gender Male
RF Series CoreHC
RF Series 2 2.92 mm
RF Connector Specifications
Mounting Style Free Hanging (In-Line)
Center Contact Material BeCu
Center Contact Plating Gold
Mating Cycles 1000 cycles min
T & M Specifications
Series CoreHC
Shield Termination Threaded
Fastening Type Threaded
Features Field Replicable, Compliant Mount to PCB
