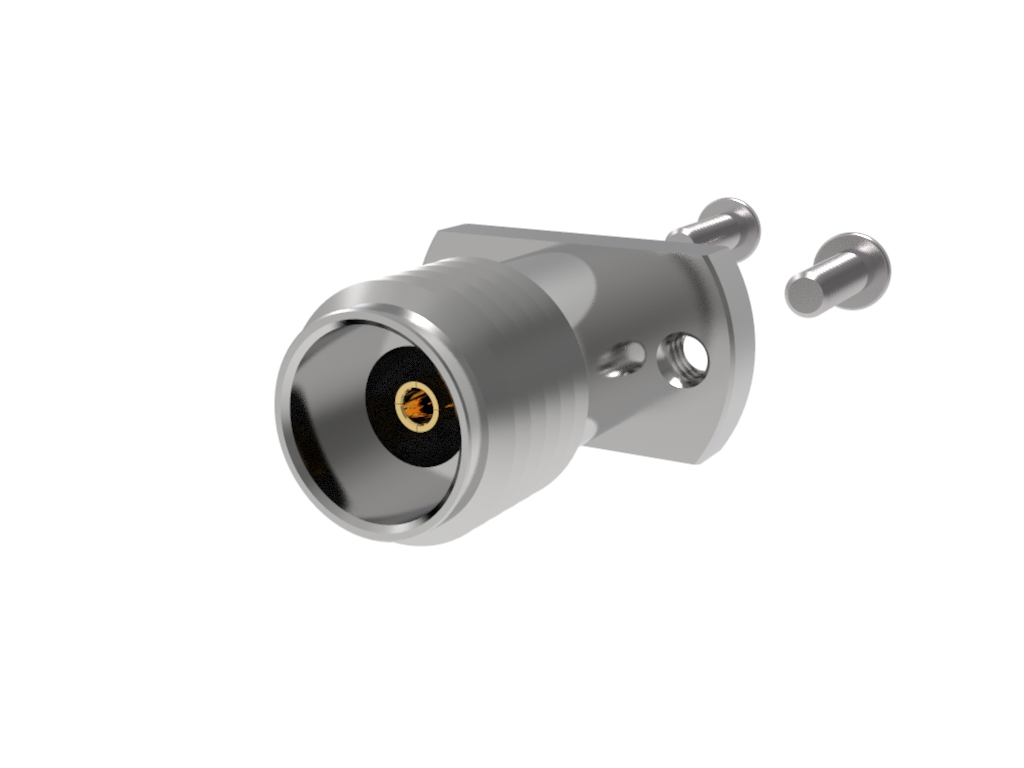

2.92mm Female Solderless PCB Compression Mount Connector, 2 Hole

2.92mm Female, Jack, Vertical Mount, Solderless PCB Compression Mount Connector, 2 hole
SKU: TMB-V9F2-3L1
2.92mm Female, Jack, Vertical Mount, Solderless PCB Compression Mount Connector, 2 hole
Distributor Quantity Buy
Contact Us
Products specifications
Attribute name Attribute value
Operating Temperature -55°C to + 85°C
Packaging Tray
Contact Termination Compression
Impedance 50 ohms
Frequency 40 GHz
Number of Ports 1
Housing Finish Passivated SST
Dielectric Material PTFE
Insertion Loss 0.2 dB
Gender Female
RF Series 2.92 mm
RF Connector Specifications
Mounting Style Surface
Center Contact Material BeCu
Body Material SST
Center Contact Plating Gold
Voltage 500 Vrms max @ sea level
Mating Cycles 500 Cycles
T & M Specifications
Connector Type Jack, Female Socket
Shield Termination Threaded
Fastening Type Threaded
Features Field Replicable, Compliant Mount to PCB
*
*
*
