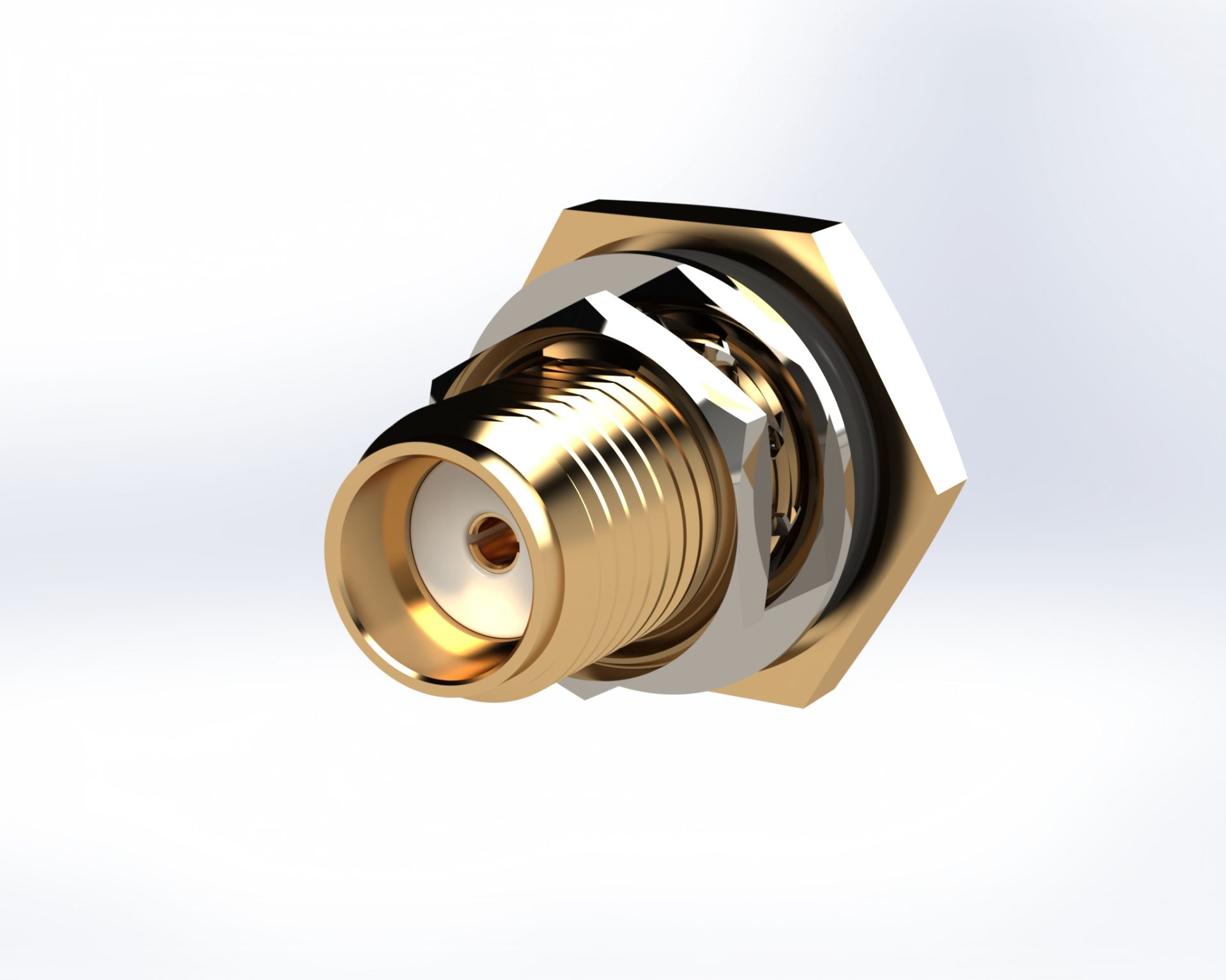

SMA Female Bulkhead, Straight .085 Semi Rigid

The SMA Female Bulkhead, straight .085 Semi Rigid from Amphenol CDI is engineered for reliability and precision in high-frequency signal transmission. Ideal for aerospace, defense, and telecommunications, this connector ensures consistent performance in demanding environments.
SKU: 5289-2SF
The SMA Female Bulkhead, straight .085 Semi Rigid from Amphenol CDI is engineered for reliability and precision in high-frequency signal transmission. Ideal for aerospace, defense, and telecommunications, this connector ensures consistent performance in demanding environments.
Distributor Quantity Buy
Contact Us
Products specifications
Attribute name Attribute value
Contact Termination COAX
Housing Finish Passivate
RF Connector Specifications
Connector Series SMA
Body Style Straight
Impedance 50 ohms
Mounting Style Bulkhead
Detent N/A
Gender Female
Hermetic No
Body Plating Gold
Termination COAX
Cable Termination .085 S/R
Interface Type N/A
Center Contact Plating Gold
Dielectric Material PTFE
Center Contact Material BeCu
Operating Temperature -65°C to +165°C
Voltage 335 Vrms max @ sea level
Mating Cycles 500 cycles min
Insertion Loss .03 √f(GHz)
Max Frequency 18 GHz
Body Material 303 SST
*
*
*
