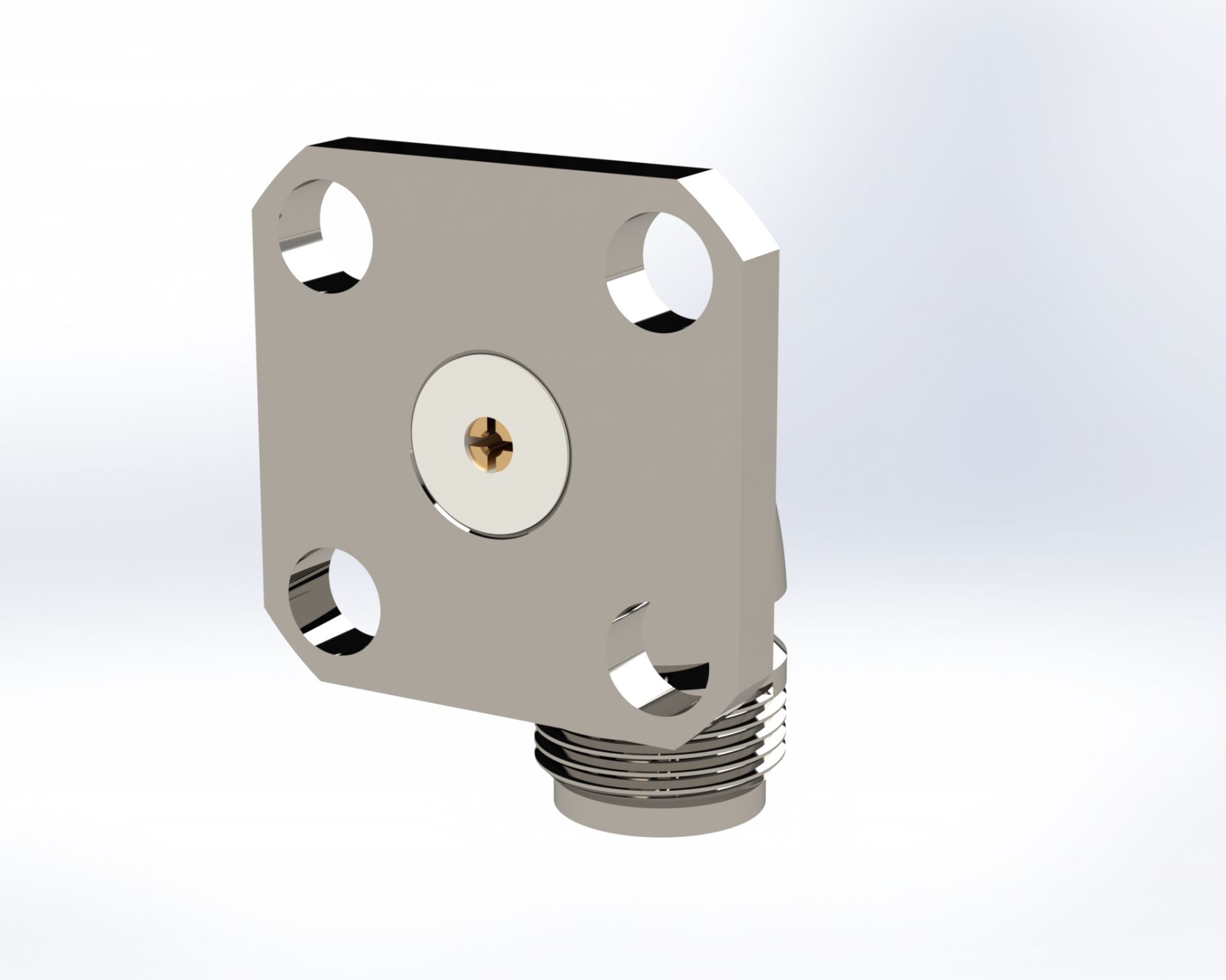

SMA Female Radius Right Angle to Field Replaceable (.015) PIN

The SMA Female Jack from Amphenol CDI is engineered for reliability and precision in high-frequency signal transmission. Ideal for aerospace, defense, and telecommunications, this connector ensures consistent performance in demanding environments.

SKU: 5530-5CCSF

Distributor	Quantity	Buy

Specifications
Contact Us

Products specifications

Attribute name	Attribute value
Contact Termination	Field Rep.
Housing Finish	Passivate
RF Connector Specifications
Connector Series	SMA
Body Style	Swept Right Angle
Impedance	50 ohms
Mounting Style	4 Hole PNL.
Detent	N/A
Gender	Female
Hermetic	No
Body Plating	Gold
Termination	COAX
Cable Termination	N/A
Interface Type	N/A
Center Contact Plating	Gold
Dielectric Material	PTFE
Center Contact Material	BeCu
Operating Temperature	-65°C to +165°C
Voltage	335 Vrms max @ sea level
Mating Cycles	500 cycles min
Insertion Loss	.10 dB max @ 6 GHz
Max Frequency	18 GHz
Body Material	304 SST
