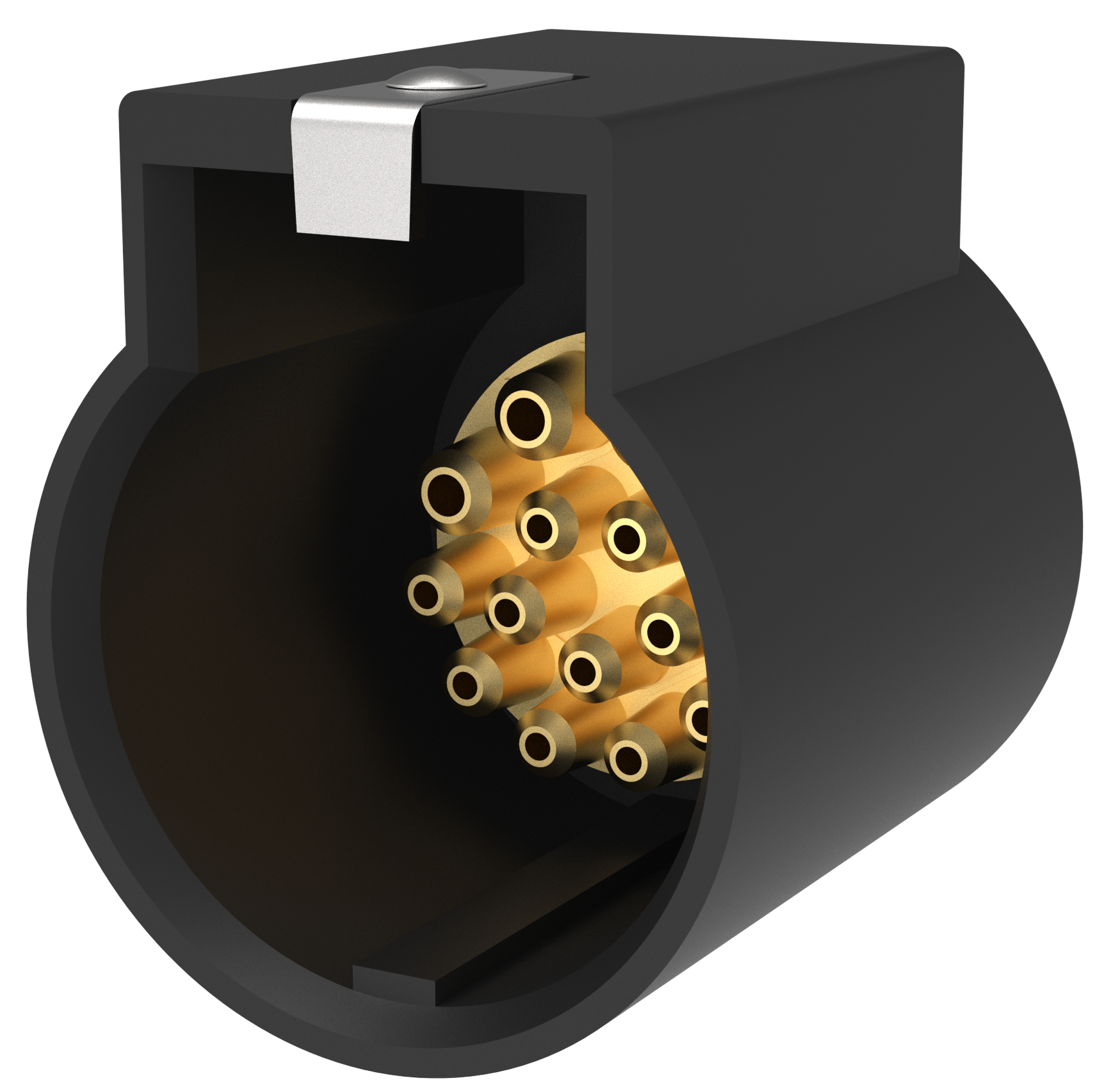

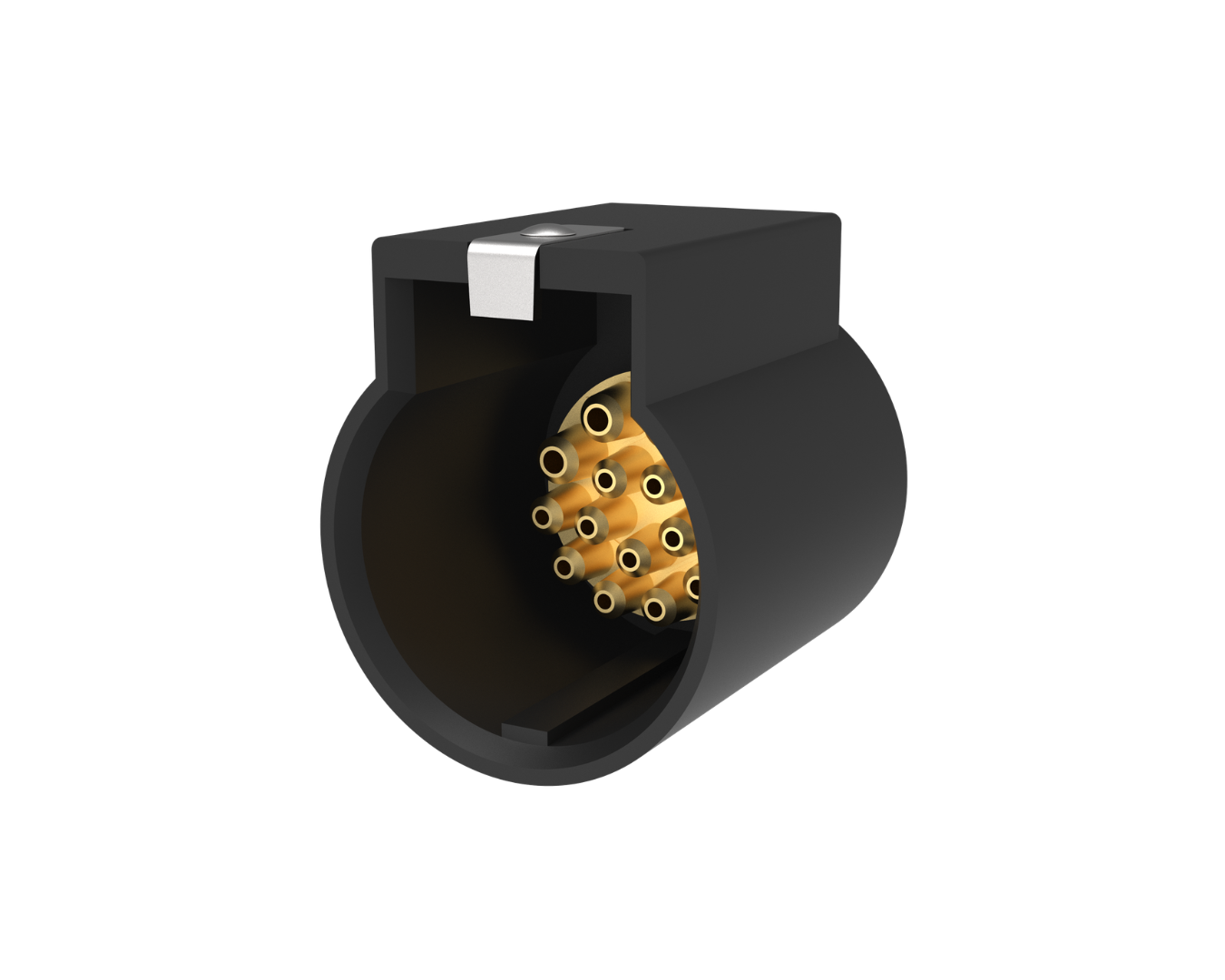

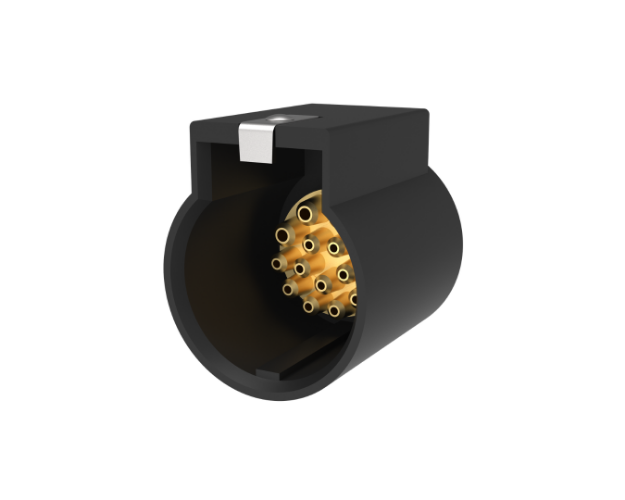

Quick Disconnect Keyhole Shorting Receptacle, Non-environmental, 15 Position, Pin Contacts

Distributor Quantity Buy
SKU: CB02-15P-1
Products specifications
Attribute name Attribute value
DC Products
Series CB Series
Environmental Non - Environmental
Shell Style Receptacle
Termination Type PC Tail
Pins 15
Contact Type Pin
Operating Temperature -55 °C to + 85 °C
Shell Circular, Keyhole
Operating Voltage 1509 VAC
Contact Size 20/16
Size 20 Contact Amps 7.5
Size 16 Contact Amps 13
Shell Material High Grade Dielectric
Insulator Material High Temp Dielectric
Grommet Material Silicone
Eylet Material Brass / Nickel Plated
Contact Material Gold Plated
*
*
*
Products specifications
Attribute name Attribute value
DC Products
Series CB Series
Environmental Non - Environmental
Shell Style Receptacle
Termination Type PC Tail
Pins 15
Contact Type Pin
Operating Temperature -55 °C to + 85 °C
Shell Circular, Keyhole
Operating Voltage 1509 VAC
Contact Size 20/16
Size 20 Contact Amps 7.5
Size 16 Contact Amps 13
Shell Material High Grade Dielectric
Insulator Material High Temp Dielectric
Grommet Material Silicone
Eylet Material Brass / Nickel Plated
Contact Material Gold Plated
