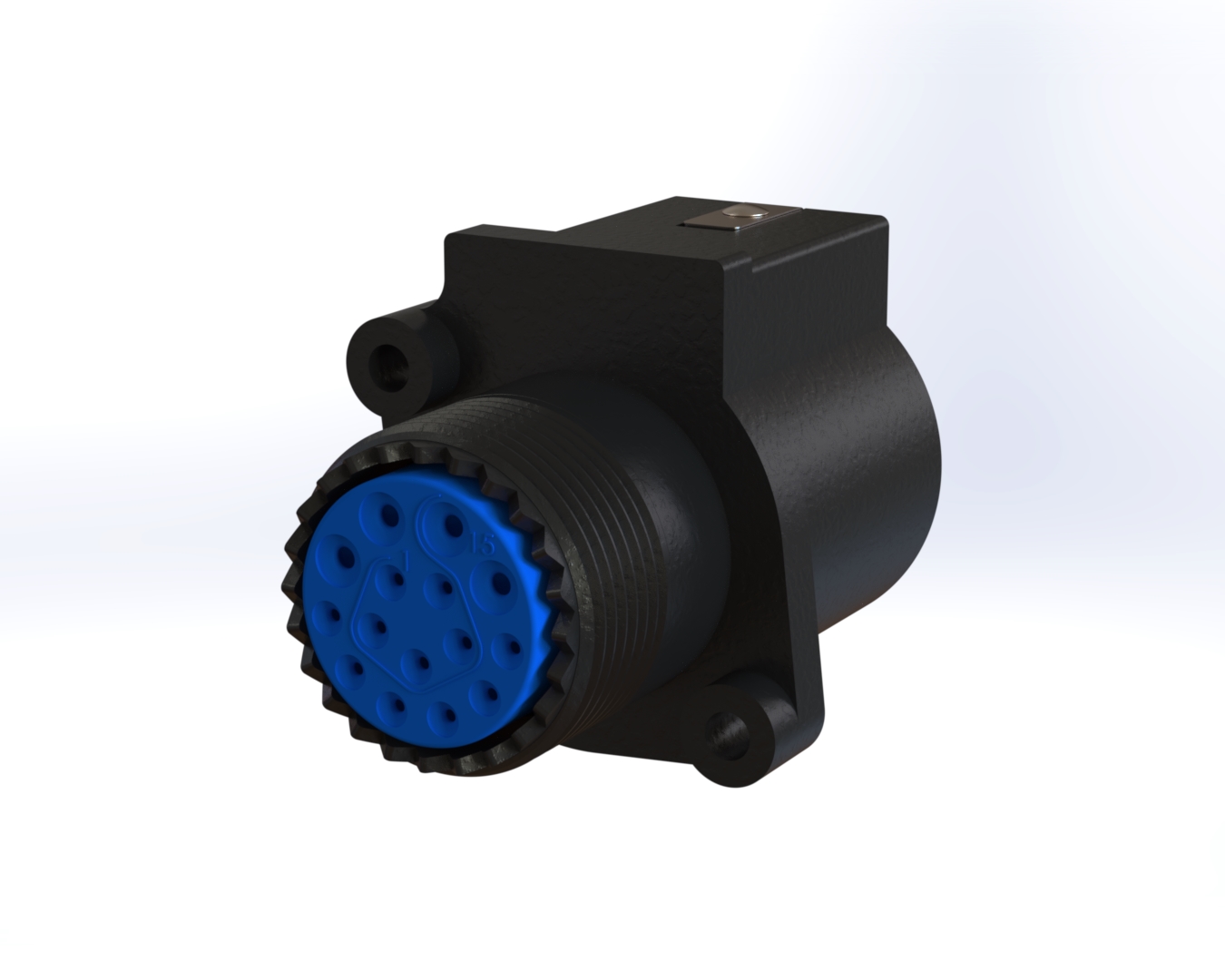

Quick Disconnect Keyhole Receptacle, Environmental, 2 Hole Flange, 15 Position, Crimp, Pin

Distributor Quantity Buy
SKU: CBRE02C-15P
Products specifications
Attribute name Attribute value
DC Products
Series CB Series
Environmental Receptacle Environmental
Shell Style Receptacle
Termination Type Crimp
Pins 15
Contact Type Pin
Operating Temperature -55 °C to + 85 °C
Shell Circular, Keyhole
Operating Voltage 1502 VAC
Contact Size 20/16
Size 20 Contact Amps 7.5
Size 16 Contact Amps 13
Shell Material High Grade Dielectric
Insulator Material High Temp Dielectric
Grommet Material Silicone
Eylet Material Brass / Nickel Plated
Contact Material Gold Plated
*
*
*
