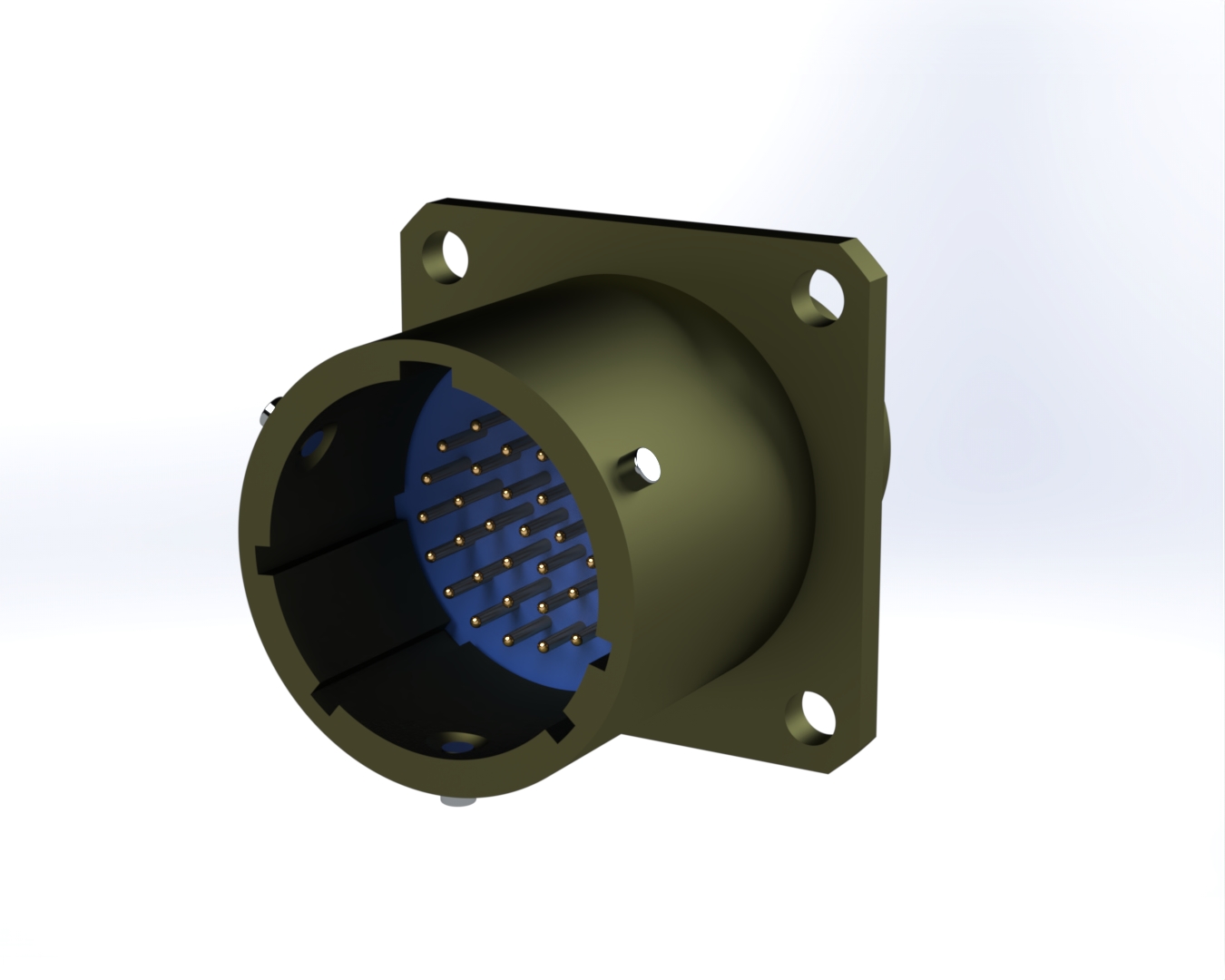

Shell Configurations
|
MIL-DTL-38999 |
|
Series
|
1 |
|
Shell Style
|
Back Panel Mount Wall/Box Mount Receptacle (Series I, II) |
|
Termination Type
|
PC Tail |
|
Shell Sizes
|
14/15 |
|
Shell Finish
|
Olive Drab Cadmium Nickel (W) |
|
Filter Characteristics
|
PL |
|
Contact Type
|
Pin |
|
Modifier
|
N/A |
|
Polarization
|
N |
|
Temperature Range
|
-55°C to +125°C |
|
Voltage Range
|
100 VDC to 2500 VDC |
|
Temperature Cycling
|
Method 1003, MIL-STD-1344, Condition A |
|
Moisture Resistance
|
MIL-STD-202, Method 106 |
|
Durability
|
500 Matings at a rate of 200+/- 100 cycles per hour |
|
Shock
|
Method 2004, MIL-STD-1344, Test Condition D |
|
Vibration
|
Method 2005, MIL-STD-1344, Test Condition VI, letter J, 8 Hours longitudinal and perpendicular axes |
|
Salt Spray
|
MIL-STD-202, Method 101, Condition B |
|
Humidity
|
MIL-STD-1344, Method 1002, Condition B |
|
Fluid Immersion
|
MIL-STD-1344, Method 1016, Fluids (a) and (d) |
|
Contact Arrangement
|
35 |
