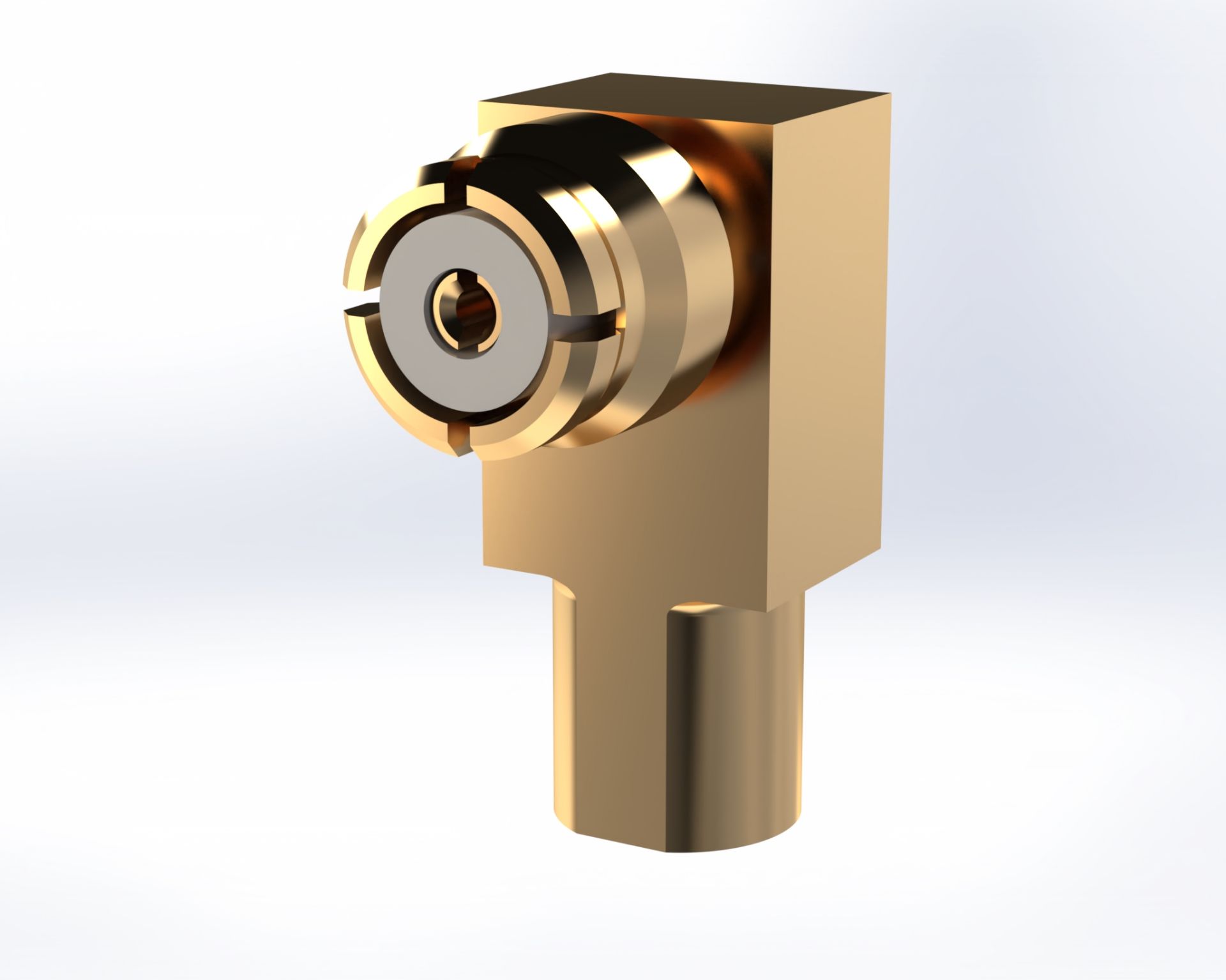

SMP Female MTR Right Angle, TLLXX-1087, Angled Body

The SMP Female MTR Right Angle, TLLXX-1087, Angled Body from Amphenol CDI is engineered for reliability and precision in high-frequency signal transmission. Ideal for aerospace, defense, and telecommunications, this connector ensures consistent performance in demanding environments.

SKU: P600-9CC

Distributor	Quantity	Buy

Specifications
Contact Us

Products specifications

Attribute name	Attribute value
Contact Termination	COAX
Housing Finish	Gold
RF Connector Specifications
Connector Series	SMP
Body Style	MITER Right Angle
Impedance	50 ohms
Mounting Style	N/A
Detent	N/A
Gender	Female
Hermetic	No
Body Plating	Passivate
Termination	COAX
Cable Termination	TLLXX-1087
Interface Type	N/A
Center Contact Plating	Gold
Dielectric Material	PTFE Teflon
Center Contact Material	BeCu
Operating Temperature	-65°C to +165°C
Voltage	335 Vrms max @ sea level
Mating Cycles	N/A
Insertion Loss	.10 dB max @ 18 GHz
Max Frequency	18 GHz
Body Material	BeCu
