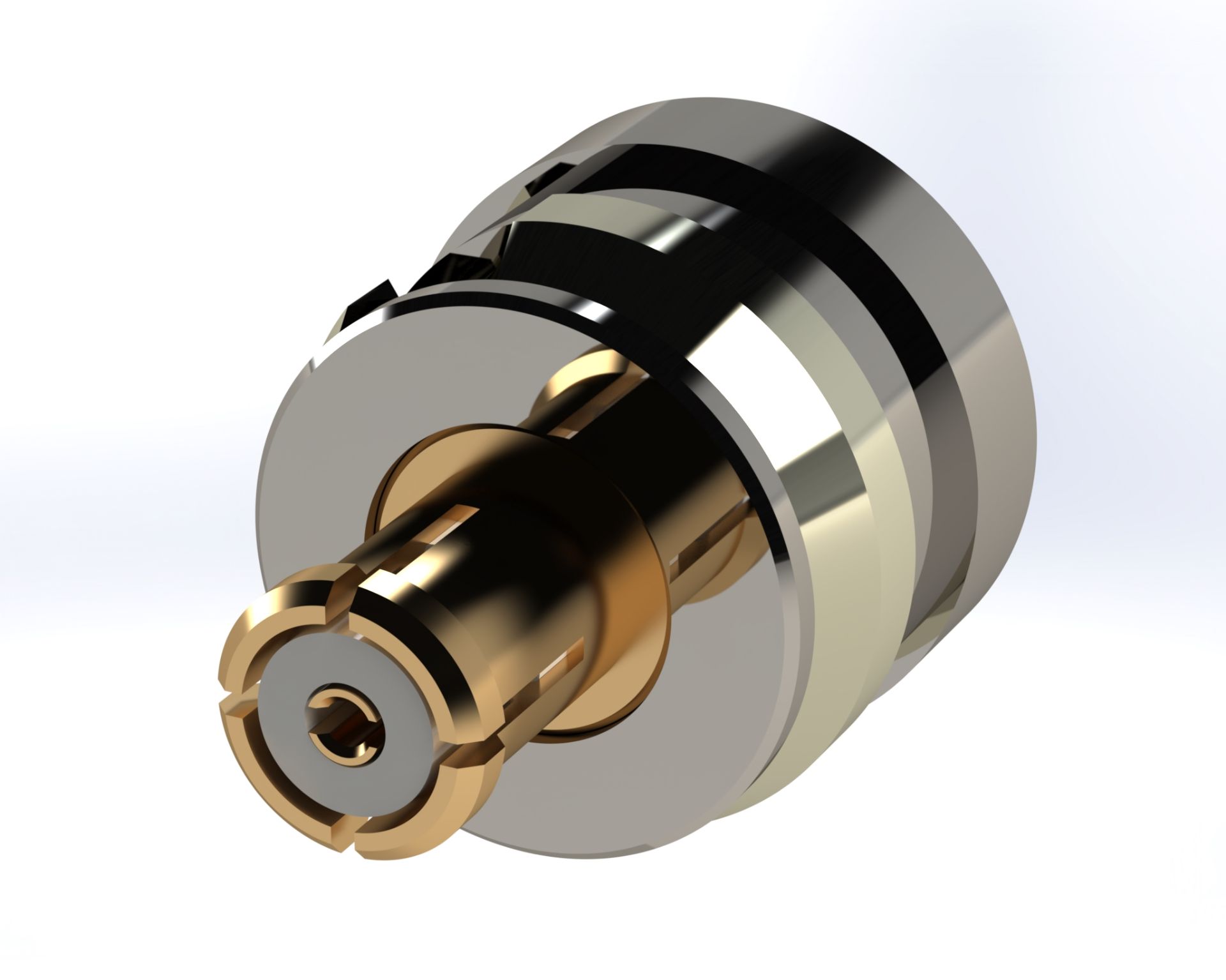

SMP Female Straight Float, Panel Mount for Low Loss XX-1087

The SMP Female Straight Float, Panel Mount for Low Loss XX-1087 from Amphenol CDI is engineered for reliability and precision in high-frequency signal transmission. Ideal for aerospace, defense, and telecommunications, this connector ensures consistent performance in demanding environments.

SKU: P658-3CC

Distributor	Quantity	Buy

Specifications
Contact Us

Products specifications

Attribute name	Attribute value
Contact Termination	COAX
Housing Finish	Gold
RF Connector Specifications
Connector Series	SMP
Body Style	Straight
Impedance	50 ohms
Mounting Style	N/A
Detent	N/A
Gender	Female
Hermetic	No
Body Plating	Passivate
Termination	Terminal
Cable Termination	TLLXX-1087
Interface Type	N/A
Center Contact Plating	Gold
Dielectric Material	PTFE
Center Contact Material	BeCu
Operating Temperature	-65°C to +165°C
Voltage	500 Vrms max @ sea level, 125 Vrms @70,000ft
Mating Cycles	100 cycles min
Insertion Loss	.04 √f(GHz)
Max Frequency	18 GHz
Body Material	303 SST
