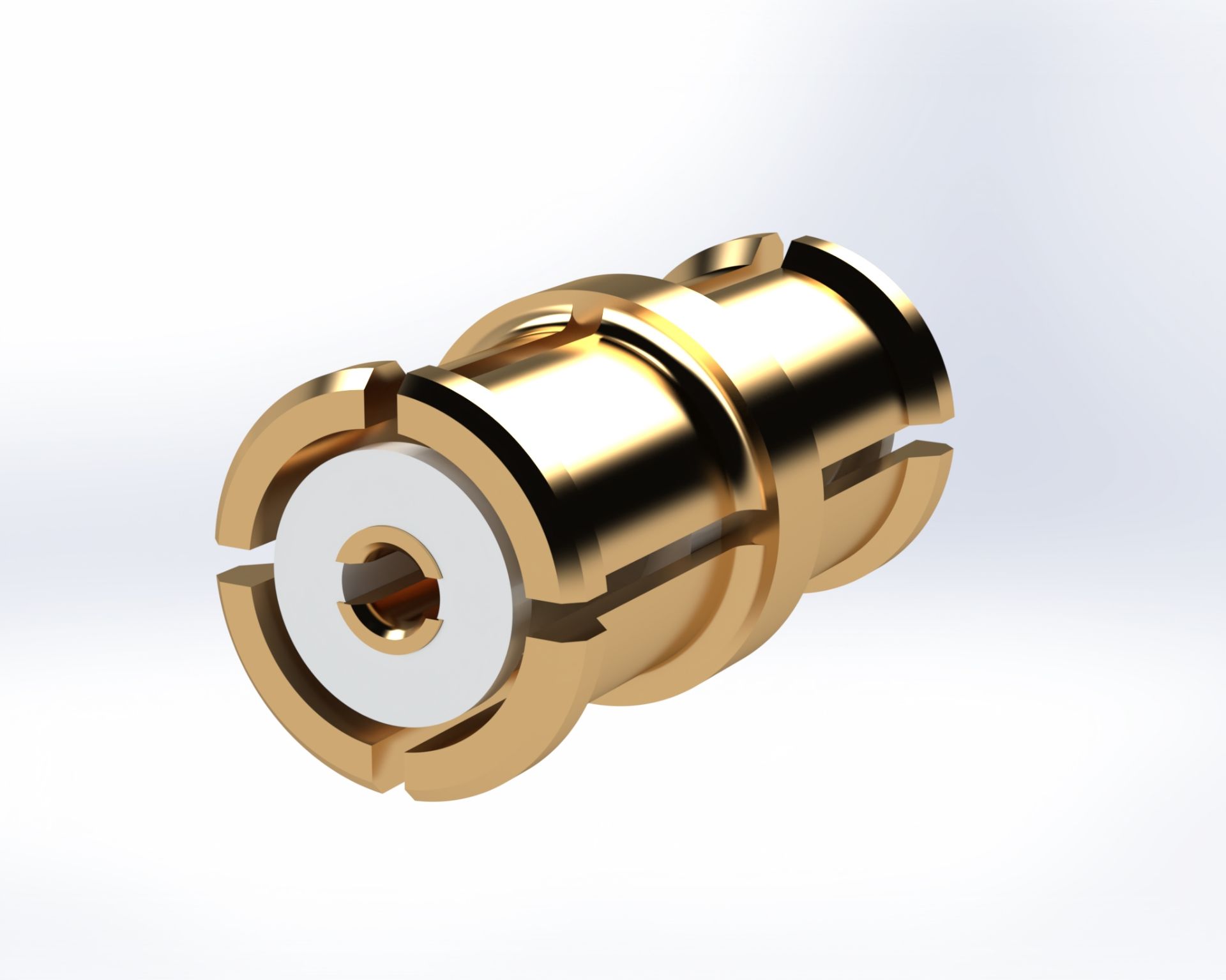

SMP Female to Female Bullet Adapter .254 L

The SMP Female to Female Bullet Adapter .254 L from Amphenol CDI is engineered for reliability and precision in high-frequency signal transmission. Ideal for aerospace, defense, and telecommunications, this connector ensures consistent performance in demanding environments.

SKU: P650-1CC

Distributor	Quantity	Buy

Specifications
Contact Us

Products specifications

Attribute name	Attribute value
RF Connector Specifications
Max Frequency	40 GHz
Center Contact Plating	Gold
Body Material	BeCu
Mating Cycles	500 cycles min
Insertion Loss	.04 √f(GHz)
Operating Temperature	-65°C to +165°C
Voltage	335 Vrms max @ sea level
RF Adapter Specifications
Ohm	50 ohms
Body Style	Straight
Interface 1 Type	SMP
Interface 1 Gender	Female
Interface 2 Type	SMP
Interface 2 Gender	Female
Mount	N/A
Detent	N/A
Hermetic	No
Body Plating	Gold
