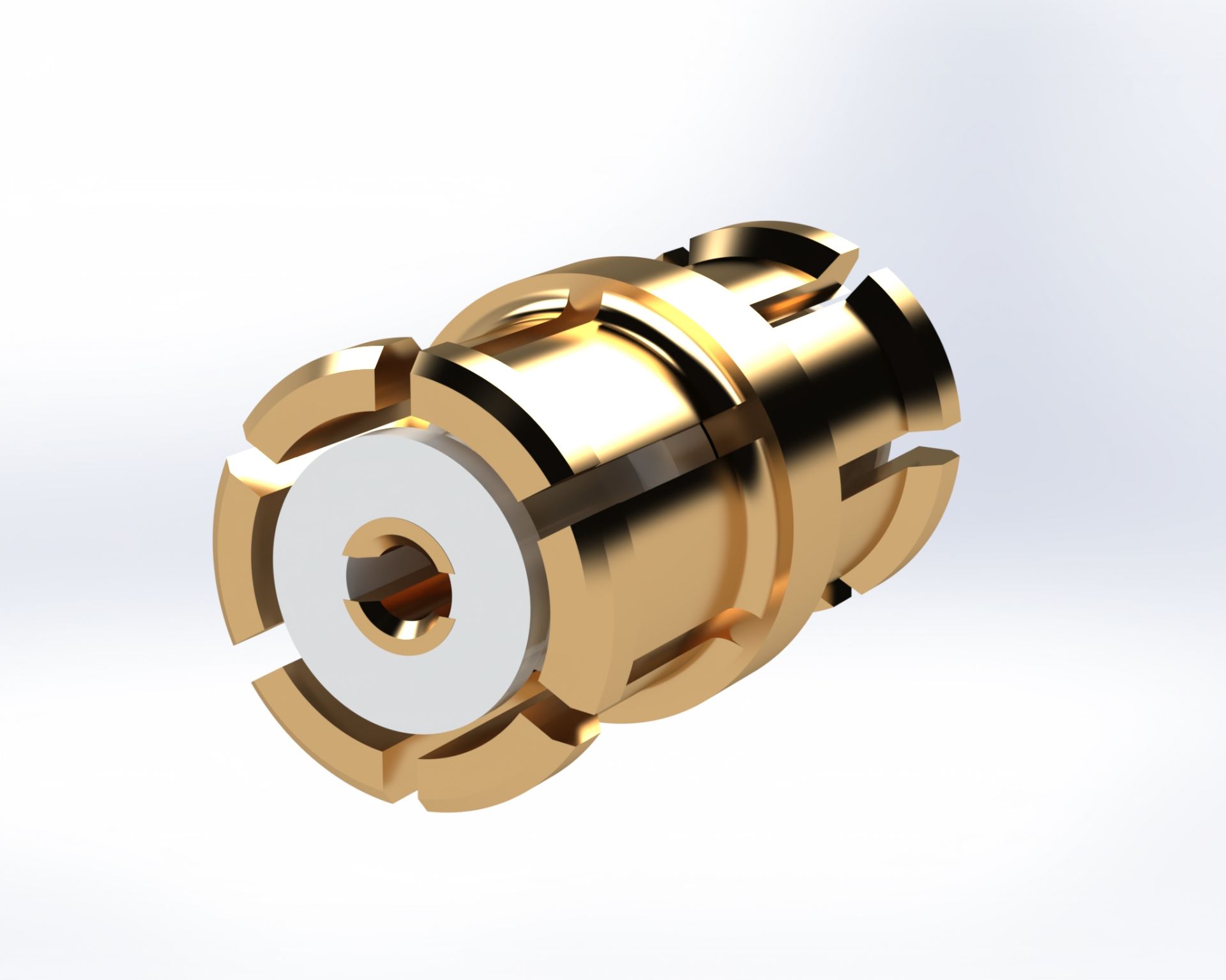

Bullet SMP Female to SMP Female, .224 L

SKU: P650-2CC
Distributor Quantity Buy
Contact Us
Products specifications
Attribute name Attribute value
RF Connector Specifications
Max Frequency 40 GHz
Center Contact Plating Gold
Body Material BeCu
Mating Cycles 500 cycles min
Insertion Loss .04 √f(GHz)
Operating Temperature -65°C to +165°C
Voltage 335 Vrms max @ sea level
RF Adapter Specifications
Ohm 50 ohms
Body Style Straight
Interface 1 Type SMA
Interface 1 Gender Female
Interface 2 Type SMP
Interface 2 Gender Female
Mount N/A
Detent N/A
Hermetic No
Body Plating Gold
*
*
*
Products specifications
Attribute name Attribute value
RF Connector Specifications
Max Frequency 40 GHz
Center Contact Plating Gold
Body Material BeCu
Mating Cycles 500 cycles min
Insertion Loss .04 √f(GHz)
Operating Temperature -65°C to +165°C
Voltage 335 Vrms max @ sea level
RF Adapter Specifications
Ohm 50 ohms
Body Style Straight
Interface 1 Type SMA
Interface 1 Gender Female
Interface 2 Type SMP
Interface 2 Gender Female
Mount N/A
Detent N/A
Hermetic No
Body Plating Gold
