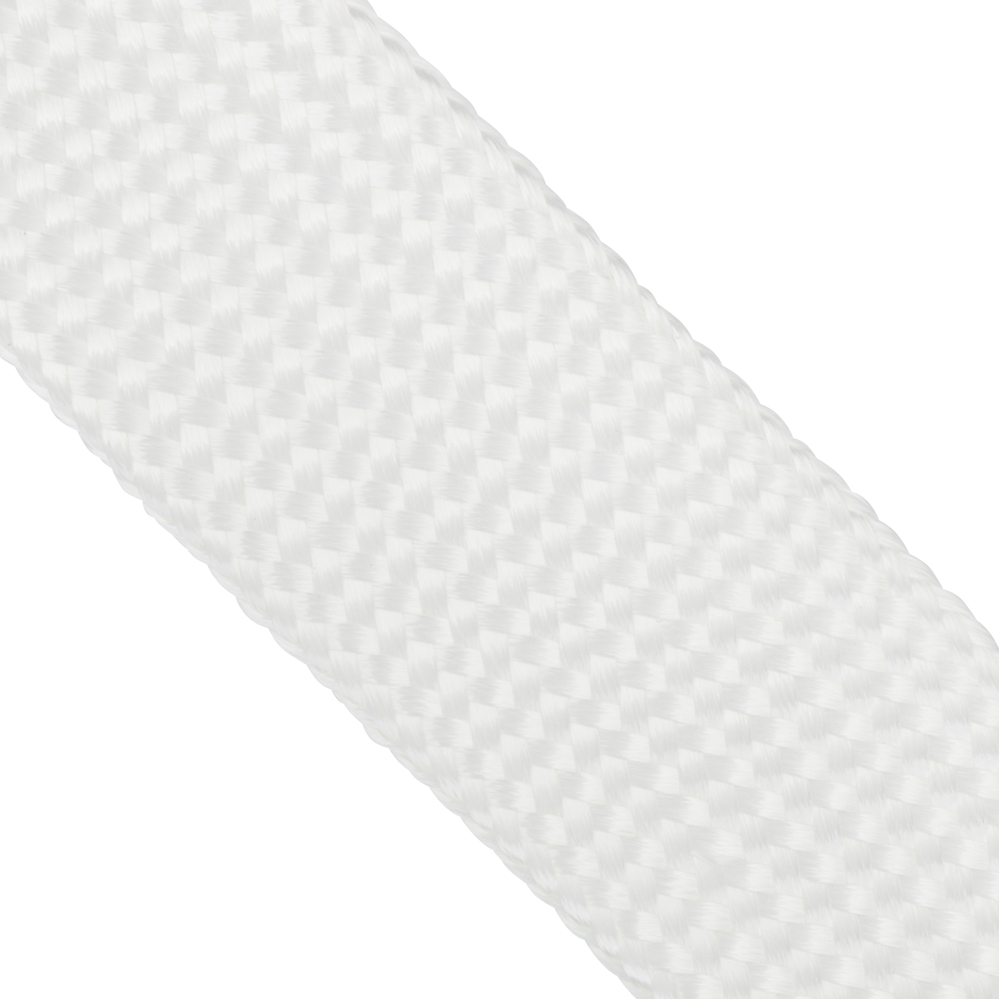

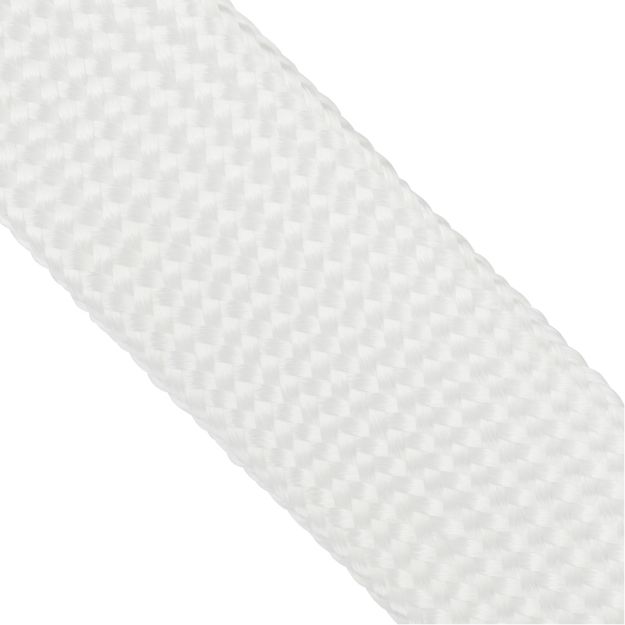

SF1200 S Glass Sleeving

The Amphenol CDI Heavy wall fiberglass sleeving utilizes Type E Fiberglass textiles. Available in 5/8", .250"- 3.500" sleeving.
SKU: SF1200
The Amphenol CDI Heavy wall fiberglass sleeving utilizes Type E Fiberglass textiles. Available in 5/8", .250"- 3.500" sleeving.
Distributor Quantity Buy
Contact Us
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute name Attribute value
Braided Product Specifications
Fiber Type Yarn
Temperature Rating +1000°F (538°C)
Breaking Tenacity 19.8 gms/denier
Tensile Strength 709,000 psi (4888 Mpa)
Breaking Elongation 5.7%
Specific Gravity 2.48 gms/cc
Abrasion Resistance Poor
Heat Resistance Very Good
Flame Retardancy Will not Burn
Acid Resistance Good
Alkali Resistance Good
MIL-SPEC MIL-R-60346 Type IV, Class I
*
*
*
Products specifications
Attribute name Attribute value
Braided Product Specifications
Fiber Type Yarn
Temperature Rating +1000°F (538°C)
Breaking Tenacity 19.8 gms/denier
Tensile Strength 709,000 psi (4888 Mpa)
Breaking Elongation 5.7%
Specific Gravity 2.48 gms/cc
Abrasion Resistance Poor
Heat Resistance Very Good
Flame Retardancy Will not Burn
Acid Resistance Good
Alkali Resistance Good
MIL-SPEC MIL-R-60346 Type IV, Class I
