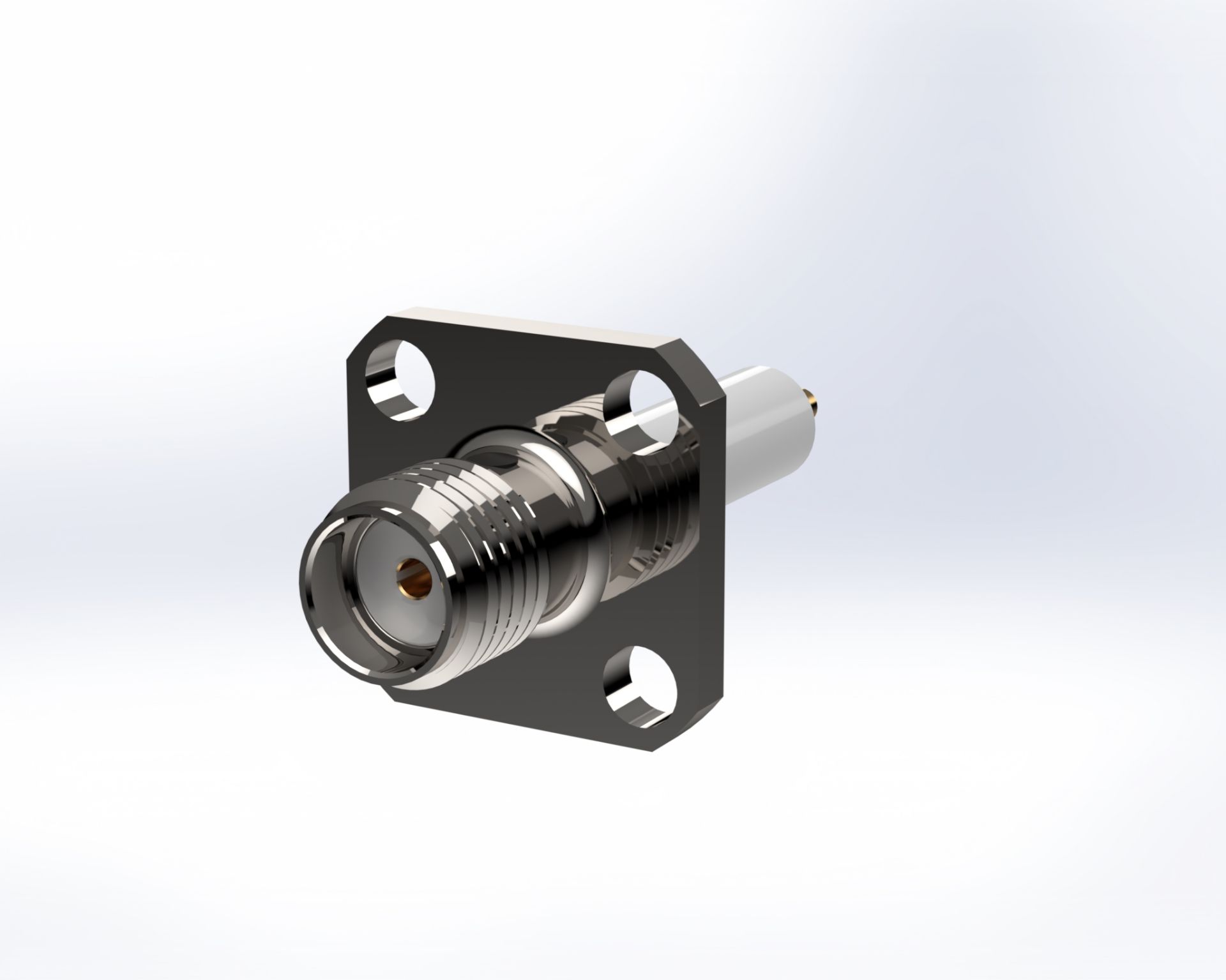

SMA Female 4-Hole Panel Mount Connector, (.500 SQ)

The SMA Female Jack from Amphenol CDI is engineered for reliability and precision in high-frequency signal transmission. Ideal for aerospace, defense, and telecommunications, this connector ensures consistent performance in demanding environments.
SKU: 5220CCSF
The SMA Female Jack from Amphenol CDI is engineered for reliability and precision in high-frequency signal transmission. Ideal for aerospace, defense, and telecommunications, this connector ensures consistent performance in demanding environments.
Distributor Quantity Buy
Contact Us

Amphenol CDI's SMA Female Jack sets the benchmark for robust and precise RF connections. Designed to meet the rigorous demands of aerospace, defense, and telecommunications industries, this connector delivers superior performance with excellent VSWR and low insertion loss. The compact design supports frequencies up to 18 GHz, making it ideal for high-speed applications.

Key Features:

  • Frequency Range: Operates up to 18 GHz for seamless high-frequency applications.
  • Materials: Gold-plated contacts ensure corrosion resistance and optimal signal transmission.
  • Durability: Designed to withstand extreme environments, including vibration and thermal cycling.
  • Ease of Use: Compact and lightweight for easy integration into high-density systems.

Applications:

  • Military and aerospace communication systems.
  • High-frequency test and measurement equipment.
  • Telecommunication and broadband infrastructure.

Choose the SMA Female Jack for your critical applications and experience unparalleled signal integrity and reliability.

Products specifications
Attribute name Attribute value
Impedance 50 ohms
Dielectric Material PTFE
Operating Temperature -65°C to +125°C
Insertion Loss .03 √f(GHz)
Frequency 18 GHz
Contact Termination Terminal
Housing Finish Passivate
Gender Female
Body Orientation Straight
RF Series SMA
RF Connector Specifications
Mounting Style 4 Hole PNL.
Hermetic No
Body Plating Gold
Termination Terminal
Interface Type Straight
Center Contact Plating Gold
Center Contact Material BeCu
Voltage 335 Vrms max @ sea level
Mating Cycles 500 Cycles
Body Material 303 SST
*
*
*
