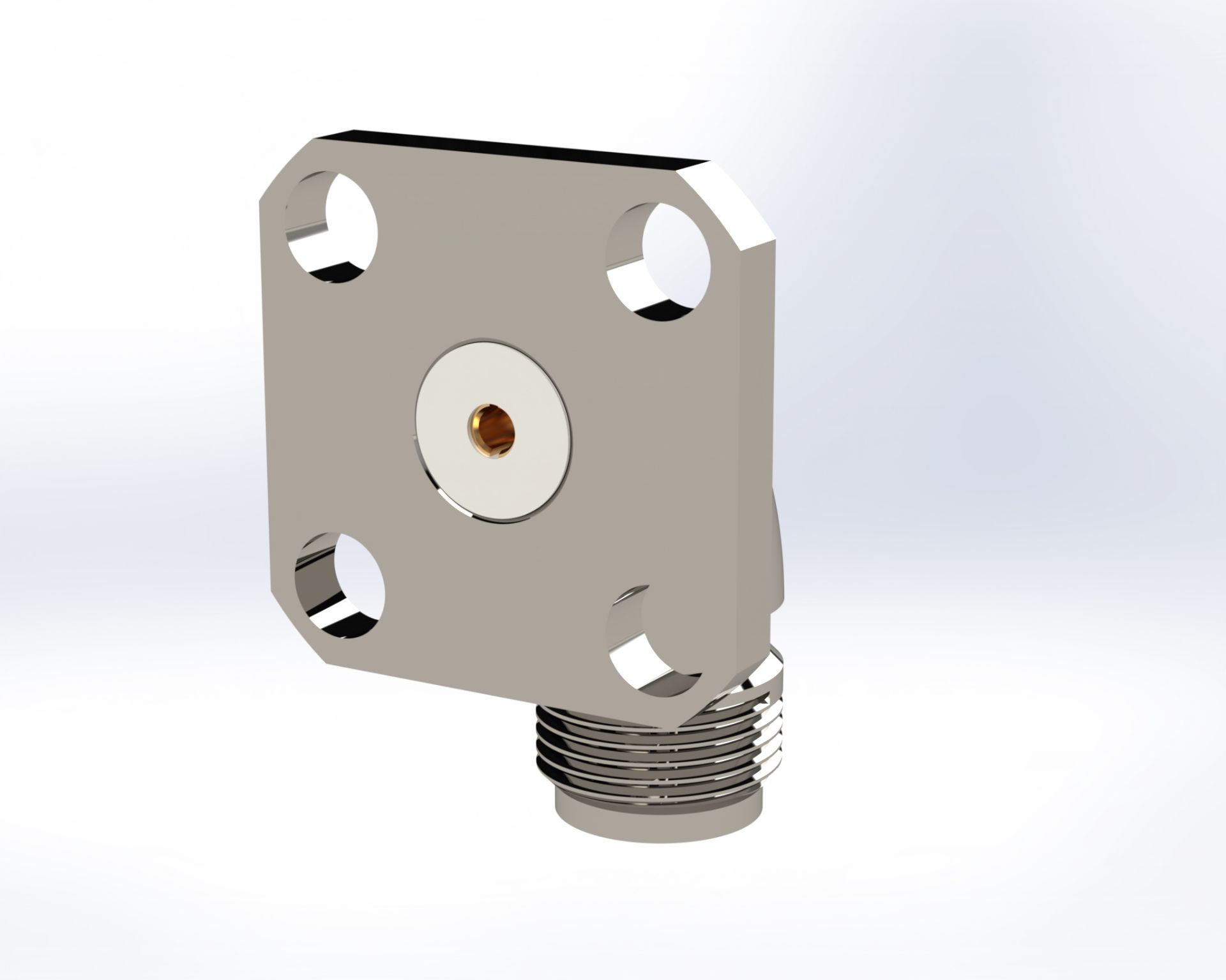

SMA Female Radius R/A Field Replaceable Connector (.036), Passivate

The SMA Female Radius Right Angle to Field Replaceable (.036) PIN from Amphenol CDI is engineered for reliability and precision in high-frequency signal transmission. Ideal for aerospace, defense, and telecommunications, this connector ensures consistent performance in demanding environments.
SKU: 5530-1CCSF
The SMA Female Radius Right Angle to Field Replaceable (.036) PIN from Amphenol CDI is engineered for reliability and precision in high-frequency signal transmission. Ideal for aerospace, defense, and telecommunications, this connector ensures consistent performance in demanding environments.
Distributor Quantity Buy
Contact Us
Products specifications
Attribute name Attribute value
Impedance 50 ohms
Dielectric Material PTFE
Operating Temperature -65°C to +165°C
Insertion Loss .10 dB max @ 6 GHz
Frequency 18 GHz
Contact Termination Field Rep.
Housing Finish Passivate
Gender Female
Body Orientation Right Angle
RF Series SMA
RF Connector Specifications
Mounting Style 4 Hole PNL.
Hermetic No
Body Plating Passivate
Termination Terminal
Center Contact Plating Gold
Center Contact Material BeCu
Voltage 335 Vrms max @ sea level
Mating Cycles 500 Cycles
Body Material 304 SST
*
*
*
Products specifications
Attribute name Attribute value
Impedance 50 ohms
Dielectric Material PTFE
Operating Temperature -65°C to +165°C
Insertion Loss .10 dB max @ 6 GHz
Frequency 18 GHz
Contact Termination Field Rep.
Housing Finish Passivate
Gender Female
Body Orientation Right Angle
RF Series SMA
RF Connector Specifications
Mounting Style 4 Hole PNL.
Hermetic No
Body Plating Passivate
Termination Terminal
Center Contact Plating Gold
Center Contact Material BeCu
Voltage 335 Vrms max @ sea level
Mating Cycles 500 Cycles
Body Material 304 SST
