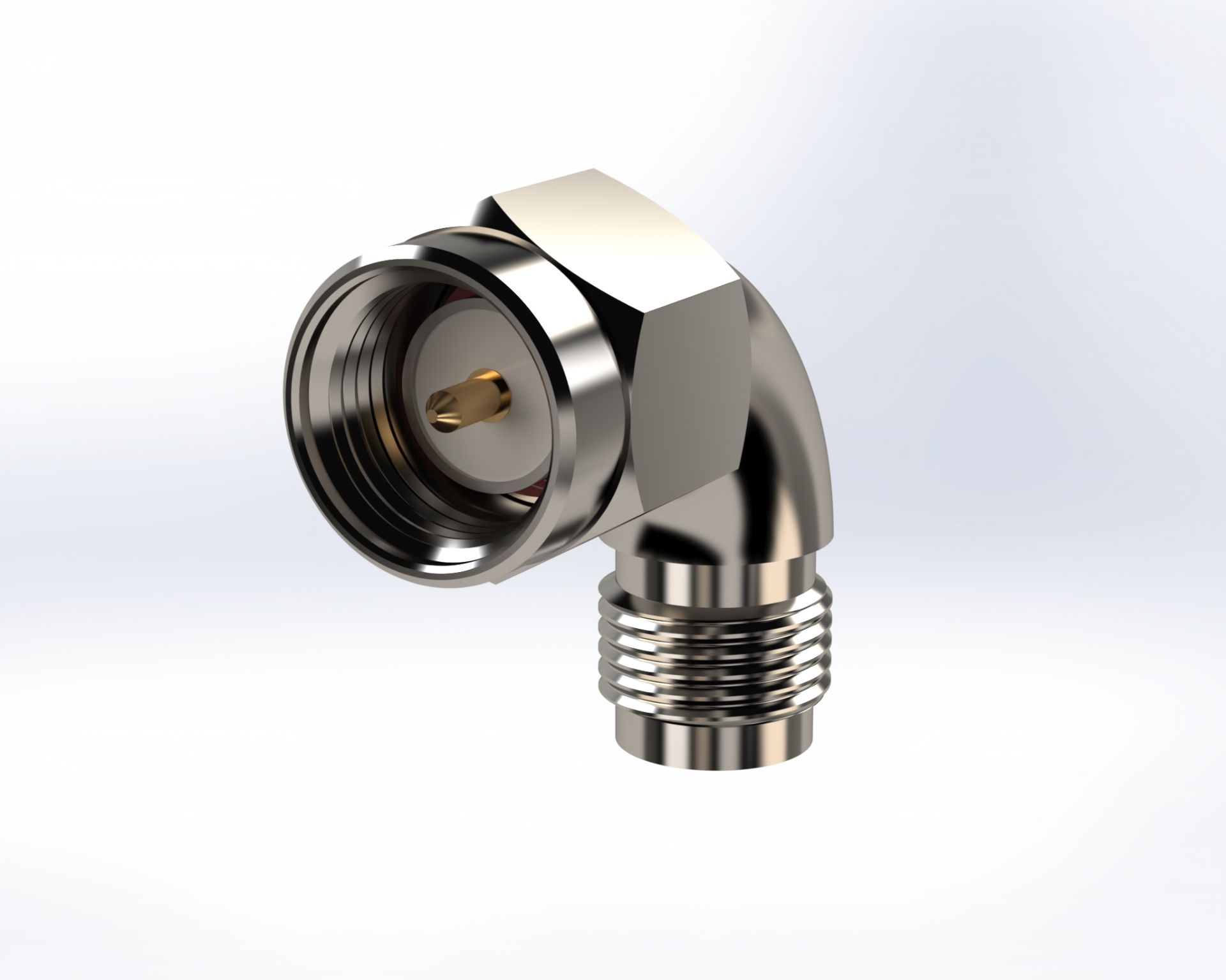

SMA Female to SMA Male R/A Angle Connector Adapter

SKU: 5490CCCESF
Distributor Quantity Buy
Contact Us
Products specifications
Attribute name Attribute value
Frequency 18 GHz
Insertion Loss .20 dB max @ 18GHz
Operating Temperature -65°C to +125°C
Impedance 50 ohms
Gender Male
Gender 2 Female
Body Orientation Right Angle
RF Series SMA
RF Connector Specifications
Center Contact Plating Gold
Body Material 304 SST
Mating Cycles 500 Cycles
Voltage 335 Vrms max @ sea level
RF Adapter Specifications
Hermetic No
Body Plating Gold
*
*
*
Products specifications
Attribute name Attribute value
Frequency 18 GHz
Insertion Loss .20 dB max @ 18GHz
Operating Temperature -65°C to +125°C
Impedance 50 ohms
Gender Male
Gender 2 Female
Body Orientation Right Angle
RF Series SMA
RF Connector Specifications
Center Contact Plating Gold
Body Material 304 SST
Mating Cycles 500 Cycles
Voltage 335 Vrms max @ sea level
RF Adapter Specifications
Hermetic No
Body Plating Gold
