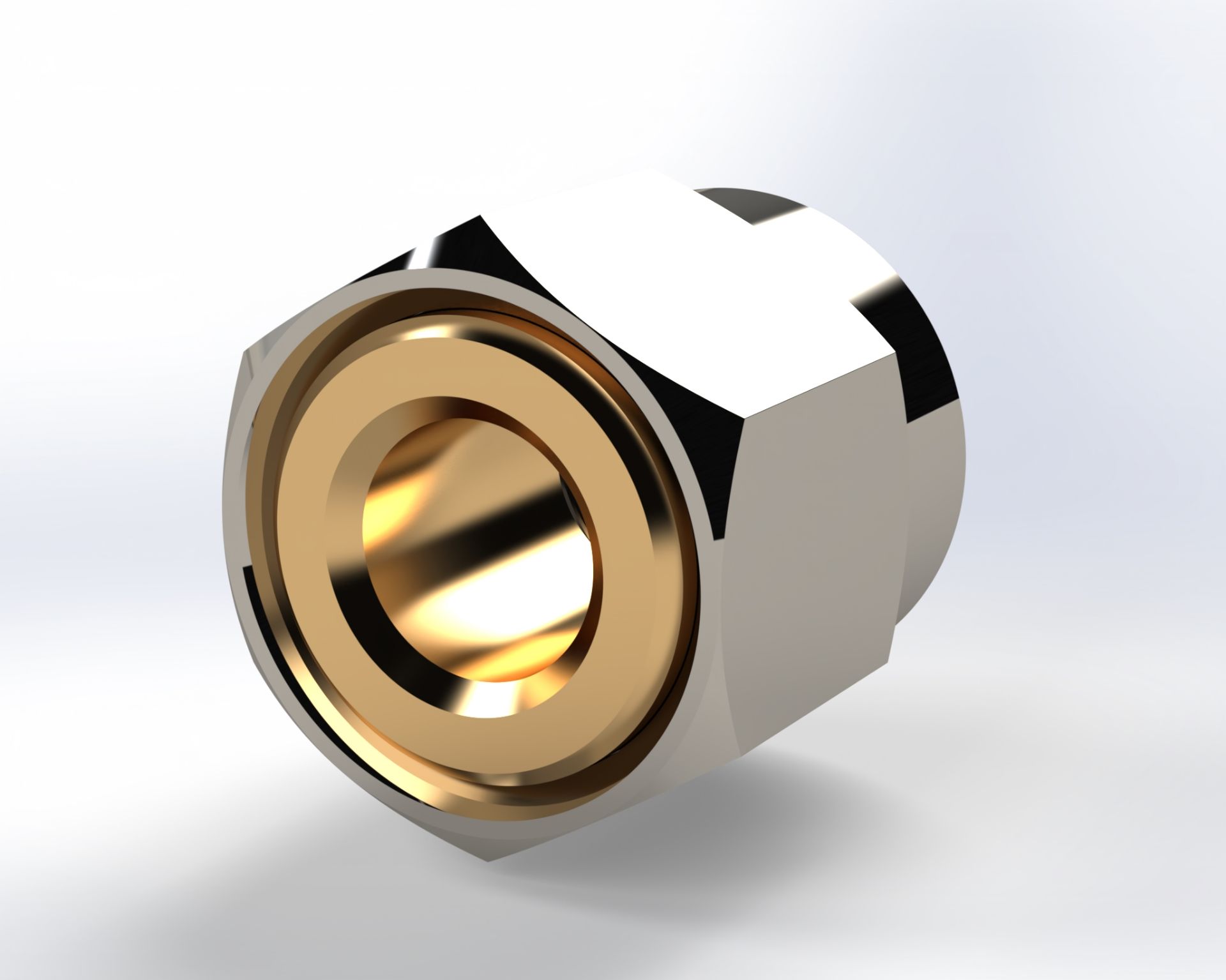

SMA Male Connector for .141 Semi Rigid Cable, Coax Termination

The SMA Male Straight .141 Semi Rigid, Cable Interface from Amphenol CDI is engineered for reliability and precision in high-frequency signal transmission. Ideal for aerospace, defense, and telecommunications, this connector ensures consistent performance in demanding environments.

SKU: 5319SF

Distributor	Quantity	Buy

Specifications
Contact Us

Products specifications

Attribute name	Attribute value
Impedance	50 ohms
Operating Temperature	-65°C to +165°C
Insertion Loss	.03 √f(GHz)
Frequency	18 GHz
Contact Termination	COAX
Housing Finish	Passivate
Gender	Male
Body Orientation	Straight
RF Series	SMA
RF Connector Specifications
Hermetic	No
Body Plating	Gold
Termination	COAX
Cable Termination	.141 S/R
Voltage	335 Vrms max @ sea level
Mating Cycles	500 Cycles
Body Material	303 SST
