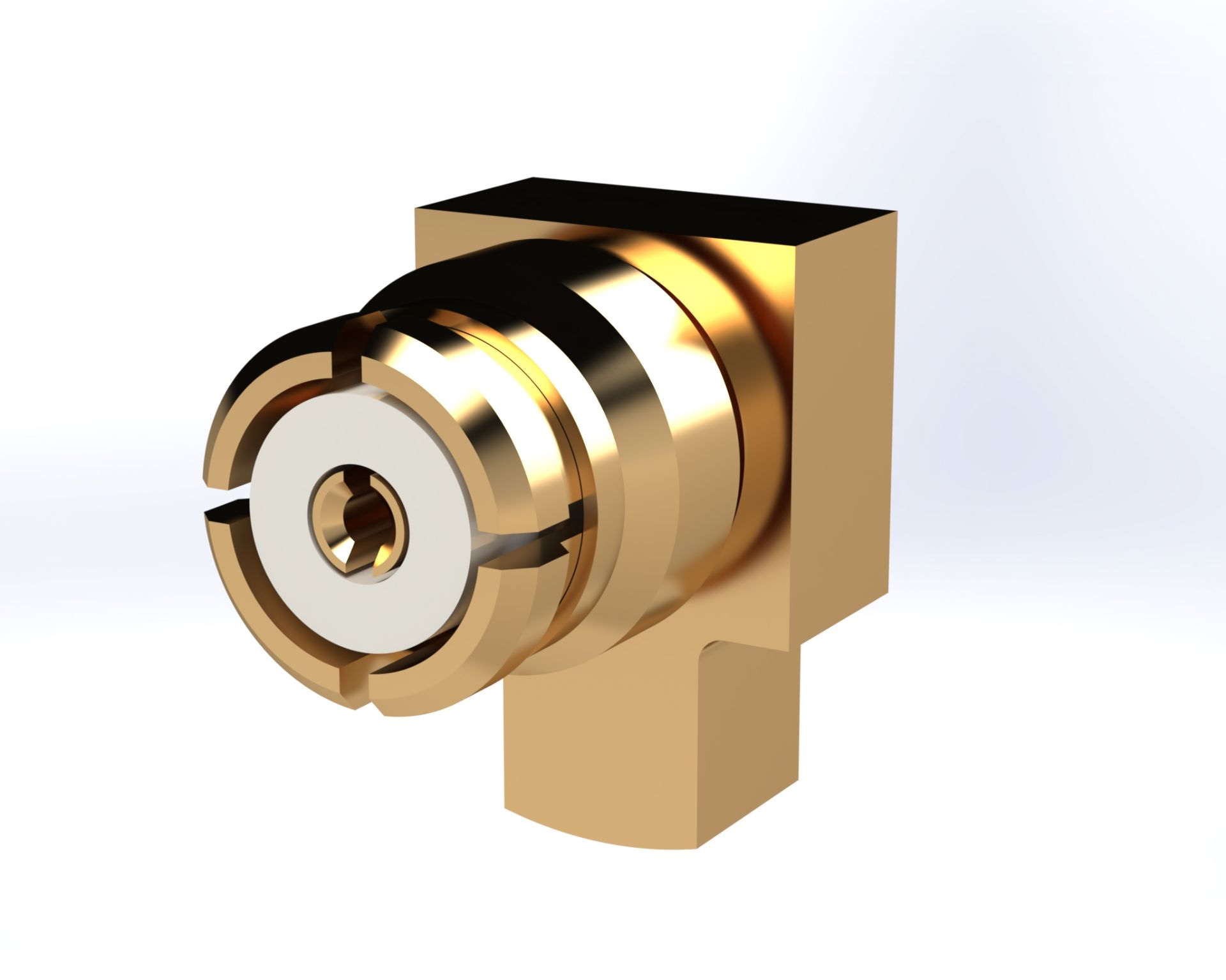

SMP Female Miter R/A Connector for .047 Semi Rigid Cable

The SMP Female Miter Right Angle, Small Body, to .047 Semi Rigid from Amphenol CDI is engineered for reliability and precision in high-frequency signal transmission. Ideal for aerospace, defense, and telecommunications, this connector ensures consistent performance in demanding environments.
SKU: P659-1CC
The SMP Female Miter Right Angle, Small Body, to .047 Semi Rigid from Amphenol CDI is engineered for reliability and precision in high-frequency signal transmission. Ideal for aerospace, defense, and telecommunications, this connector ensures consistent performance in demanding environments.
Distributor Quantity Buy
Contact Us
Products specifications
Attribute name Attribute value
Impedance 50 ohms
Dielectric Material PTFE
Operating Temperature -65°C to +125°C
Insertion Loss .10 dB max @ 18 GHz
Frequency 18 GHz
Contact Termination COAX
Housing Finish Gold
Gender Female
Body Orientation MITER Right Angle
RF Series SMP
RF Connector Specifications
Hermetic No
Body Plating Passivate
Termination Field Rep.
Cable Termination .047 S/R
Center Contact Plating Gold
Center Contact Material BeCu
Body Material BeCu
*
*
*
Products specifications
Attribute name Attribute value
Impedance 50 ohms
Dielectric Material PTFE
Operating Temperature -65°C to +125°C
Insertion Loss .10 dB max @ 18 GHz
Frequency 18 GHz
Contact Termination COAX
Housing Finish Gold
Gender Female
Body Orientation MITER Right Angle
RF Series SMP
RF Connector Specifications
Hermetic No
Body Plating Passivate
Termination Field Rep.
Cable Termination .047 S/R
Center Contact Plating Gold
Center Contact Material BeCu
Body Material BeCu
