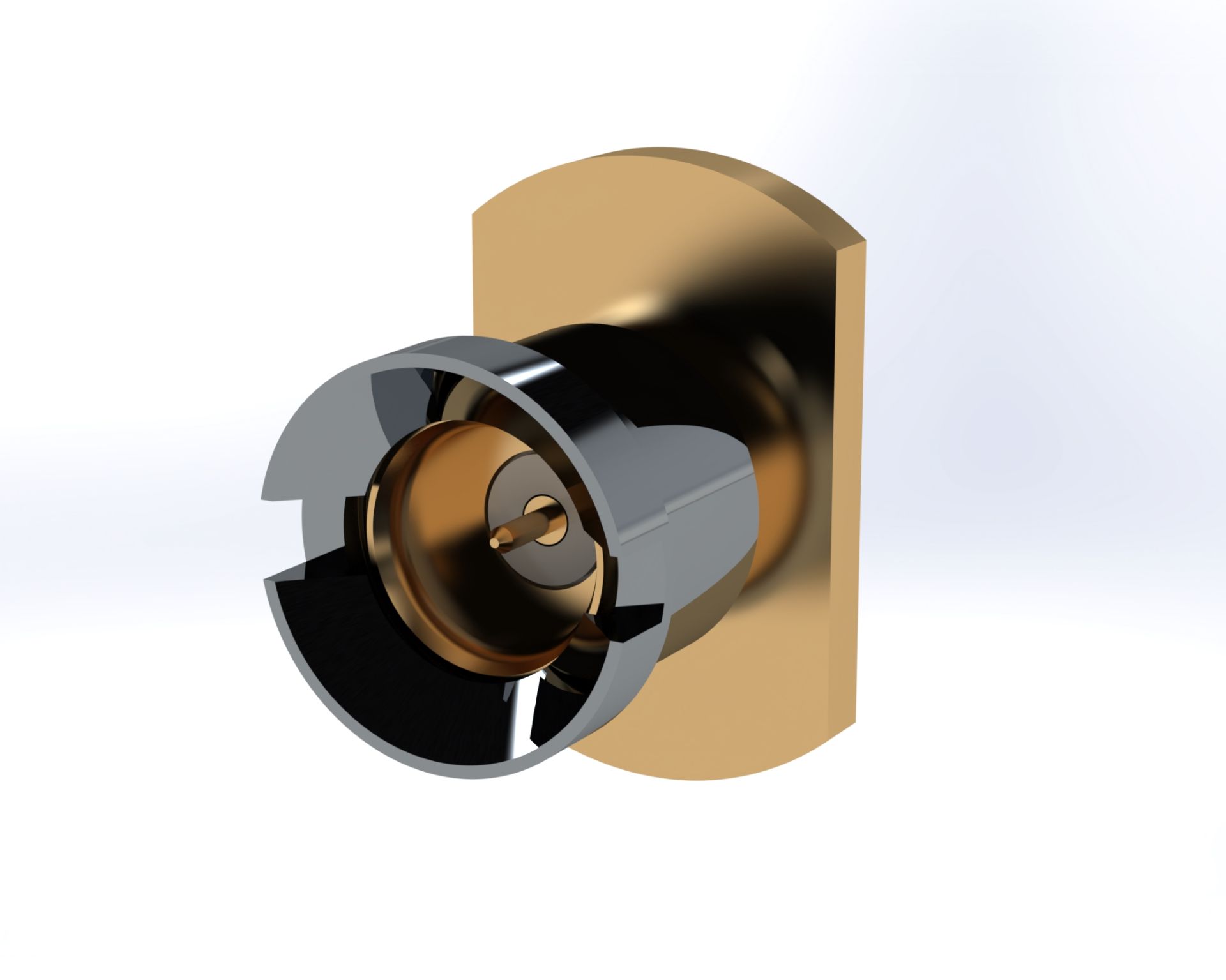

SMP Male Bulkhead Panel Mount Connector for .085 Semi Rigid Cable

The SMP Male Straight Bulkhead Panel Mount for .085 Semi Rigid from Amphenol CDI is engineered for reliability and precision in high-frequency signal transmission. Ideal for aerospace, defense, and telecommunications, this connector ensures consistent performance in demanding environments.
SKU: P662-2CC
The SMP Male Straight Bulkhead Panel Mount for .085 Semi Rigid from Amphenol CDI is engineered for reliability and precision in high-frequency signal transmission. Ideal for aerospace, defense, and telecommunications, this connector ensures consistent performance in demanding environments.
Distributor Quantity Buy
Contact Us
Products specifications
Attribute name Attribute value
Impedance 50 ohms
Dielectric Material PTFE
Operating Temperature -65°C to +165°C
Insertion Loss .10 dB max @ 18 GHz
Frequency 18 GHz
Contact Termination COAX
Housing Finish Gold
Gender Male
Body Orientation Straight
RF Series SMP
RF Connector Specifications
Mounting Style Bulkhead
Detent Catchers Mitt
Hermetic No
Body Plating Passivate
Termination Field Rep.
Cable Termination .085 S/R
Center Contact Plating Gold
Center Contact Material BeCu
Voltage 335 Vrms max @ sea level
Body Material N/A
*
*
*
