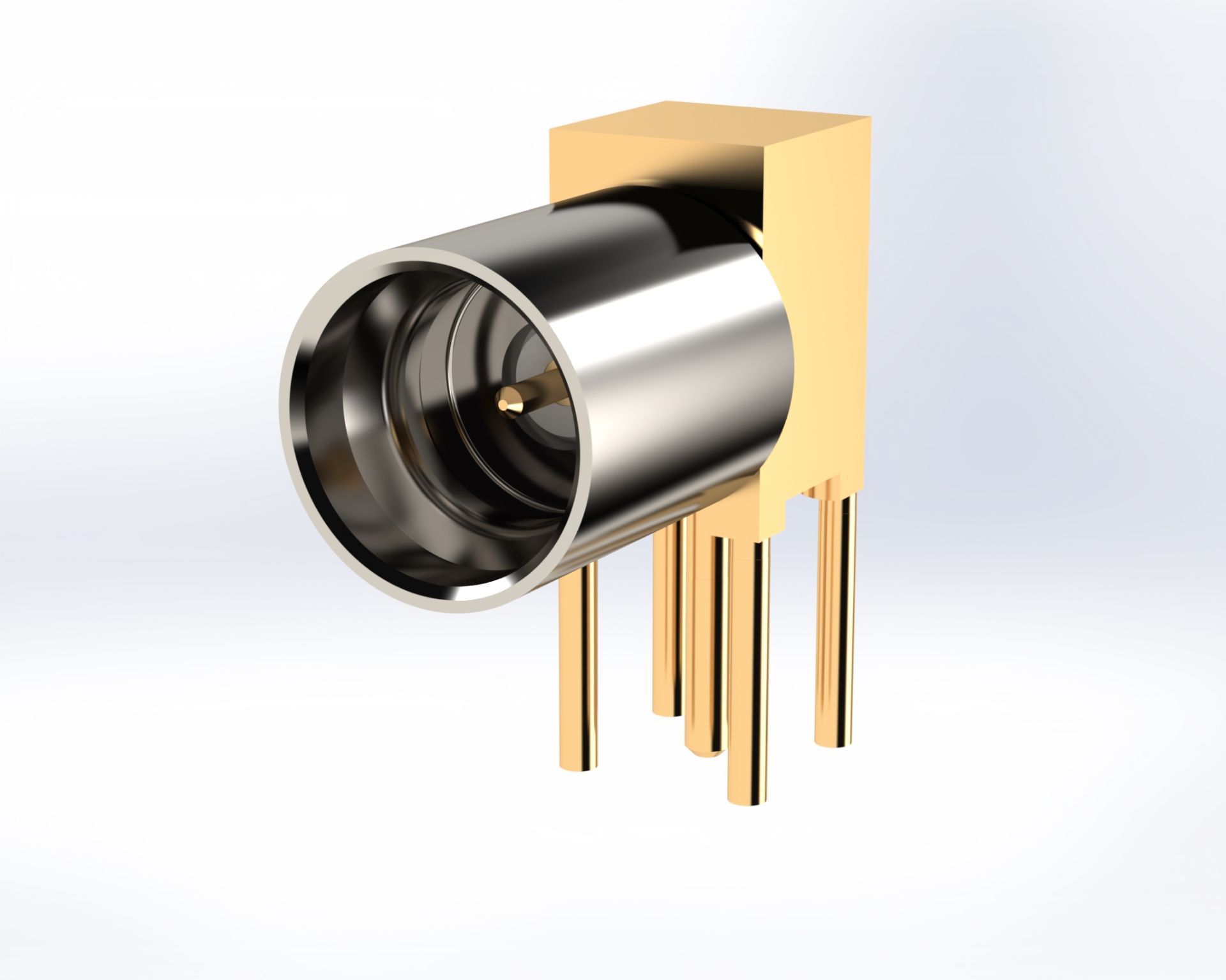

SMP Male R/A PCB Surface Mount Connector (.155)

The SMP Male SWEPT Right Angle, CB Straight Thru Termination from Amphenol CDI is engineered for reliability and precision in high-frequency signal transmission. Ideal for aerospace, defense, and telecommunications, this connector ensures consistent performance in demanding environments.
SKU: P646-3CC
The SMP Male SWEPT Right Angle, CB Straight Thru Termination from Amphenol CDI is engineered for reliability and precision in high-frequency signal transmission. Ideal for aerospace, defense, and telecommunications, this connector ensures consistent performance in demanding environments.
Distributor Quantity Buy
Contact Us
Products specifications
Attribute name Attribute value
Impedance 50 ohms
Dielectric Material PTFE Teflon
Operating Temperature -65°C to +165°C
Insertion Loss .15 dB max @ 12 GHz
Contact Termination PCB
Housing Finish Gold
Gender Male
Body Orientation Right Angle
RF Series SMP
RF Connector Specifications
Mounting Style Thru
Detent Full
Hermetic No
Body Plating Gold
Termination COAX
Interface Type Straight
Center Contact Plating Gold
Center Contact Material BeCu
Voltage 335 Vrms max @ sea level
Mating Cycles 100 cycles min
Body Material 303 SST
*
*
*
Products specifications
Attribute name Attribute value
Impedance 50 ohms
Dielectric Material PTFE Teflon
Operating Temperature -65°C to +165°C
Insertion Loss .15 dB max @ 12 GHz
Contact Termination PCB
Housing Finish Gold
Gender Male
Body Orientation Right Angle
RF Series SMP
RF Connector Specifications
Mounting Style Thru
Detent Full
Hermetic No
Body Plating Gold
Termination COAX
Interface Type Straight
Center Contact Plating Gold
Center Contact Material BeCu
Voltage 335 Vrms max @ sea level
Mating Cycles 100 cycles min
Body Material 303 SST
