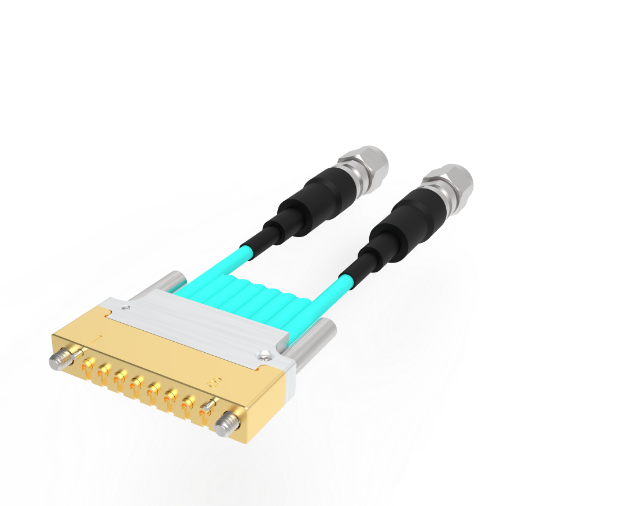

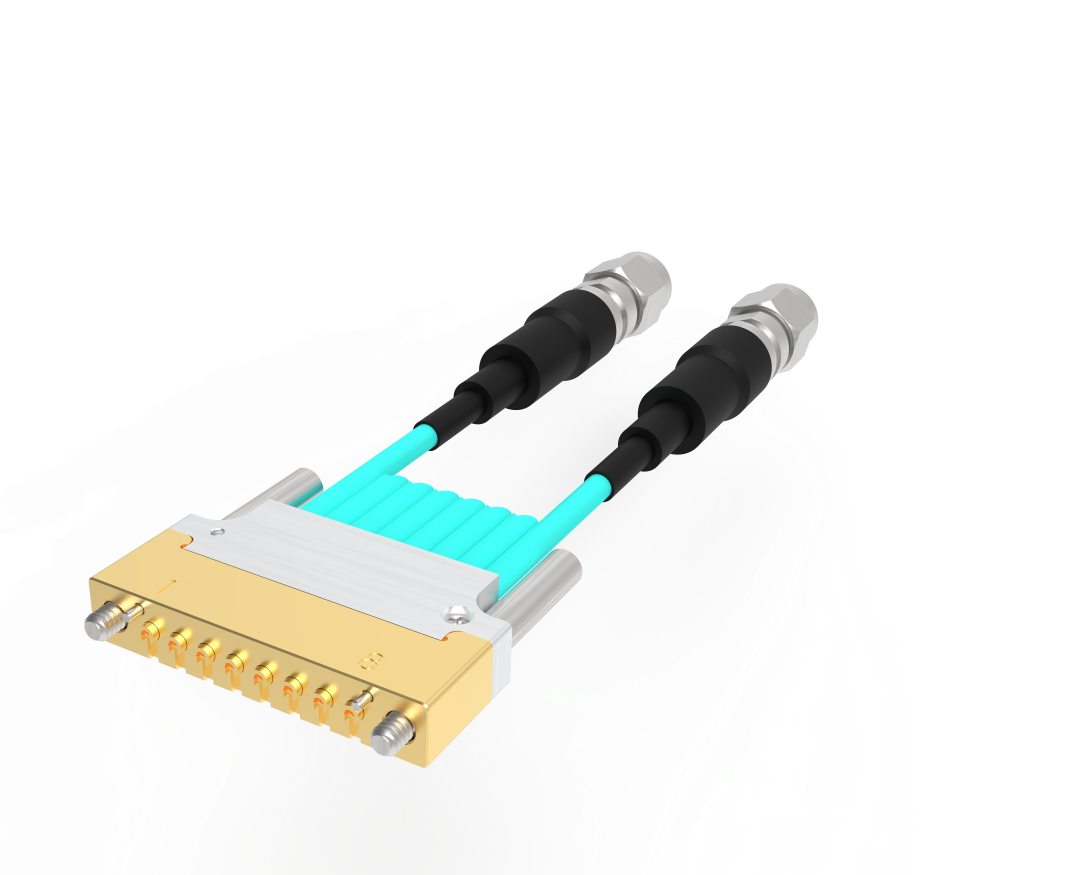

8 channel Vertical Launch CoreHC Solderless Ganged Interconnect to 2.92mm Male. 31cm long

SKU: TM7SSH28S9MS031C

8 Channel, Vertical Launch, Solderless CoreHC to 2.92mm Male, 31cm Length, +/-2ps phase matched

Distributor	Quantity	Buy

Products specifications

Attribute name	Attribute value
Category	Cable Assembly, Coaxial Cables (RF)
Packaging	Bag - Single
Contact Termination	Compression
Number of Ports	16
Housing Finish	Gold
RF Connector Specifications
Gender	Male to Male
Impedance	50 ohms
Mounting Style	Free Hanging (In-Line)
Max Frequency	40 GHz
Center Contact Material	BeCu
Body Material	N/A
Center Contact Plating	Gold
Dielectric Material	PTFE
Voltage	N/A
Mating Cycles	1000 cycles min
Insertion Loss	N/A
Operating Temperature	-65°C to +125°C
T & M Specifications
Series	CoreHC
Connector Style	CoreHC to 2.92 mm
Connector Type	N/A
Shield Termination	Threaded
Fastening Type	Threaded
Features	Field Replicable, Compliant Mount to PCB
