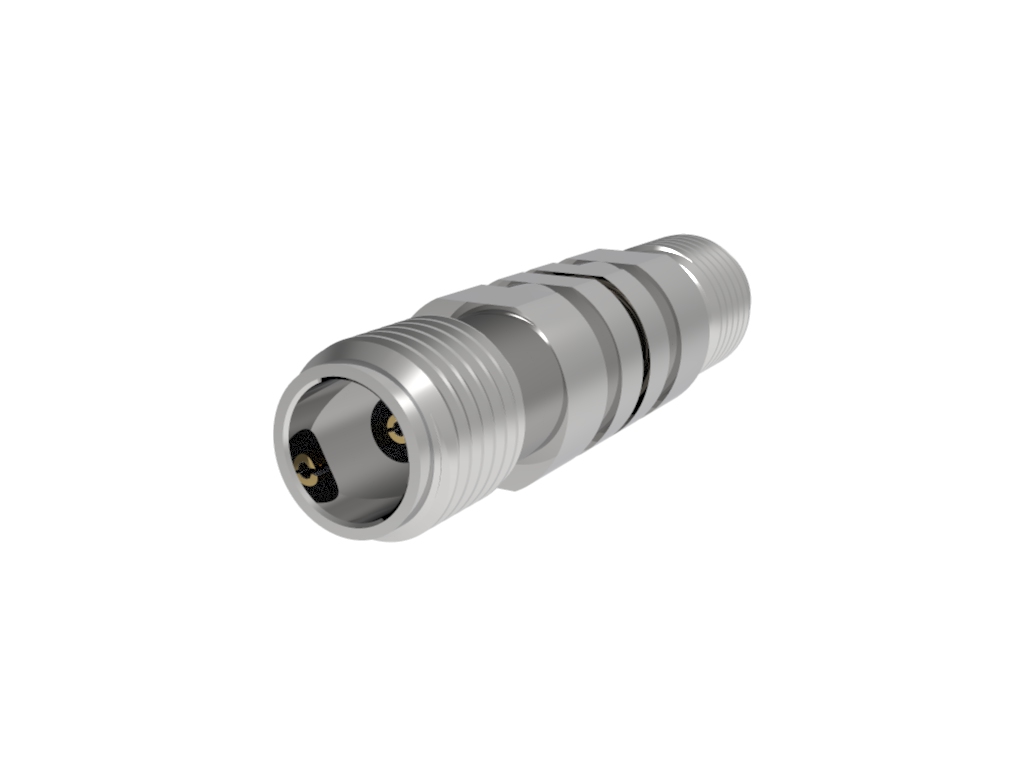

Coaxial Adapter 2.4mm Female(Jack) to 2.4mm Female(Jack)

Adapter Coaxial Connector 2.4mm Jack, Female Socket To 2.4mm Jack, Female Socket, 50 Ohms
SKU: TMA-4FS-4FS-00
Adapter Coaxial Connector 2.4mm Jack, Female Socket To 2.4mm Jack, Female Socket, 50 Ohms
Distributor Quantity Buy
Contact Us
Products specifications
Attribute name Attribute value
Category Coaxial Connector (RF) Adapters
Packaging Bag - Single
Contact Termination Compression
Housing Finish Passivated SST
RF Connector Specifications
Gender Female to Female
Impedance 50 ohms
Mounting Style Free Hanging (In-Line)
Max Frequency 50 GHz
Center Contact Material BeCu
Body Material SST
Center Contact Plating Gold
Dielectric Material PTFE
Operating Temperature -55°C to + 85°C
Voltage 500 Vrms max @ sea level
Mating Cycles 500 cycles min
Insertion Loss 0.2 dB
T & M Specifications
Series In-Series
Connector Style 2.4 mm to 2.4 mm
Shield Termination Threaded
Fastening Type Threaded
*
*
*
