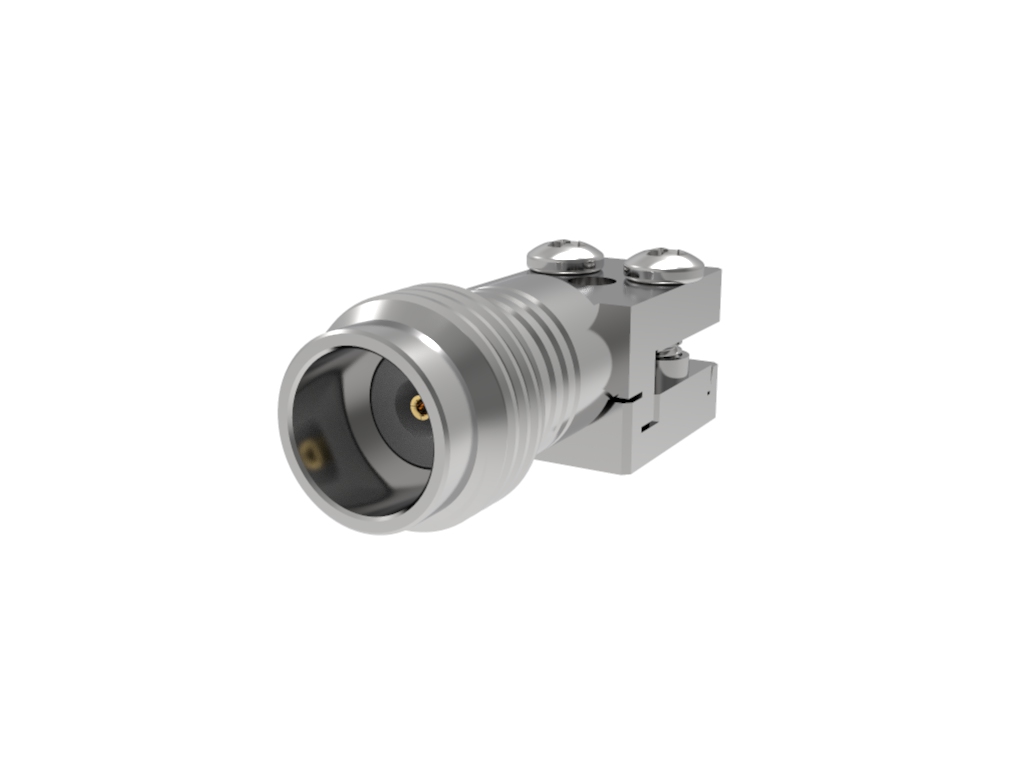

2.4mm Female Edge Launch Solderless, Narrow Body

SKU: TMB-E4F2-1L1-01

2.4mm Female, Jack, Edge Launch, Solderless PCB Compression Mount Connector, 2 hole, Narrow Body

Distributor	Quantity	Buy

Products specifications

Attribute name	Attribute value
Category	Coaxial Connector (RF)
Packaging	Tray
Contact Termination	Compression
Housing Finish	Passivated SST
Number of Ports	1
RF Connector Specifications
Gender	Female
Impedance	50 ohms
Mounting Style	Surface
Max Frequency	50 GHz
Center Contact Material	BeCu
Body Material	SST
Center Contact Plating	Gold
Dielectric Material	PTFE
Operating Temperature	-55°C to + 85°C
Voltage	500 Vrms max @ sea level
Mating Cycles	500 cycles min
Insertion Loss	0.2 dB
T & M Specifications
Series	2.4 mm
Connector Style	2.4 mm
Shield Termination	Threaded
Fastening Type	Threaded
Connector Type	Jack, Female Socket
Features	Field Replicable, Compliant Mount to PCB
