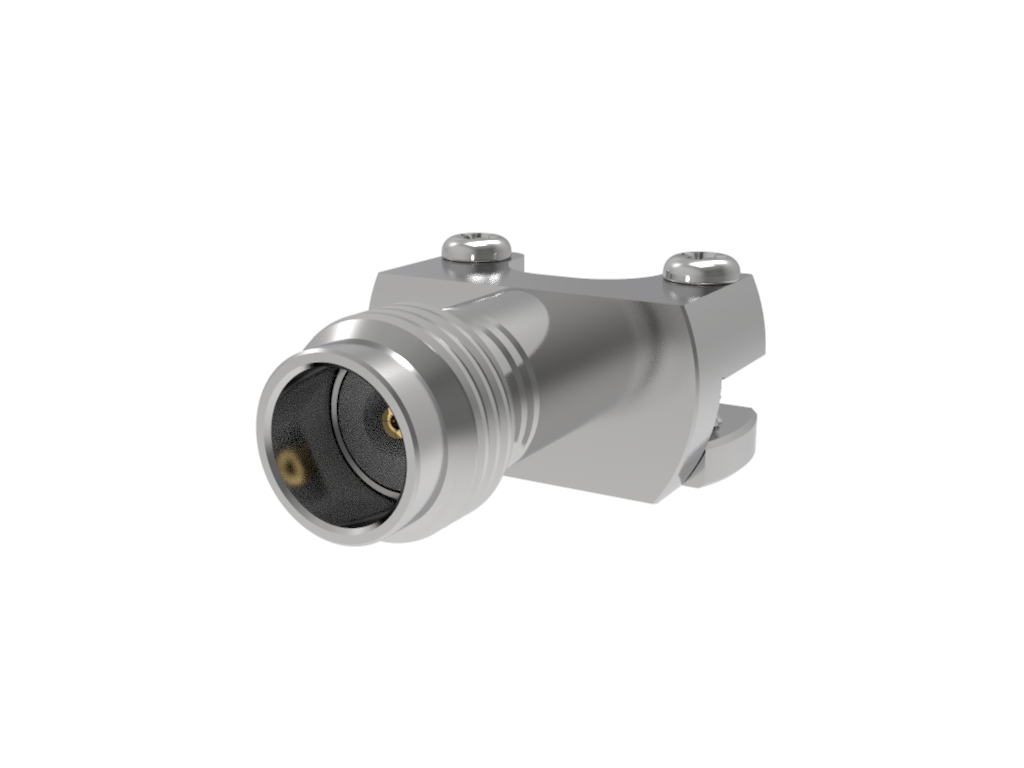

2.4mm Female Edge Launch Solderless

2.4mm Female, Jack, Edge Launch, Solderless PCB Compression Mount Connector, 2 hole
SKU: TMB-E4F2-1L1
2.4mm Female, Jack, Edge Launch, Solderless PCB Compression Mount Connector, 2 hole
Distributor Quantity Buy
Contact Us
Products specifications
Attribute name Attribute value
Packaging Tray
Contact Termination Compression
Impedance 50 ohms
Frequency 50 GHz
Housing Finish Passivated SST
Dielectric Material PTFE
Operating Temperature -55°C to + 85°C
Insertion Loss 0.2 dB
Number of Ports 1
Gender Female
RF Series 2.4 mm
RF Connector Specifications
Mounting Style Surface
Center Contact Material BeCu
Body Material SST
Center Contact Plating Gold
Voltage 500 Vrms max @ sea level
Mating Cycles 500 Cycles
T & M Specifications
Shield Termination Threaded
Fastening Type Threaded
Connector Type Jack, Female Socket
Features Field Replicable, Compliant Mount to PCB
*
*
*
